Personal Rescue Device
User Instruction Manual

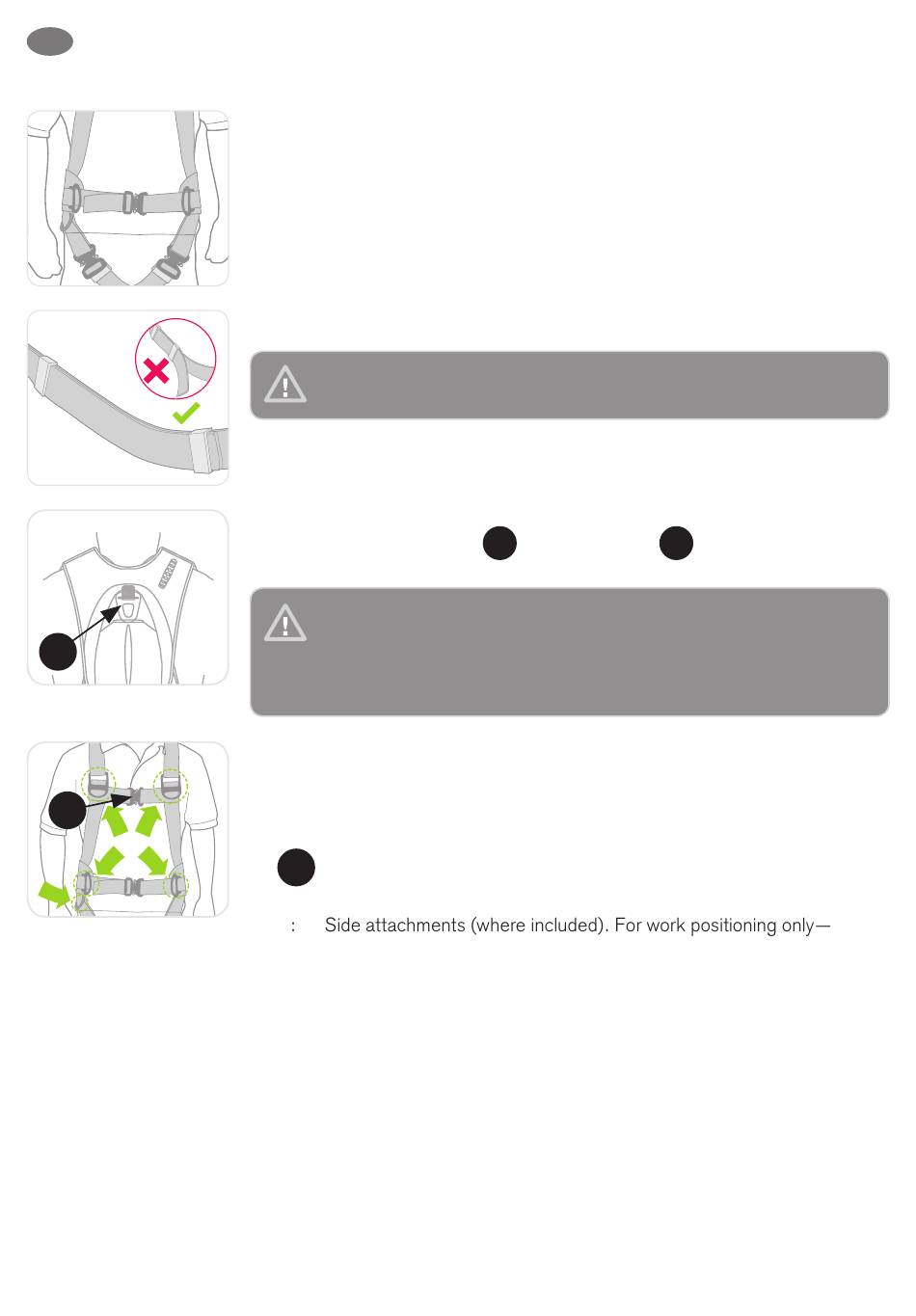

Figure 15
Figure 16
Figure 17
A
1
Figure 18
A
2
C C
E E
D
8 Where included (RH3 harness only), connect the waist belt buckle at
the front, and adjust the strap by pulling the strap through the buckle as
necessary to achieve a snug fit (See Figure 15).
9 Use the plastic sliders to secure any free strap. (See Figure 16).
WARNING! Ensure that no harness straps are twisted.
10 Connect the karabiner of the energy absorbing lanyard to the fall arrest
attachment point marked
attachment point to operate the PRD rescue function.
WARNING! Do not connect to any point of the
harness or PRD other than those clearly marked with
the letter 'A'. The PRD rescue function will operate only
on the rear D-Ring (See Figure 17 and Section 7.2).
11 C: Plastic breakaway lanyard stowage points. Not a fall arrest
attachment point.
D: Stainless steel toolbag attachment point. Not a fall arrest
attachment point.
A
: Front (chest) attachment. For climbing/fall arrest only
2
(See Section 7.2).
E
not a fall arrest attachment point (See Section 7.3).
(See Figure 18).
When the harness is worn for extended periods of time, check straps and
adjustment buckles regularly for loosening or disengagement. A snug fit
should be maintained throughout use.
A
(See Figure 17).
1
16
