6
18mm
Fig. 4
2 1
Fig. 5
06.14

OPERATING INSTRUCTIONS

B
15mm
B

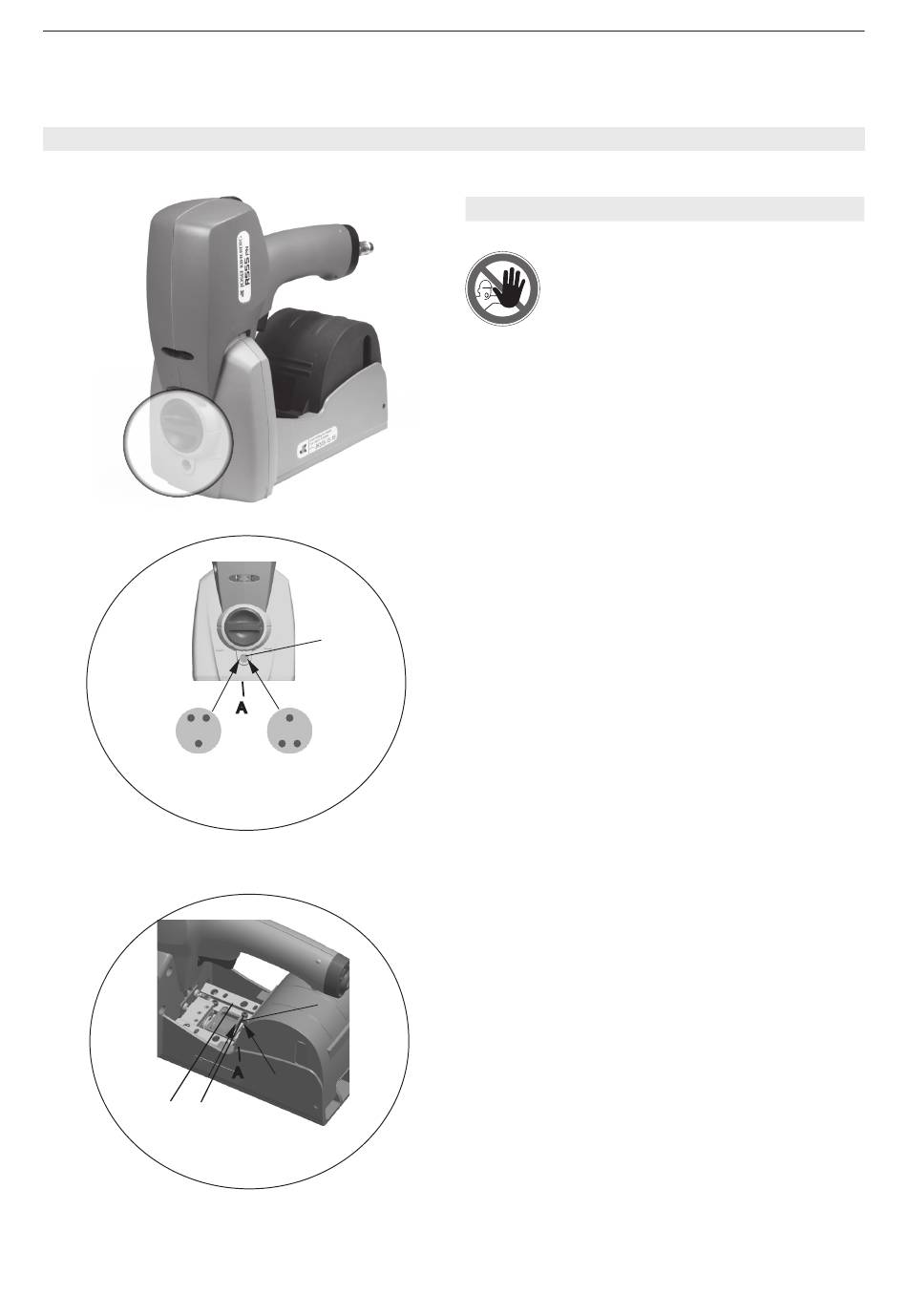

6.1 ADJUST THE STAPLE LEG LENGHT
Be sure that the tool is not pointing at
yourself or anyone else when connec-
ting it to the compressed air line.
The stapler is adjustable for 15 or 18 mm staples.
The stapler setting for a different staple leg length is
altered as follows. Start by adjusting the depth of sta-
pling for deep clinching (=) as shown in Fig. 5.
– With a 2,5 mm Allen key, unscrew locking screw
(A) two turns.
– With a screw driver, adjust screw (B) to 15 or 18
mm leg length (Fig. 4)
– Tighten the locking screw.
– Adjust the strap guides (Fig. 5) inner position =
15 mm and outer = 18 mm leg length.
Josef Kihlberg R555PN
7
