Getting Started

Hooking up the system

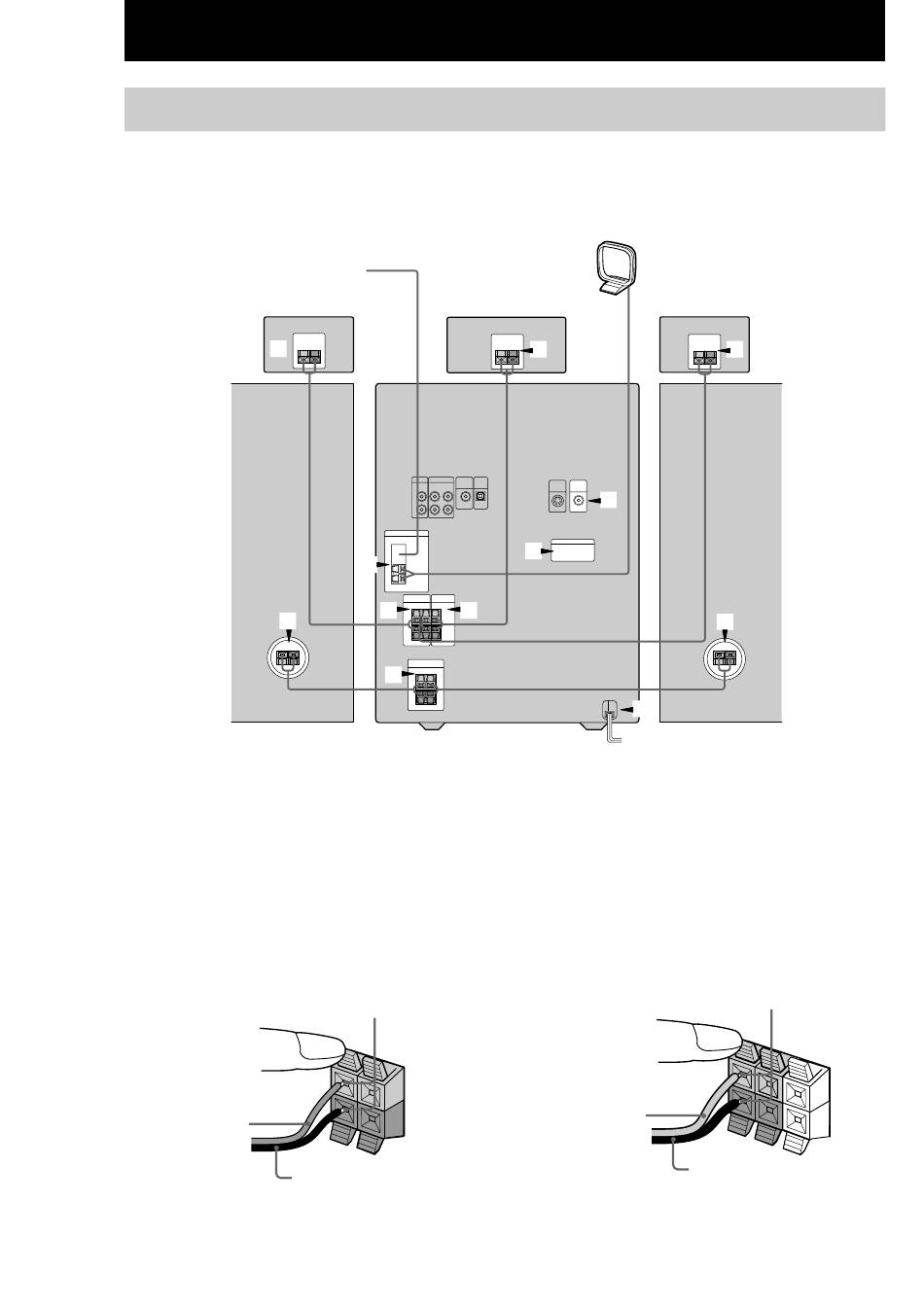

Do the following procedure 1 to 8 to hook up your system using the supplied cords and
accessories.
1 Connect the front speakers.
Connect the speaker cords to the FRONT
SPEAKER jacks (MHC-DP1000D) or
SPEAKER jacks (MHC-DP900D).
Insert only the stripped portion.
Red/Solid (3)
GB
10
FM antenna
Rear speaker*
(Right)
2
4
2
1
1
Front speaker
(Right)
R
L
+
–
Black/Stripe (#)
AM loop antenna
Center speaker*
3
5
6
3 3
2 Connect the rear speakers.
(MHC-DP1000D only)
Connect the speaker cords to the REAR
SPEAKER jacks.
Insert only the stripped portion.
Gray/Solid (3)
Rear speaker*
(Left)
2
1
7
Front speaker
(Left)
* MHC-DP1000D only.
R
L
+
Black/Stripe (#)
+
–
