Follow the steps outlined in this section to unpack and assemble your pressure washer.
If you have any questions regarding the unpacking or assembly of your pressure washer,
please have your model number and serial number ready, then contact customer support at
1-877-362-4271 or email cservice@fna-group.com.
1. Place the shipping carton on a solid, flat surface.
2. Carefully cut the top of the carton open.
3. Carefully cut each corner of the carton from top to bottom.
4. Lay each side of the carton flat on the ground.
5. Remove the contents of the carton.

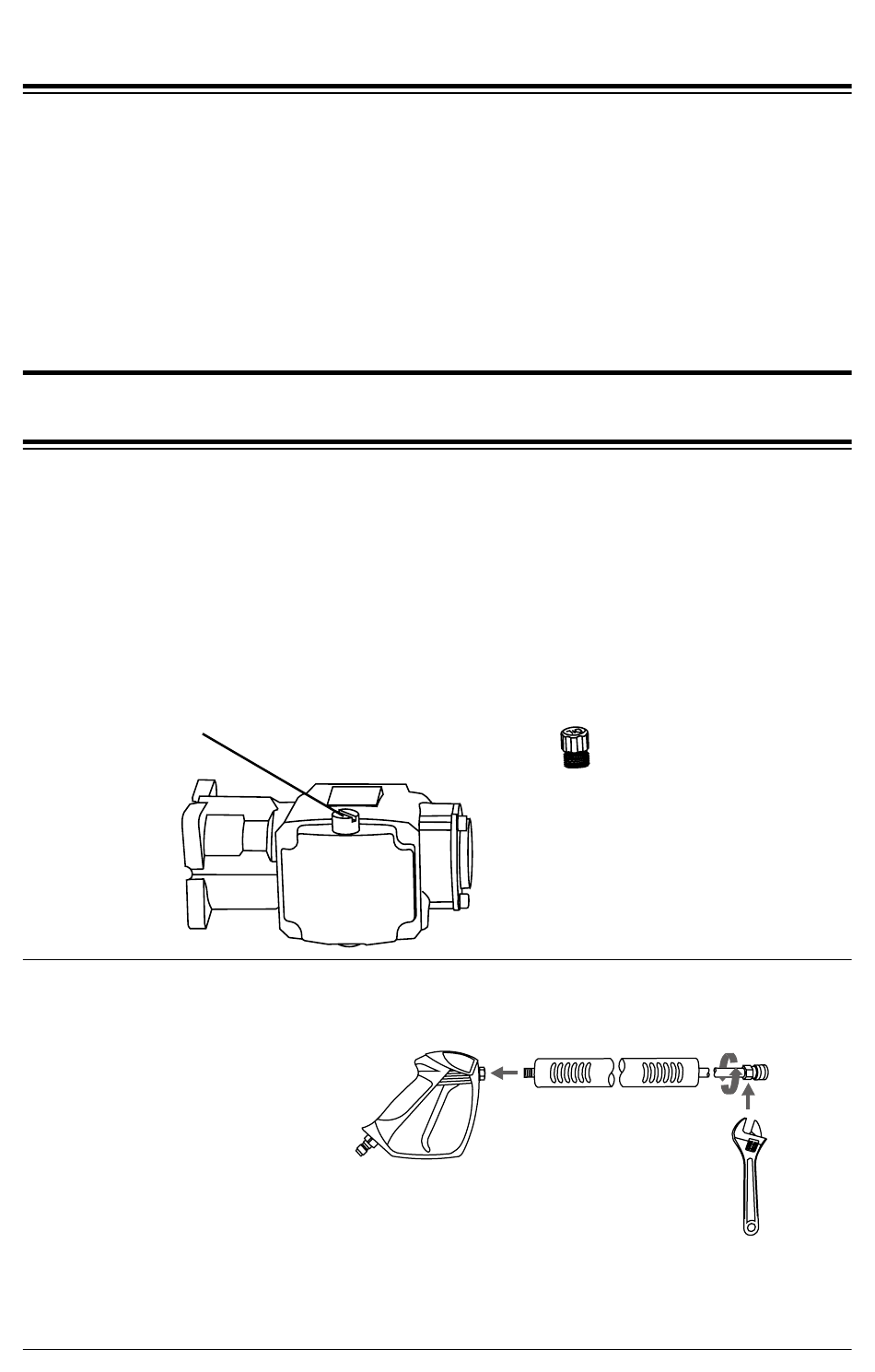

Adding the pump breather cap

A RED shipping plug is in the pump that must be replaced with a BLACK breather cap.
The plug is easy to replace with the following steps:
1. Using a bladed screw driver, remove the RED shipping plug from the top of the pump.
2. Hand thread the BLACK breather cap into the pump.
3. Snug the cap with your fingers.
RED shipping plug

Assemble the spray gun

Hand thread the lance clockwise
into the gun. Be careful not to
cross-thread the gun and lance.
Using an adjustable wrench,
tighten the lance by placing the
wrench on the flats of the nozzle
quick-connector.
WARNING! The threads on the lance and gun coupler can be easily cross threaded resulting
in an improper assembly. An improper assembly of the gun and lance can result in personal
injury. Do not use if the threads on the gun coupler and or lance are cross threaded.
Page 7

UNPACKING

ASSEMBLY

(if applicable)
BLACK breather cap
