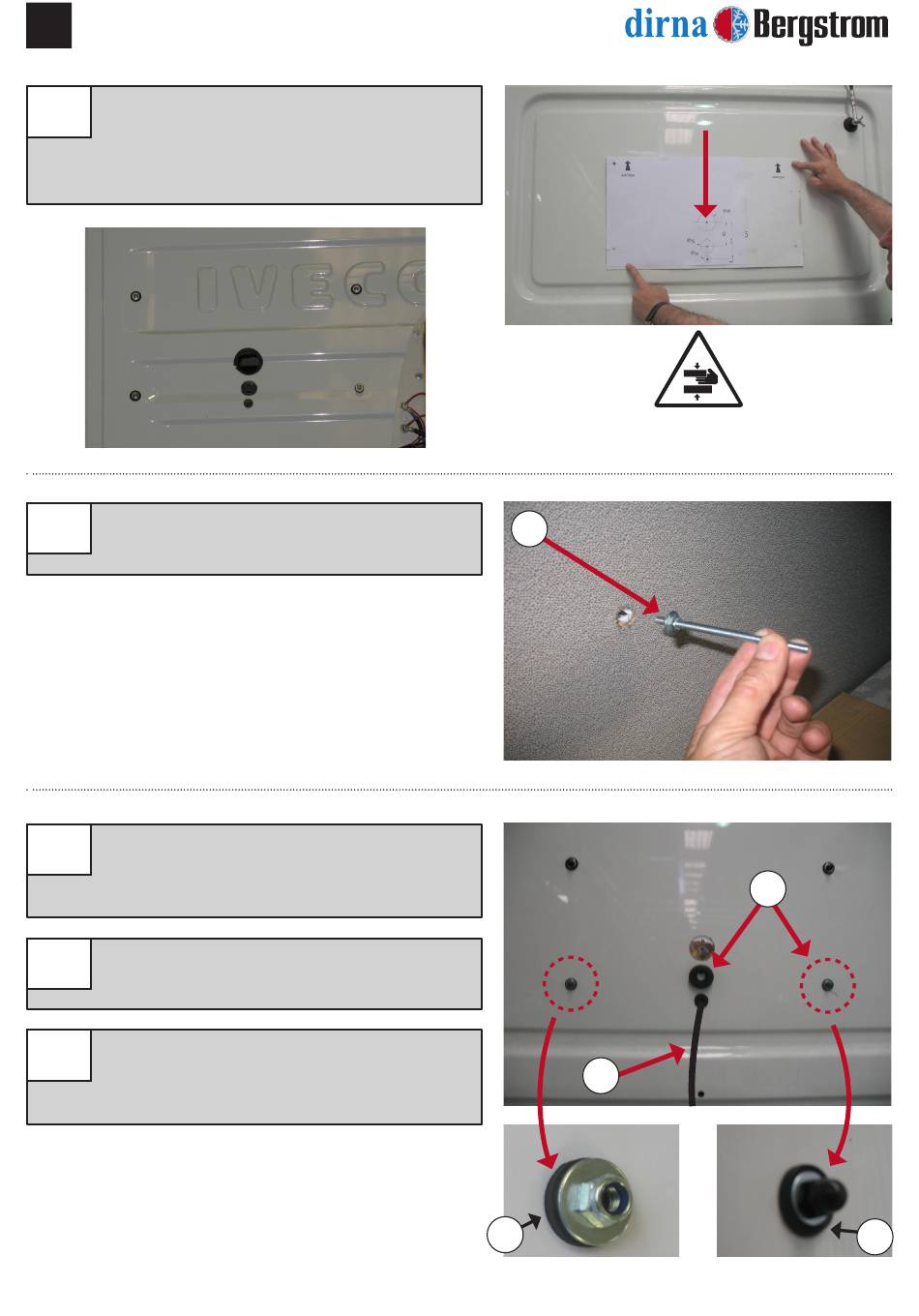

CABIN EXTERIOR:
Introduce the template level using the
exterior, taking as reference the Ø4 bore
made, mark and make the remaining bores.
4
Introduce M6 studs in the interior with a nut
and washer as indicated.
5
Secure the exterior with a rubber washer, a
flat washer and a self-locking nut, securing
at the bottom with a socket wrench of 10.
6
Position bushing and nut covers.
7
Pass the waste water pipe through the bore
of Ø19, through the bushing, towards the
inside of the cabin.
