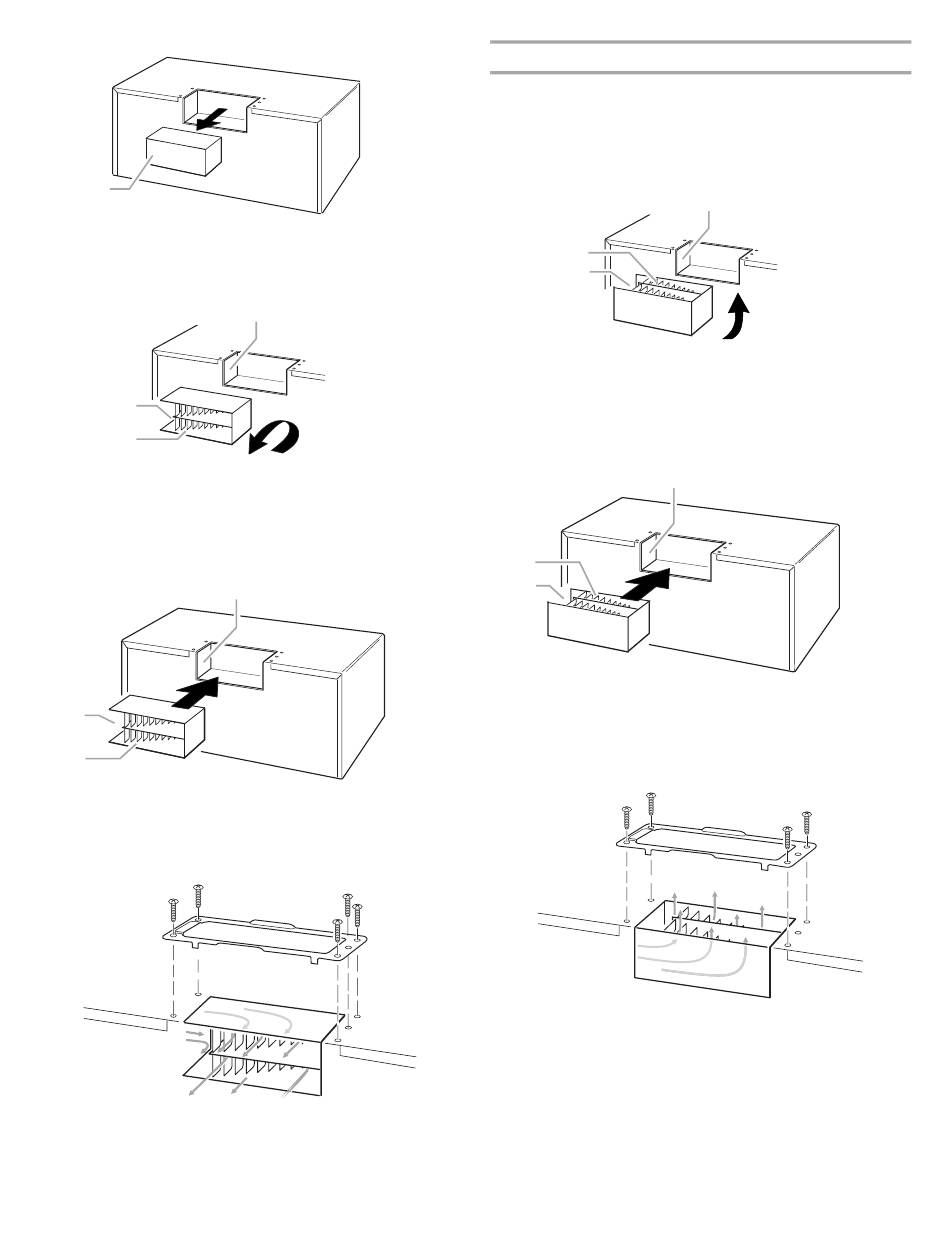

3. Slide air deflector out of microwave oven.
A
A. Air deflector
4. Rotate air deflector front to back so that deflector vanes face
the back of the microwave oven, and the exhaust port (open
end) of air deflector aligns with microwave oven exhaust port.
B
C
A. Microwave oven exhaust port
B. Air deflector exhaust port (open end)
C. Deflector vanes
5. Slide air deflector into the back of the microwave oven as
shown, making sure its exhaust port (open end) aligns with the
microwave oven exhaust port.
B
C
A. Microwave oven exhaust port
B. Air deflector exhaust port (open end)
C. Deflector vanes
6. Reattach damper plate with screws
6
A
A
.
Roof Venting Installation Only
1. Repeat Step 1 from "Wall Venting Installation Only."
2. Repeat Step 2 from "Wall Venting Installation Only."
3. Repeat Step 3 from "Wall Venting Installation Only."
4. Rotate air deflector so that deflector vanes face the top of the
microwave oven, and the exhaust port (open end) of air
deflector aligns with microwave oven exhaust port.
B
C
A. Microwave oven exhaust port
B. Deflector vanes
C. Air deflector exhaust port (open end)
5. Slide air deflector into the back of the microwave oven as
shown, making sure its exhaust port (open end) aligns with the
microwave oven exhaust port.
A
B
C
A. Microwave oven exhaust port
B. Deflector vanes
C. Air deflector exhaust port (open end)
6. Reattach damper plate at corners with 4 screws. Save the fifth
screw for later use.
A
