5 - ELECTRICAL CONNECTION

Caution! Before proceeding with electric connection, you need to ensure that voltage meets the
specifications shown in the CE plate.
Ensure that the power supply line and the electric system cable sections are adequate for the coffee
dosing grinder power intake (see chapter 4 – technical specifications table). Provide for an earth
connection in compliance with the regulations in force. In this regard, ensure that the supply cable is
efficient, and that it meets the national and European safety standards.
The user is to arrange the appliance power supply and protect the line by means of a safety switch
(cut-out box) meeting the regulations in force in the country in question.
Connect the supply cable to the electric line by means of a plug; on the other hand, in the event
of a fixed installation, a multipolas switch will have to be arranged for network separation, with a
distance between contacts of at least 3 mm. For voltage change, please refer to the diagram shown
on the main switch box.
The yellow/green coloured cable should be COMPULSORILY connected to the premises earthing
system.
6 - HOPPER INSTALLATION AND CONNECTIONS

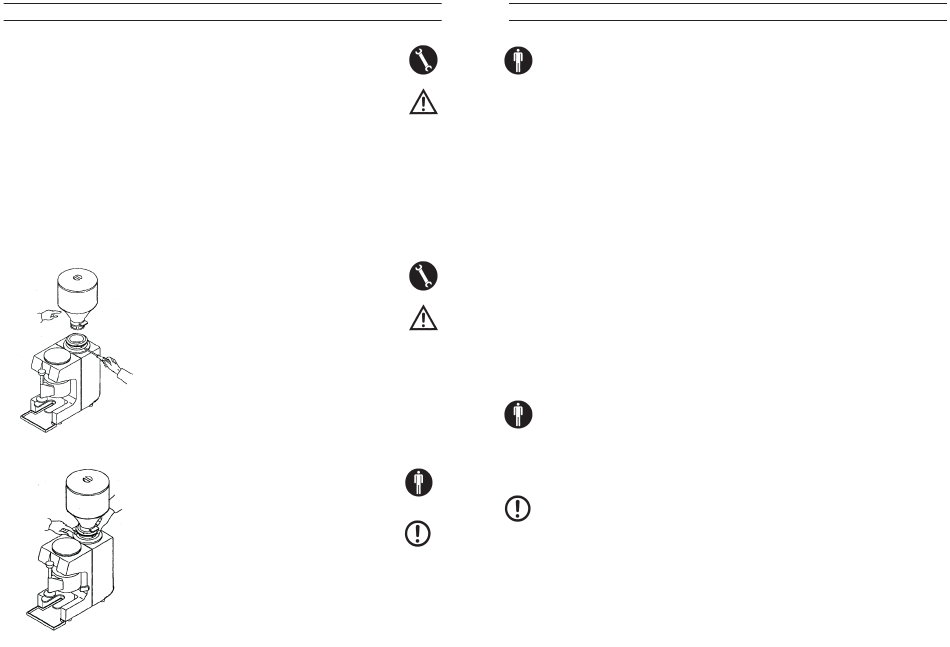

Fit the hopper (4) into the regulation ring nut (8) and fasten it
with the screw provided (6). Ensure that the power socket is
adequately grounded and that the switch (1) is on the 0 "off"
position; then insert the supply cable plug into the socket.
Press the switch (1) so as to place it on the I position, as
well as pressing the operation button (2) and check no-load
operation of the equipment.

7 - STARTING THE EQUIPMENT

- Remove the hopper lid (5) and introduce the whole coffee
in the hopper (4).
- Press the lock pin (9).
- Turn the regulation ring nut (8) clockwise to tighten the
grinding parts (fine coffee) and anticlockwise to loosen them
(coarse coffee), in order to obtain the desired coffee grinding
regulation.
8 - STARTING AND RUNNING THE WORKING CYCLE
8.1 BASE MODEL
By placing the luminous switch (1) on the I position, the
equipment will start and the inbuilt warning light signalling
that the equipment is live will switch on. Once you have
ground the desired amount of coffee, place the switch on the
0 position to stop the grinding process.
20
8.2 AUTOMATIC MODEL
By placing the luminous switch (1) on the I position, the inbuilt warning light signalling that the
equipment is live will switch on, and by subsequently pressing the operation button (2), the equipment
will start. The grinding process will automatically stop thanks to an inbuilt level measuring device,
which is located in the ground coffee container. The grounding process will be reset after 6 doses
have been obtained by operating the dosing lever (12). To interrupt the grinding process during an
intermediate stage, press the "Off" button (3).
8.3 FRESCO CAFFÉ M (ZMD) MODEL
Pressing the light switch (1) to position I, you get the start of the machine and the indicator light will
turn on showing that the built-in device is energized. Push with the filter holder the button (19) to
operate the coffee grinder. Once you reach the desired amount of ground coffee, remove the filter
holder releasing the button (19).
8.4 FRESCO CAFFÉ E (ZED) MODEL
Pressing the light switch (1) to position I, you get the start of the machine and the indicator light will
turn on showing that the built-in device is energized. Put the filter holder under the ground coffee
dispenser (18); push the button (20) to deliver a dose of ground coffee or the button (21) to obtain
two doses of ground coffee. If you want to obtain a continuous supply press the button (22).

9 - COFFEE DOSING

9.1 ZIP BASE AND ZIP AUTOMATIC MODELS
The ground coffee is delivered into the container provided (10). In order to fill the coffee machine
filter-holder you need to follow the steps listed below:
- Once you have fitted the filter into the filter-holder, place the latter in the coffee dosing grinder fork
(15) provided.
- Slowly pull the dosing lever (12) up to the point in which it stays in place, so as to enable that the
amount of ground coffee scheduled for one cup of Espresso coffee is released into the filter (7 gr.).
- Repeat the same steps if you need to prepare two coffee servings. Level the powder and press it by
means of the telescopic coffee-presser (13), manually clean the filter edge from any coffee residues
and fit the filter-holder into the unit body for coffee delivery. The equipment is provided with a coffee
counter (14) for dosing checking.
Caution! The equipment is provided with an internal protection device designed to safeguard
electrical components, which causes the machine to stop in the event of overheating. In this case,
wait for the equipment to cool down before restarting it. In any event, make sure that overheating is
not caused by external heat sources.
9.2 FRESCO CAFFÉ M (ZMD) MODEL)
Place the filter holder under the ground coffee dispenser (18) and push the button (19) to operate
the grinder.
Once obtained the requested quantity of ground coffee, remove the filter holder releasing the button
(19).
