ENGLISH

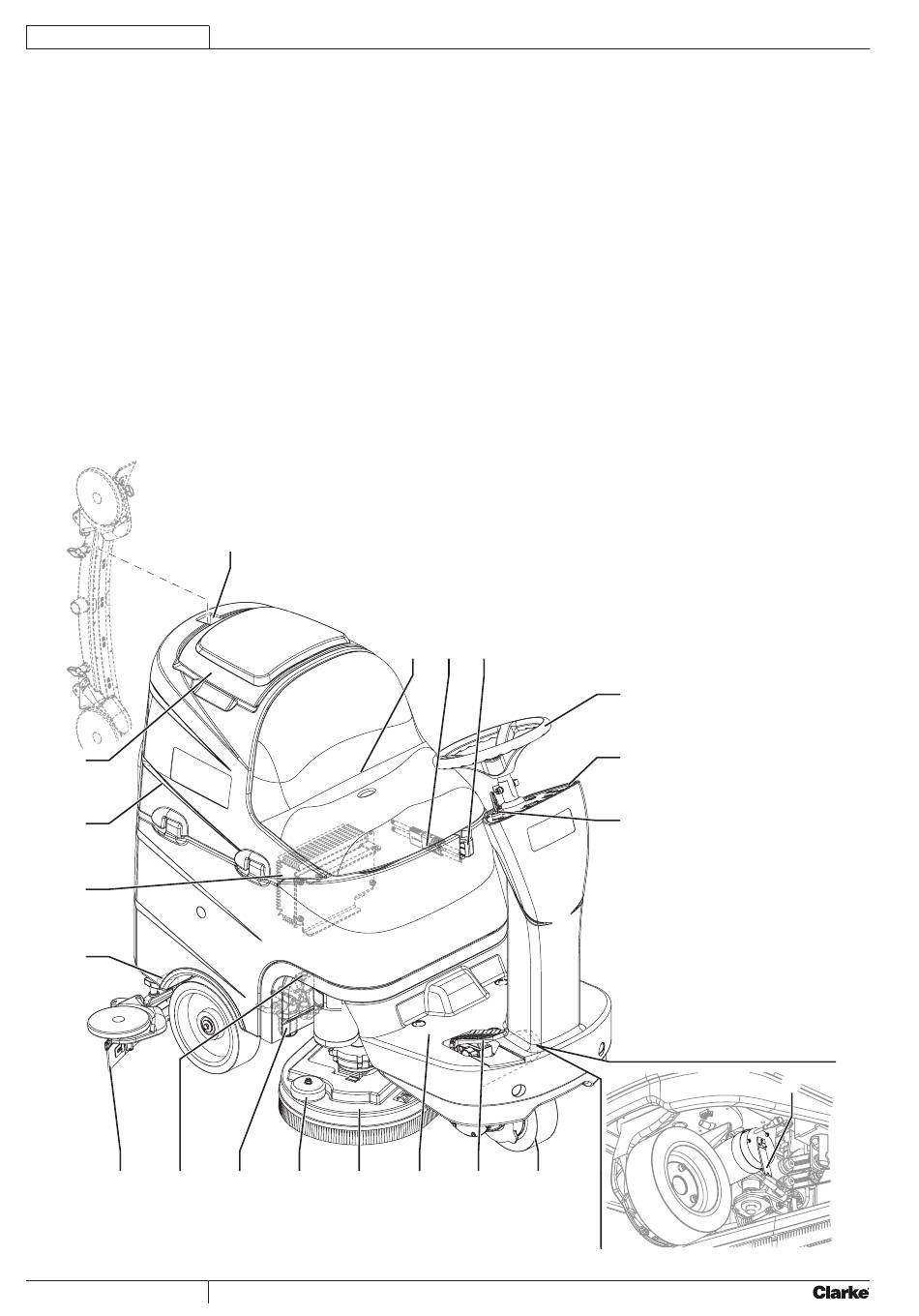

MACHINE DESCRIPTION

MACHINE STRUCTURE

1. Steering wheel
2. Control panel (see the following paragraph)
3. Ignition key
4. Forward/reverse gear pedal
5. Footboard
6. Front steering, driving and braking wheel
7. Electromagnetic brake unlocking lever
8. Emergency push-button
9. Battery connector
10. Brush/pad-holder deck
20
19
16
14
18 13
6
15
12 11 10
11. Bumper wheel
Solution filter
12.
13. Solenoid valve
14. Solution/clean water opening/closing tap
15. Squeegee hook
16. Battery charger
17. Seat
18. Squeegee blades assembly
19. Recovery tank assembly
20. Recovery tank cover
17 9 8
5 4 6
Operator's Manual - FOCUS II Micro Rider
1
2
3
7
P100431
