Progress Lighting 5401 Instructions De Montage Et D'installation

ROCRESS
LIGHTING
WARNING - If any Special Control Devices are used with this Fixture, Follow the Instructions Carefully to assure full
compliance with N.E.C. requirements. If there are any questions, contact a Qualified Electrical Contractor.
CAUTION - All glass ISfragile, use care when handling Glass Shade and lamps.
WARNING - This product contains
other reproductive harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.

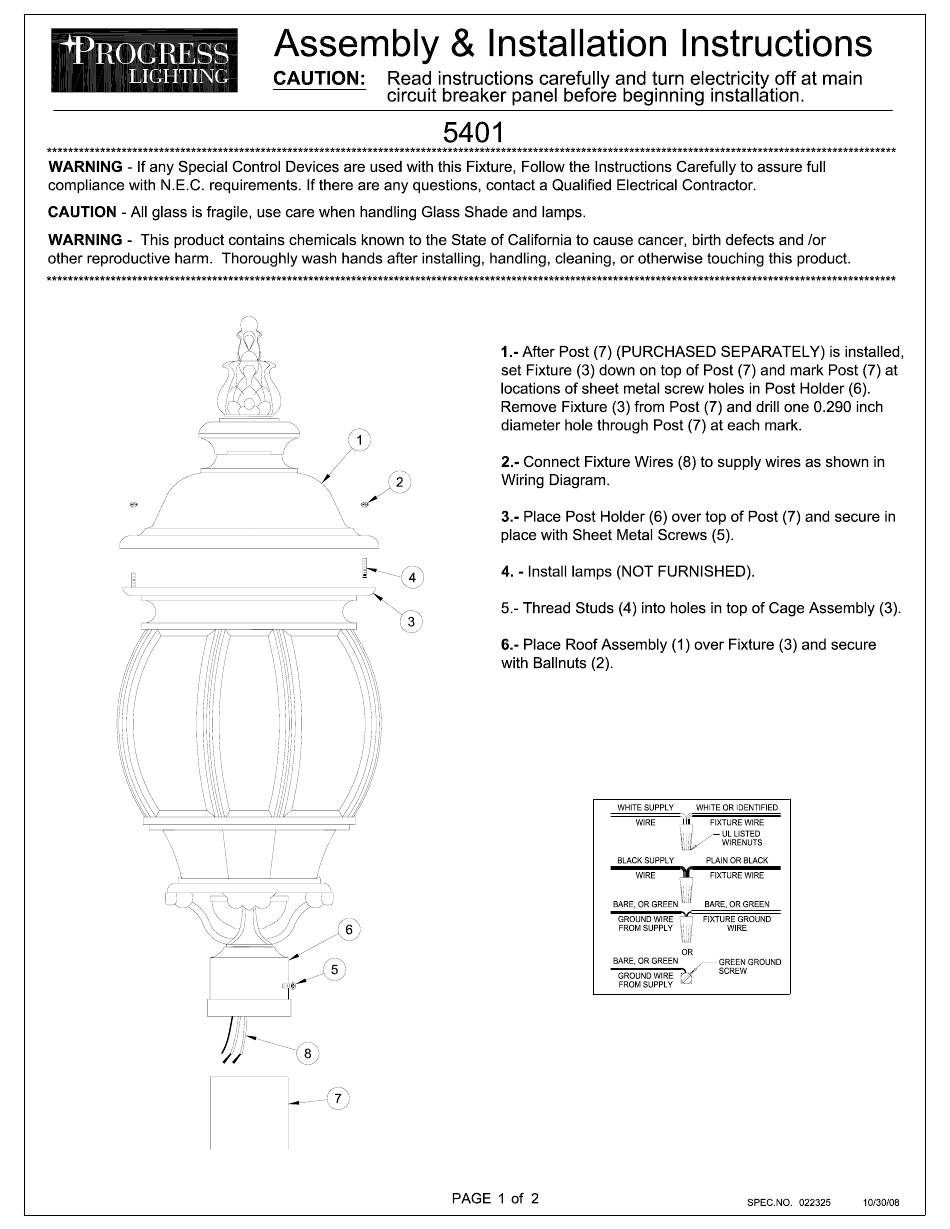

Assembly & Installation
CAUTION: Read instructions carefully and turn electricity off at main
circuit breaker panel before beginning installation
5401
chemicals known to the State of California
1
2
4
3
6
5
8
7
PAGE
to cause cancer,
1 After Post (7) (PURCHASED
set Fixture (3) down on top of Post (7) and mark Post (7) at
locations of sheet metal screw holes In Post Holder (6)
Remove Fixture (3) from Post (7) and drill one 0.290 inch
diameter hole through Post (7) at each mark
2.- Connect Fixture Wires (8) to supply wres as shown In
Wiring Diagram
3.- Place Post Holder (6) over top of Post (7) and secure In
place with Sheet Metal Screws (5).
4. - Install lamps (NOT FURNISHED)
5.- Thread Studs (4) Into holes In top of Cage Assembly (3)
6.- Place Roof Assembly (1) over Fixture (3) and secure
with Ballnuts (2).
WHITE SUPPLY
WIRE
BLACK supp Y
WIRE
BARE, OR GREEN
GROUND WIRE
FROM SUPPLY
BARE, OR GREEN
GROUND WIRE
FROM SUPPLY
1 of 2
Instructions
birth defects and (or
SEPARATELY) is installed,
WHITE OR IDENTIFIED
FIXTURE WIRE
LISTED
WIRENUTS
PLAIN OR BLACK
FIXTURE WIRE
BARE, OR GREEN
FIXTURE GROUND
WIRE
OR
GREEN GROUND
SCREW
SPEC NO 022325 10/30/08
