ENGLISH
Installation Instructions
Mounting the Weather Resistant Box
Caution:
Mount the Weather Resistant Box in a convenient location
It is recommended
where both 110 AC power and sprinkler valve wires can be
that a qualified
easily run.
electrician completes
wiring in accordance
Step 1: Remove sub-plate from box by removing screws.
with electrial codes
and regulation. This
cabinet is inteded for
use with a Ground
Fault Interrupter (GFI)
protected circuit when
used outdoors.

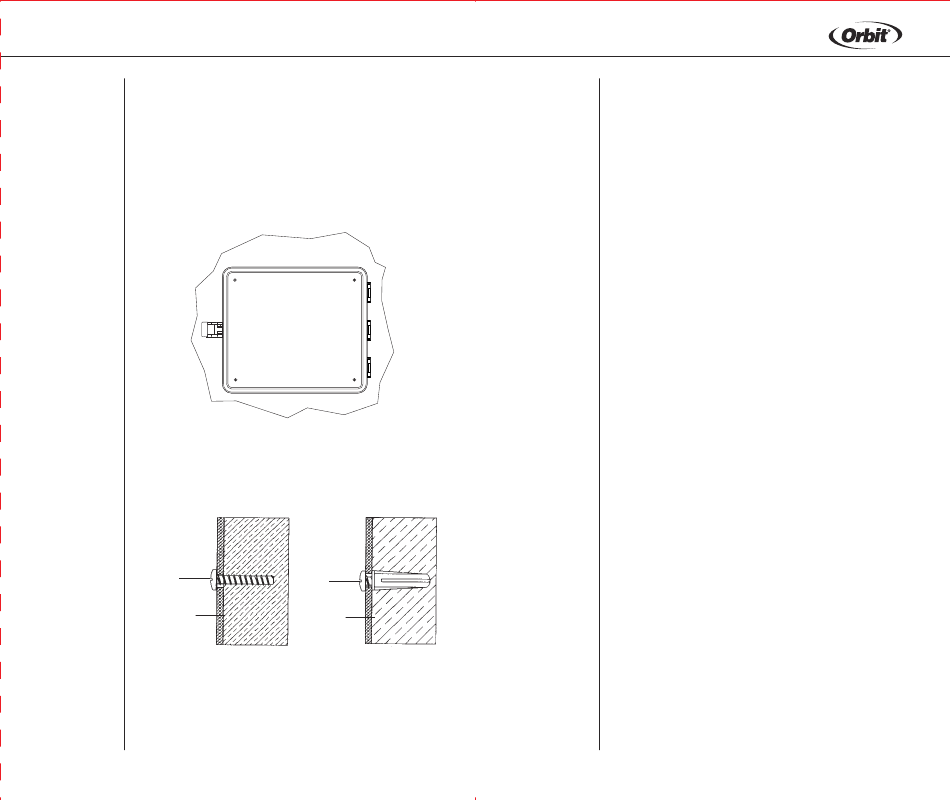

Step 2: Hold box in position and insert screws into the 3 mount-
ing holes provided. If mounting box to drywall or masonry, use
wall anchors.
Screw
Timer Box
Flat Surface
Screw
Timer Box
Stud Drywall
Installing and Wiring the Timer
The sub-plate is pre-drilled to fit all Orbit® Timers and most
other timers. If your timer does not match the pre-drilled holes
it may be necessary to drill additional holes in the sub-plate to
match the mounting holes on your timer.
Step 1: Switch circuit breaker to OFF or remove fuse.
Step 2: Install timer on sub-plate.
Step 3: Attach conduit fitting to holes in bottom of box. Draw
110 VAC line into box through conduit hole.
Step 4: Connect 110 inlet to receptacle.
• To use terminal screws: connect hot line (black) wire to
brass colored screw and neutral (white) wire to silver
colored screw. Wrap each stripped wire 3/4 turn clockwise
under heads of screws without overlapping and tighten
Caution:
securely.
Use copper wire only.
• To use E-Z Wire holes: strip wires to length of strip gauge on
To To be installed by
back of outlet. Push neutral (white) wire fully into E-Z Wire
a qualified
hole marked WHITE and black (hot) wire into E-Z Wire hole
electrician only.
on opposite side and tighten the screws securely.
• This device must be properly grounded for shock protection.
Connect green or bare grounding wire to green colored ter
minal screw.
Step 5: Attach conduit and conduit fittings to the other knock-
out in bottom of box. Draw 24 VAC wires into box through con-
duit hole.
Step 6: Mount sub-plate to box by attaching all 6 screws.
Step 7: Plug transformer into outlet.
Step 8: Attach 24 VAC wires to timer.
Step 9: Turn Power to ON.
Technical Service 1-800-488-6156
