Bulletin de service sur le terrain; remplacement du filtre à air et du détendeur
Masquer les pouces
Voir aussi pour Powermax30:
- Manuel de service (225 pages) ,
- Manuel de l'utilisateur (72 pages) ,
- Mode d'emploi (67 pages)
Publicité
Air Filter/Regulator and Pressure Switch Replacement
228106 Kit contents
Part number
011116
005112
015530
015603
015691
104704
015618
015550
015846
The brass hex adapter fitting in this kit (015846) is not used in the Powermax30.
Before you begin

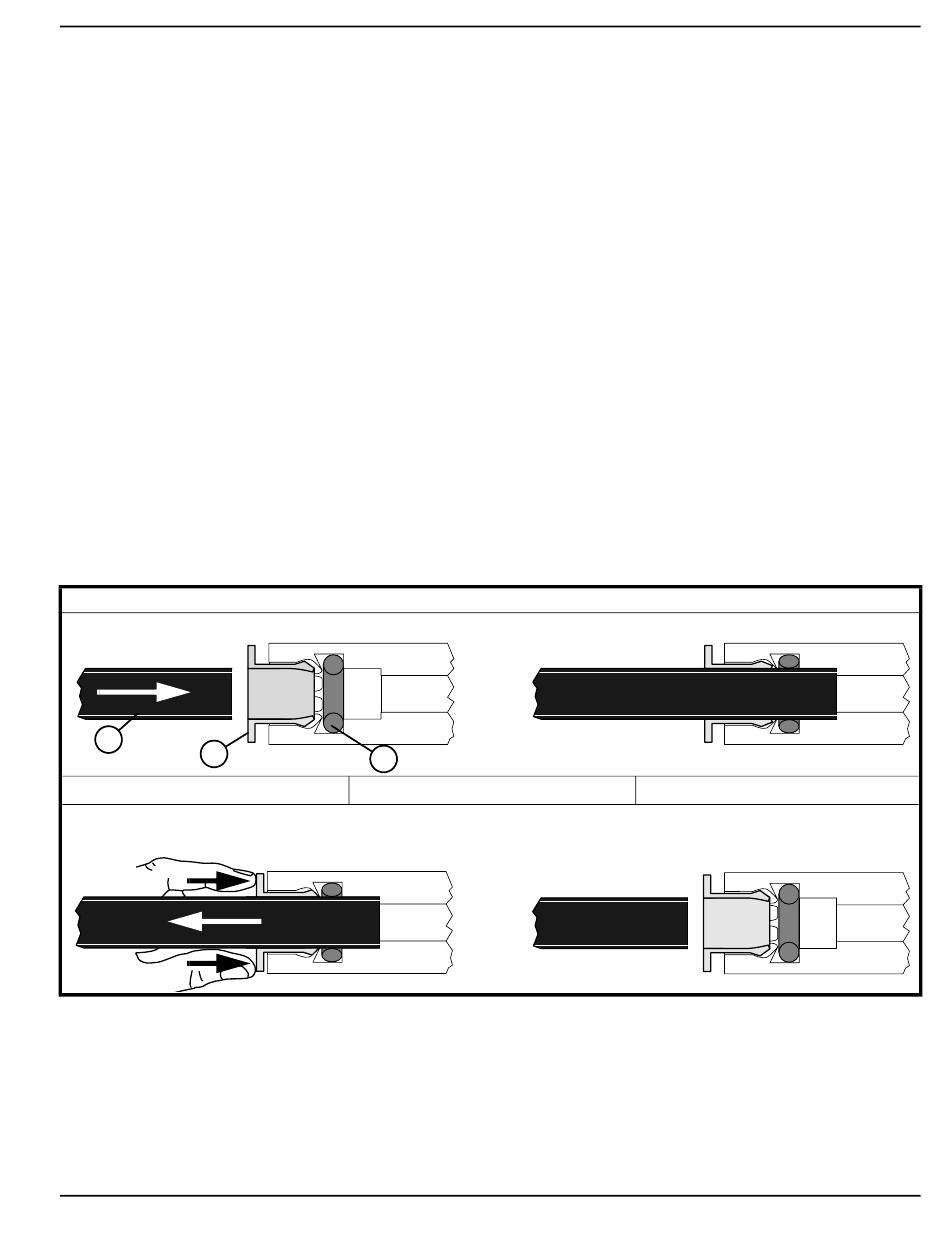

The gas supply hoses mentioned in the following procedures use push-to-connect fittings:
Push-to-Connect
To connect, push the hose into the fitting until it stops. Pull on the hose to verify that it is secure.
1
2
1
Hose
To release, push the fitting collet toward the fitting, and pull the hose away from the fitting.
4
Description
Air filter/regulator
Pressure switch
Brass elbow fitting
Brass "T" fitting
1/8 NPT x 6 mm push-to-connect fitting
Tubing: 6.35 mm OD x 4.23 mm ID poly, 4.75 in.
Brass pipe fitting (Powermax30 only)
Brass coupler (Powermax30 only)
Brass hex adapter fitting (Powermax30 XP only)
3
2
Collet
Powermax30/30 XP Field Service Bulletin 805330 Revision 2
Quantity
3
O-ring
1
1
1
1
1
1
1
1
1
