countdown timer. The auger will remain on for no
more than 7 minutes. This is ample time for the
pellets to reach the burner. To avoid over-filling of
the burner with pellets, open the burner clean-
out by pulling the knob on the right side of the
grill, opening the clean-out slide. Once you hear
pellets dropping into the ash cup you can close the
clean-out by pushing the knob on the right side of
the grill. FEED mode can then be cancelled from
the controller by rotating the selector knob and
pressing it, to confirm the cancel (Never operate
the grill without the ash cup in place). Always make
sure the burner clean-out port is closed by pushing
in the knob on the right side of the grill before
selecting any of the cook settings. Never open the
burner clean-out port when the grill is hot.
Emptying the Hopper
This grill is equipped with a hopper drain to quickly
remove the pellets from the hopper. This can be
used to remove pellets if the grill is being stored
for a long time or to remove pellets to change to a
different flavor pellet.
Warning: Never remove the auger guard from the
hopper while the pellet grill is on. Never operate the
grill without the auger guard in place.
Caution: The instructions below must be followed
when emptying the hopper.
1. Unplug the grill from the power source.
2. Hang a bucket or use a box to catch the pellets
that will come out of the tube on the rear of the
hopper.
3. Lift the pull-out lock on the left side of the hopper
and pull the hopper clean-out knob.
4. Sweep the remaining pellets in the hopper
towards the drain hole.
5. Push in the hopper clean-out knob and lock in
place using the pull-out lock.

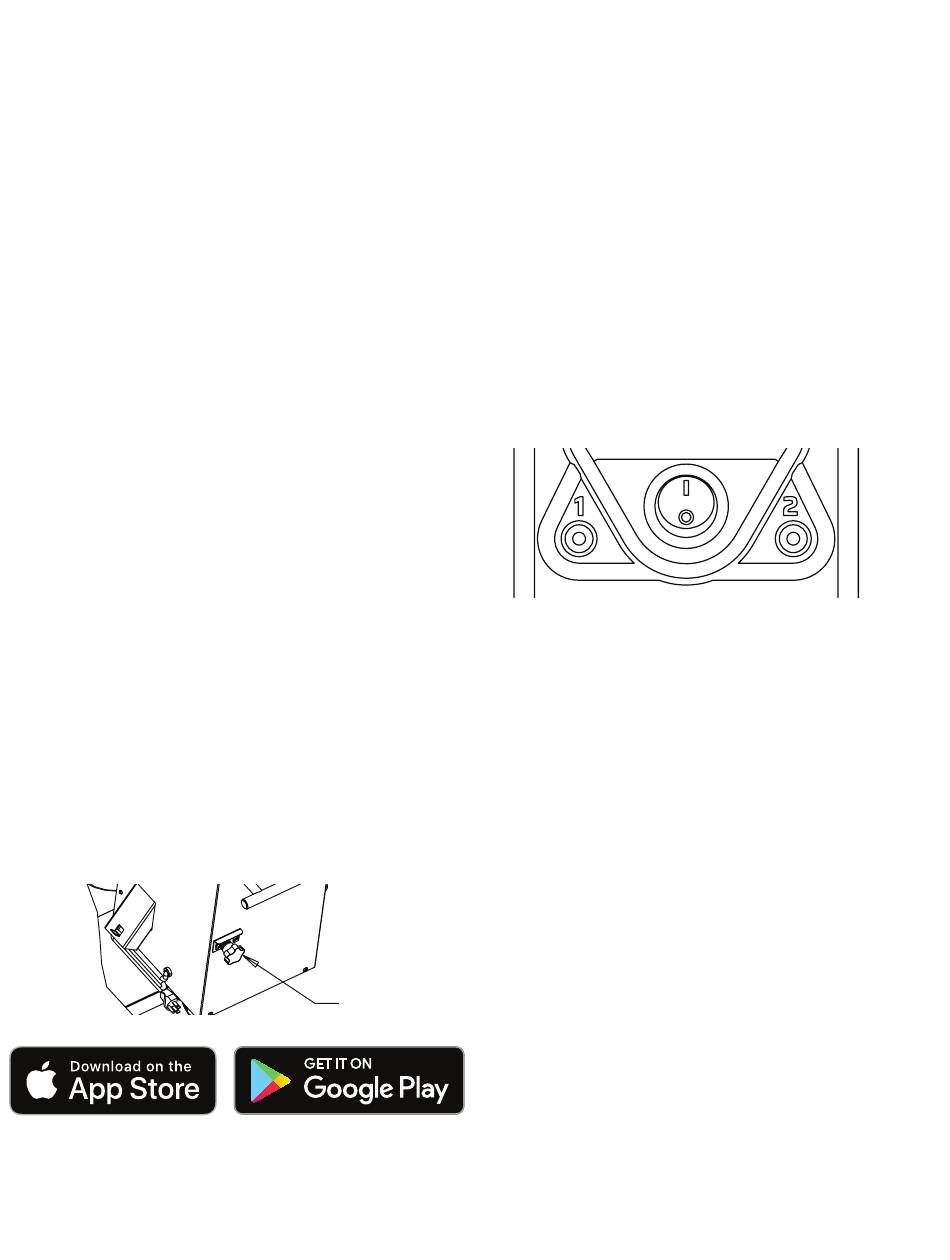

FIG. 19
App quick start guide (Optional)
1. Download the Camp Chef APP from the Apple
APP store or Android Play Store.
2. Turn the Grill controller on using the main
power switch.
3. Open the Camp Chef APP and follow the set up
instructions for connecting the grill to your home
2.4 GHz WiFi network.
Warning - Do NOT leave this appliance unattended
while in use. The user must remain in the
immediate area of the product and have a clear
view of the product at all times during operation.
Note - Some functions are only available from
the controller. If attempting to start the grill from
the APP it will prompt you to confirm starting the
grill from the controller. Temperature and Smoke
settings can be adjusted from the APP. Shutdown
can also be performed from the APP.
For more information visit https:/www.campchef.
com/app
Controller Explanation Power Switch
Used to turn the main power onto the pellet
grill. "O" is OFF, "I" is ON. See Fig 20. When the
controller is first powered on, the Selector Knob
must be pressed to enter the MENU.
Controller Functions
Rotate the dial to scroll through menus, adjust
temperature, or smoke settings. Press the dial to
select.
SHUTDOWN
This setting must be used after each use. Select
SHUTDOWN from the main menu. The fan will
remain on for up to 20 minutes. This setting will
burn up any extra pellets in the burner and cool
down the grill. Do not turn the main power switch
off when the grill is hot.
FEED - Select FEED from the main menu. This
setting is used to feed pellets to the burner. It will
be used the first time you use the grill to fill the
auger tube and any time you may inadvertently
run the hopper out of pellets. See instructions on
filling the auger tube.
HOPPER CLEANOUT
SET TEMP LOW SMOKE - Select SET TEMP from
the main menu. Rotate dial to LOW SMOKE and
press to confirm. This setting is used for smoking
foods at an average temperature of 160F. This
setting will produce large amounts of smoke.
SET TEMP HIGH SMOKE - Select SET TEMP
from the main menu. Rotate dial to HIGH SMOKE
and press to confirm. This setting is used for
smoking foods at an average temperature of
220F. This setting will produce large amounts of
smoke.
FIG. 20
