Assembly Instructions
Remove all loose parts from the inside of the grill
and hopper. Lay a blanket or piece of cardboard
down to protect the grill.
Attach the Legs
With the help of another person flip the grill upside
down on the blanket or cardboard. The grill lid and
hopper lid will swing open when doing this so be
careful not to damage the lids. The grill may also
want to roll on its lid so one person should hold the
grill steady while the other person assembles the
bottom legs and wheels.

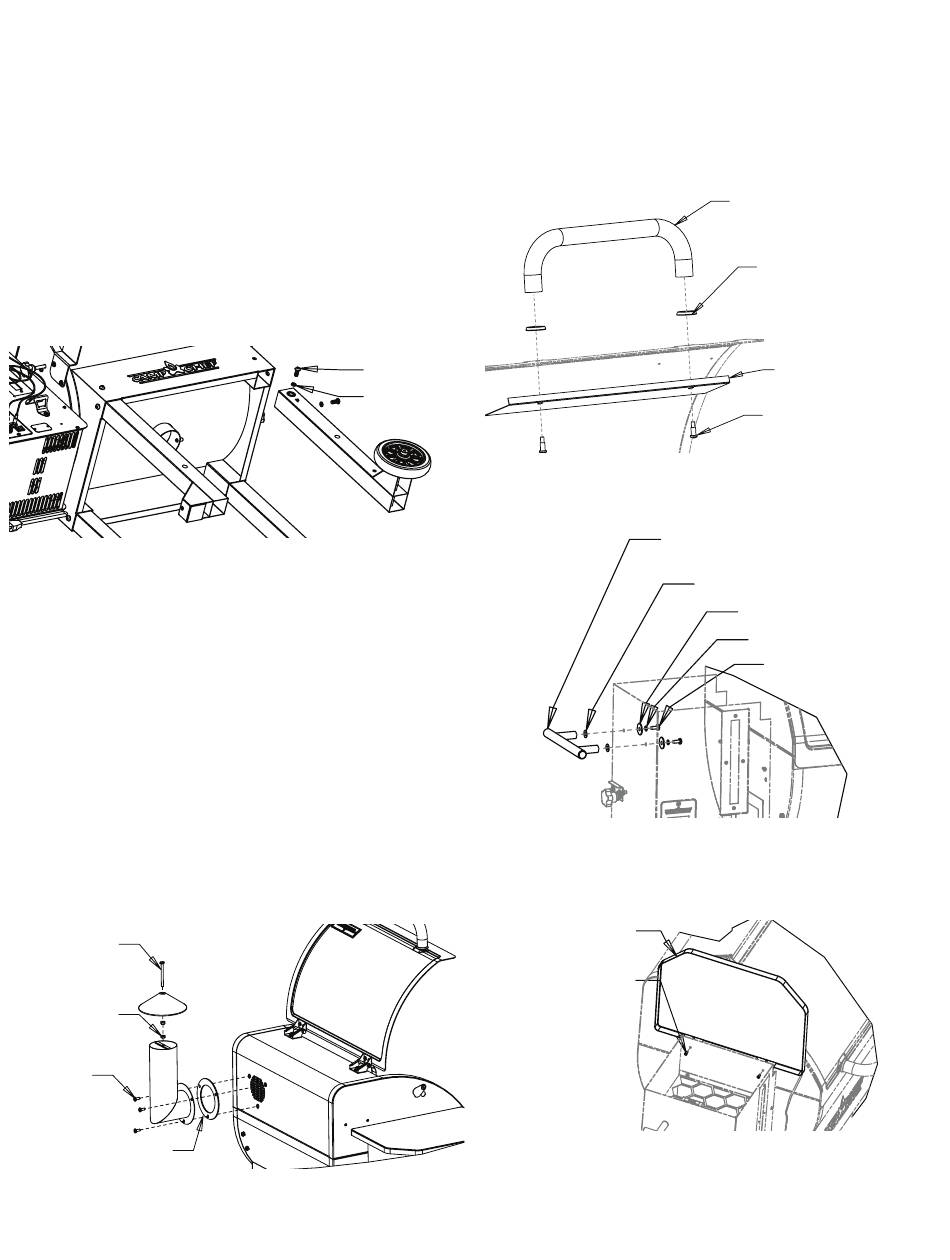

1. Assemble the legs as shown in Fig. 1. Finger
tighten hardware.
2. With the help of another person, stand the grill
upright. Be careful as the lid on the hopper and
grill will close as the grill is stood upright.
3. Tighten all hardware assembled in the previous
steps.
Attach Chimney and Chimney Cap
1. Install chimney to grill as shown in Fig 2. Make
sure to install the gasket between the grill and
the chimney.
2. Tighten all hardware.
3. Install 1/4-20 x 3 Bolt through chimney cap and
secure using Qty (1) 1/4-20 nut. Thread second
nut onto bolt leaving approximately 1.5 in to the
top of the cap. Thread cap assembly down into
the chimney bracket until the lower nut hits the
bracket. See Fig 2.
1/4-20 x 3 BOLT (1)
1/4-20 NUT (2)
M6 X 15 SCREW
CHIMNEY GASKET
4. The height of the chimney cap can be adjusted
for summer and winter. In the summer the gap
M8 X 20 BOLT
M8 LOCK WASHER
FIG.1
M8 X 20 BOLT
M8 LOCK WASHER
FIG. 2
should be approximately 1-1/2 in. In the winter
the gap should be approximately ½ in.
5. Tighten all hardware.
Install Handle
1. Install the handle as shown in Fig 3.
2. Tighten all hardware.
FIG. 3
Install Hopper Handle
1. Install hopper handle as shown in Fig. 4.
HOPPER HANDLE (1)
PGC24-12
Install Hopper Lid
1. Install hopper lid as shown in Fig. 5.
HOPPER LID (1)
M4 X 10 SCREW (2)
FIG. 5
Install Shelf Brackets
1. Install the brackets as shown in Fig 6.
2. Tighten all hardware.
PG24 HANDLE
PG HANDLE BEZEL
HANDLE HEAT DEFLECTOR
HANDLE SCREW
M6 RUBBER WASHER (2)
M6 FENDER WASHER (2)
M6 LOCK WASHER (2)
M6 X 15 BOLT (2)
FIG. 4
