Install Shelf
(Optional-Do not install if installing sear box)

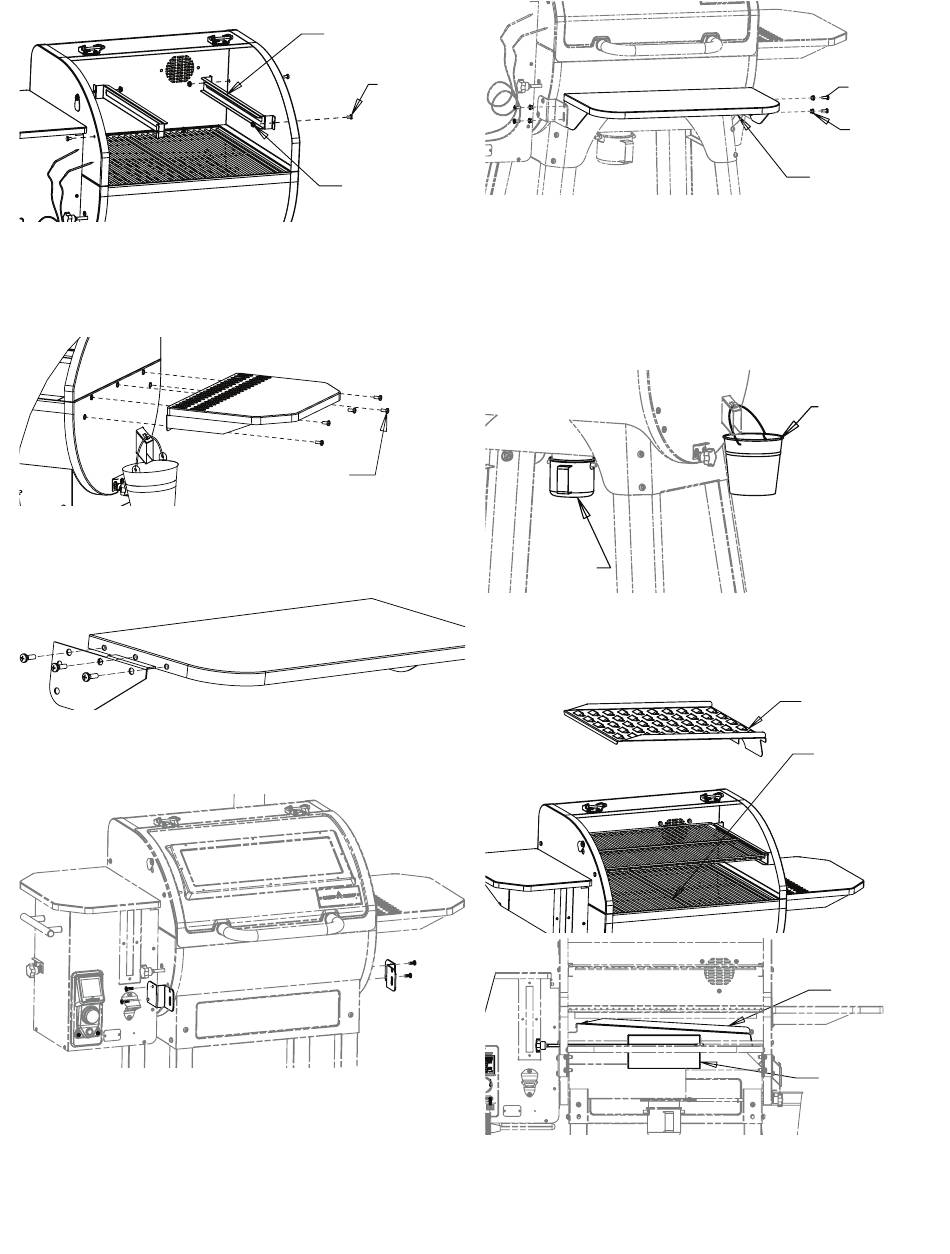

1. Install shelf as shown in Fig 7.
2. Tighten all hardware
Installation Instructions
1. Install side shelf brackets as shown
in Fig 8.
2. Remove the screws from the side of
the grill.
3. Install the brackets as shown in Fig 9.
4. Install the front shelf to the brackets as shown
in Fig 10.
UPPER GRATE BKT (2)
PG24ZG-2
M6 X 10 SCREW (4)
M6 FLANGE NUT (4)
M6 X 15 SCREW
GREASE BUCKET
FIG. 6
Grease Bucket
1. Hang grease bucket from tube as shown
in Fig 11.
Ash Cup
1. Install Ash Cup as shown in Fig 11. Never use
grill without Ash Cup in place.
FIG. 7
ASH CUP
Install Drip Tray
1. Install the Drip Tray as shown in Fig 12
and Fig 13.
FIG. 8
Warming Rack and Cooking Grate
1. Install the cooking grate as shown in Fig 14.
FIG. 10
M6 X 20 BOLT (4)
SCREW BUSHING (4)
PGFS24-4
SHELF (1)
PGFS24-3
GREASE BUCKET
FIG. 11
DRIP TRAY
HEAT DEFLECTOR
FIG. 12
FIG. 13
DRIP TRAY
HEAT DEFLECTOR
