2. Before installation
2.1 Prerequisites
•
The installation of electrical systems must be performed by specialized personnel.
•
The cabinet must be installed stably and perfectly level. Any deformity or instability in the cabinet may pose a risk to user safety and system
operation.
•
Check the correct functioning of the sliding system to be combined with 'B-Moved' and the correct positioning of track limit stops.
•
Each movement bar is equipped with a 4-metre cable for connection to control unit. The control unit power supply cable has a length of approxi-
mately 3 metres including the power adapter. A 110-240V, 50-60Hz, AC power outlet must therefore be accessible near to where the cabinet
is installed.
•
The installed electrical system must comply with applicable regulations regarding active and passive electrical protection.
2.2 Electrical connection
Make sure that the power outlet is easily accessible after installing the cabinet and system.
All connections must comply with the regulations of energy supply companies.
3. Set-up operations
3.1 Initial cabinet set-up
Do not power the control unit until all motors have been connected.
Connect all movement bar motors to the control unit according to the chosen cabinet configuration.
After connecting all the motors to the control unit according to instructions, manually bring the doors to their closed positions.

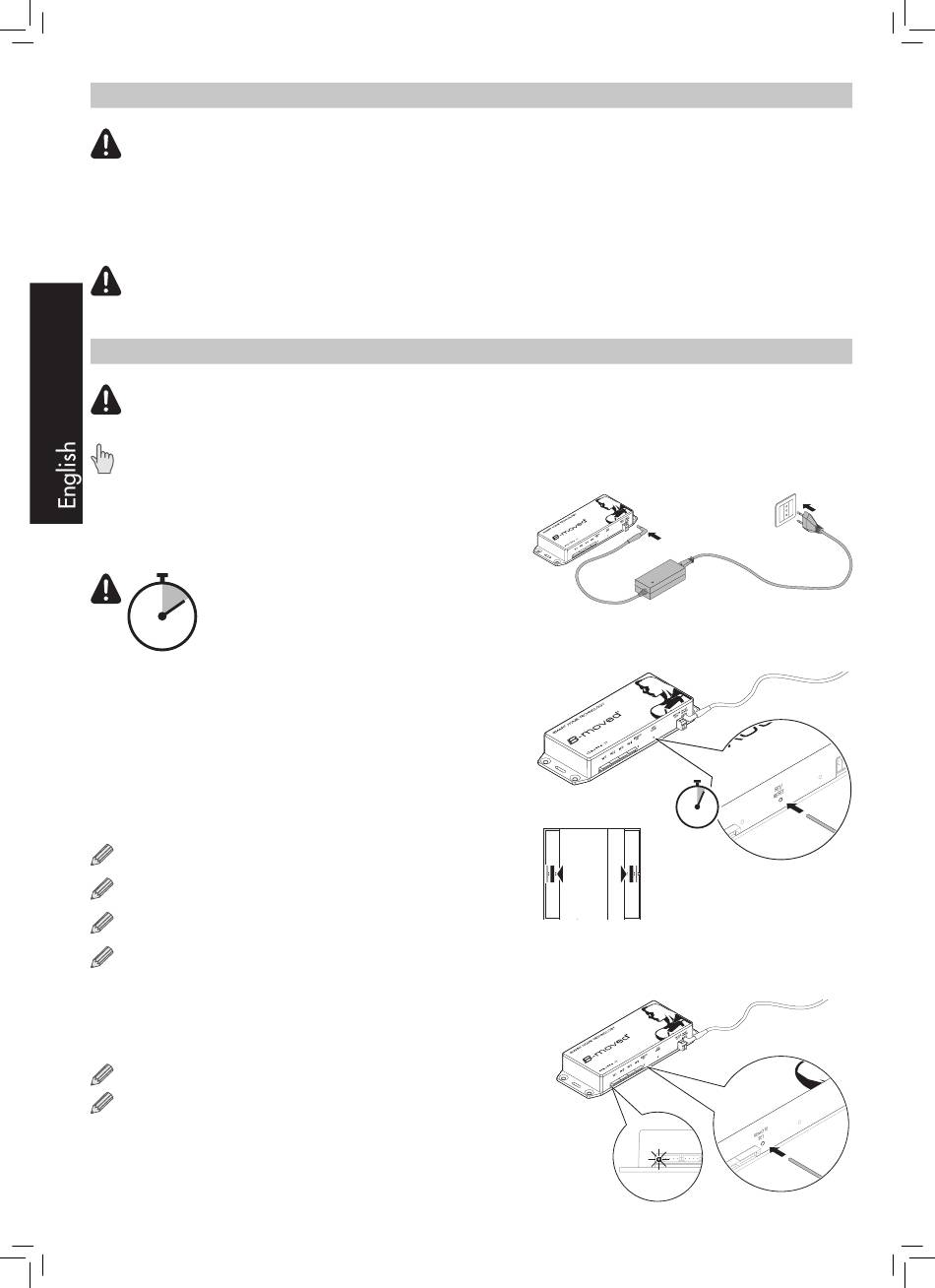

3.2 Control unit power supply
After checking the correct connection of the motors to the control unit and bringing the
doors to their closed positions, the control unit can finally be powered via the power supply
unit.
Wait at least 10 seconds after powering on the unit to allow it to
learn and select the program to use with the connected system.
00:00:10
3.3 Track memorization cycle
Activate the function for automatic detection of door track limits, as described in Section 2.3,
by long pressing (3 seconds) the 'SET/RESET' button on the control unit.
One door at a time, starting from the first door to the left of the cabinet, the doors will move
slowly towards their respective track limit stops.
The operation may take up to a few minutes until all door tracks have been memorized.
During this set-up phase, the movement of the doors must not be impeded in any way.
If the positions of the track limit stops are changed, the track memorization cycle must
be repeated.
During this set-up phase, the remote control pairing function cannot be activated.
If this operation is not successful due to a lack of power or physical obstacles in the path of the door, simply unplug the power supply, bring the doors to
their closed positions and repeat the operation.
3.4 Remote control pairing
To activate the pairing function, press and release the "REMOTE SET" button on the control
unit. Then a red LED will flash on the control unit. While the LED is flashing, press for at least
3 seconds one of the buttons of the remote control to pair it.
Multiple control units can be paired and used with a single remote control.
Multiple remote controls can be paired and used with the same control unit.
Pairing must not be activated during the track memorization cycle.
42
00:00:03
SET
