Phantom 4 RTK
The Phantom 4 RTK is a smart mapping and imaging drone capable of highly accurate mapping functions.
The aircraft has a built-in DJI
accuracy. Multi-directional obstacle sensing is enabled by forward, rear, and downward vision and infrared
sensors*. The camera features a 1-inch 20-megapixel CMOS sensor housed within a high stability gimbal.
When it comes to mapping, the high-performance mechanical shutter eliminates rolling shutter distortion when
capturing images at speed. Image data can be used to generate maps for field planning when operating a
TM
DJI AGRAS aircraft. Users can also import photos to the DJI TERRA
software to composite highly accurate maps for different applications.
The Phantom 4 RTK uses 9455S low-noise propellers to reduce noise and improve efficiency.

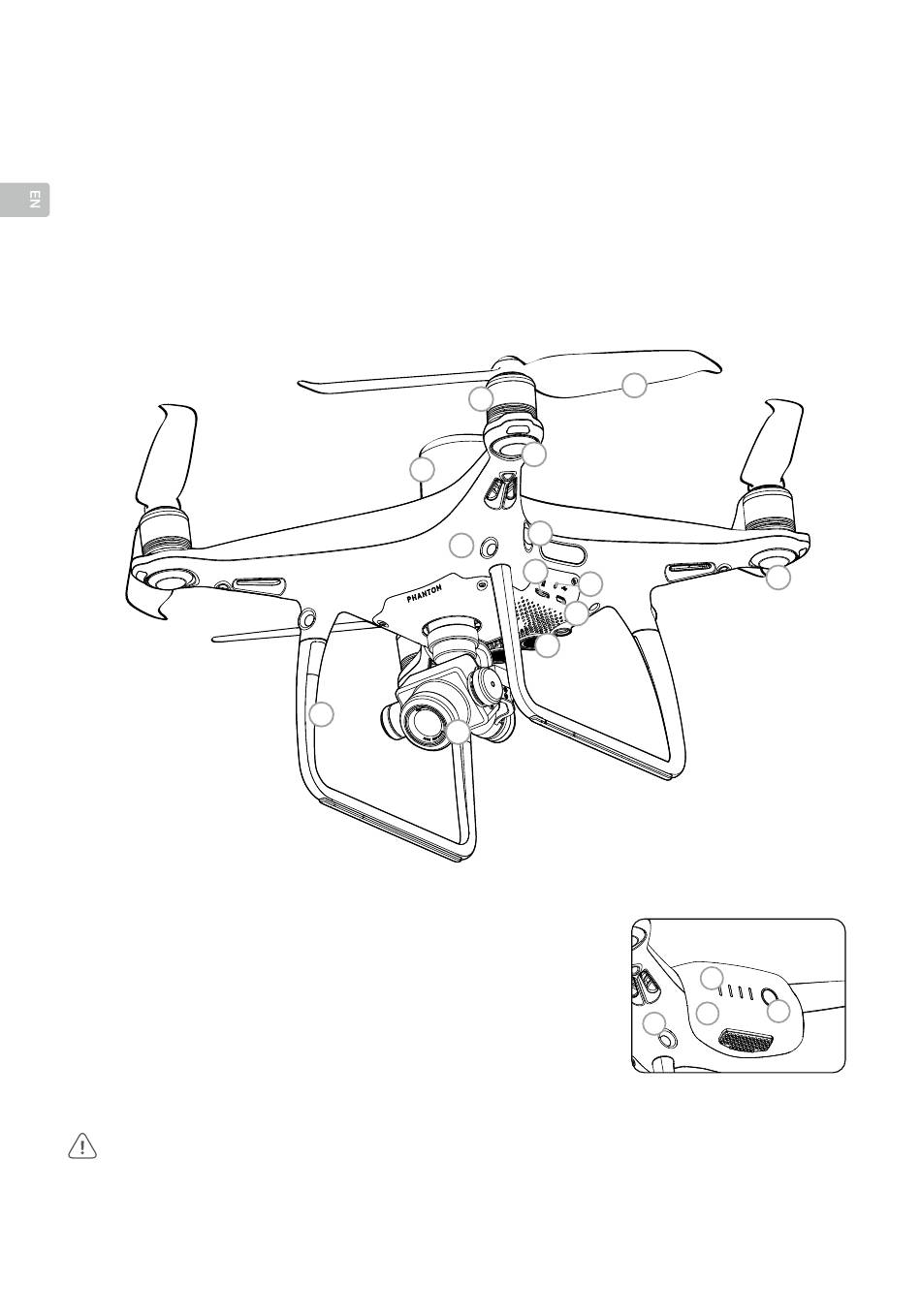

1. Gimbal and Camera
2. Downward Vision System
3. Micro USB Port
4. Camera/Linking Status Indicator and
Link Button
5. Camera microSD Card Slot
6. Forward Vision System
7. Infrared Sensing System
8. Front LEDs
9. Motors
DO NOT use a mix of 9455S and 9450S propellers.
●
* This should be used with Network RTK service, a DJI D-RTK 2 High-Precision GNSS Mobile Station (purchased
additionally) or post-processed kinematic (PPK) data (recommended when RTK signal is weak during operation).
The Vision and Infrared Sensing Systems are affected by surrounding conditions. Read the Disclaimer and Safety
Guidelines to learn more.
