Rollo R_04 |
Store enrouleur R_04
Montage Wand
Montage au mur Wall installation
Bohrung ø 6 mm
perçage ø 6 mm
Drill hole ø 6 mm
Montage Wand Elektro
Montage mur électrique
Wall installation electric
Kurbelmontage
für 04-3446
Montage de la
manivelle pour
04-3446
Crank installation
for 04-3446
**
Technische Änderungen vorbehalten, Ausgabe 02.2025
Sous réserve de modifications techniques, édition 02.2025
Subject to technical changes, Edition 02.2025
| Roller Blind R_04

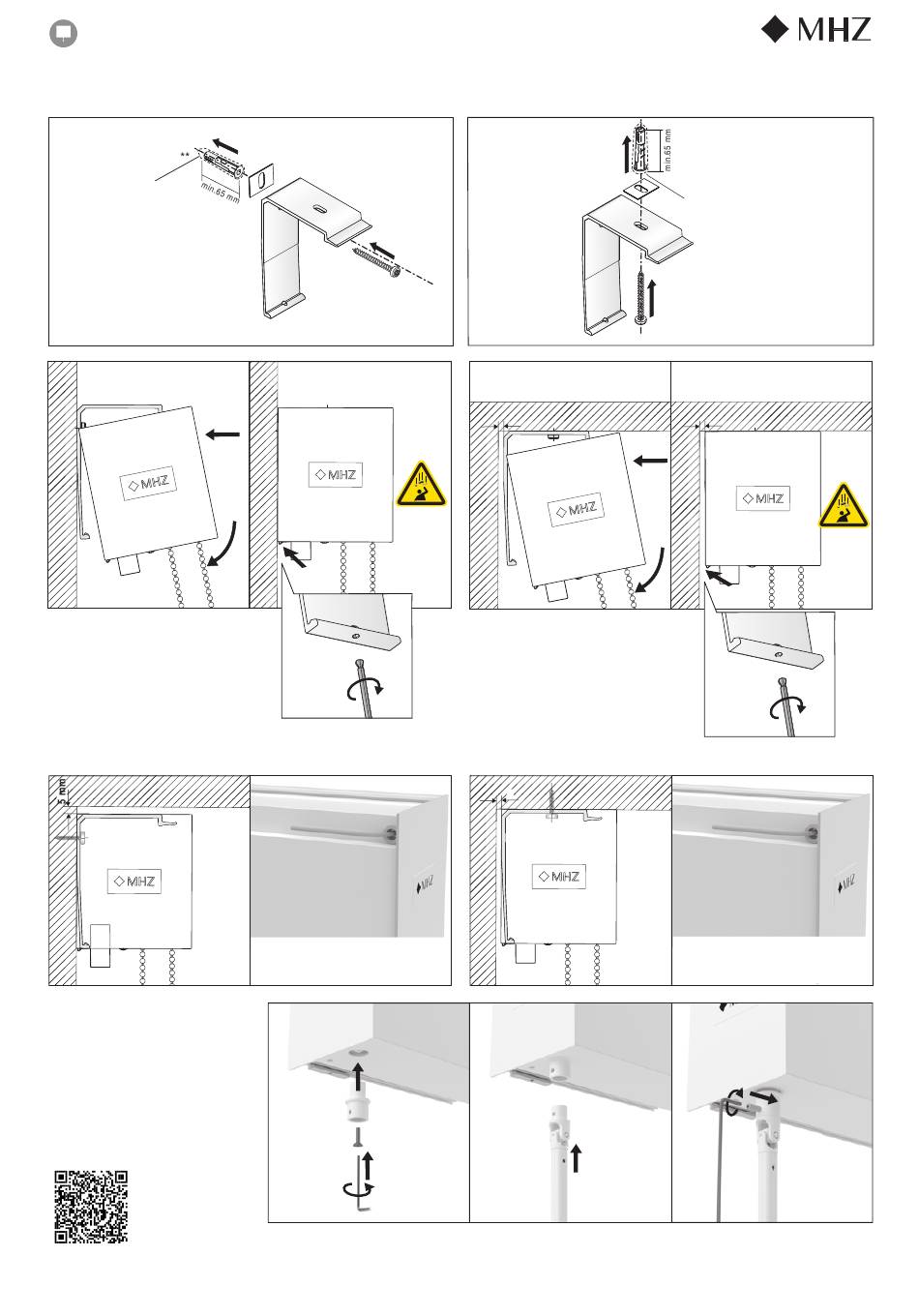

1.
Sicherung zwingend notwendig!
Verrouillage impératif!
Securing is absolutely necessary!
1.
2.
Click
Gewindestift
Gewindestift bündig
3.
einschrauben
bündig ein-
Goupille de sécurité
schrauben
à visser jusqu'à
affleurement
Screw in grub
screw flush
Kabelöffnung bei 04-3444
Passage du câble pour 04-3344
Cable opening for 04-3344
1.
2.
Werkzeug: Innensechskant SW2 mit Kugelkopf
Outils : clé Allen SW2 à tête sphérique. Tool: Internal hexagon SW2 with ball head.
Montage Decke
Montage au plafond Ceiling installation
2.
5 mm
1.
Werkzeug:
Innensechskant SW2 mit Kugelkopf
Outils :
Clé Allen SW2 à tête sphérique
Tool:
Internal hexagon SW2 with ball head
Montage Decke Elektro
Montage plafond électrique
Ceiling installation electric
5 mm
**
1.
Bohrung ø 6 mm
perçage ø 6 mm
Drill hole ø 6 mm
2.
Sicherung zwingend notwendig!
Verrouillage impératif!
Securing is absolutely necessary!
5 mm
1.
2.
Click
Gewindestift
Gewindestift bündig
einschrauben
bündig ein-
Goupille de sécurité
schrauben
à visser jusqu'à
affleurement
Screw in grub
screw flush
Kabelöffnung bei 04-3444
Passage du câble pour 04-3344
Cable opening for 04-3344
4.
3.
3.
3
