Vertiv™ Liebert® GXT5 Lithium-Ion UPS 1000-3000VA
LV, 120V IN, 120V OUT
Quick Installation Guide
2. Connecting UPS Input and
Output
The UPS has a 5-15P, L5-20P (with
5-20P adapter if desired), or a
L5-30P input plug depending on
your model.
The UPS is equipped with output
receptacles. Connect the
equipment to be protected to the
output receptacles.
3. Connecting AC Input
Refer to the wiring table above for
the recommended overcurrent
protection. Connect to an input-
power source that is properly
protected by a circuit breaker in
accordance with national and local
electrical codes.
NOTE: Allow the batteries to
charge at least 2 hours before first
start up to ensure adequate
backup time. Allow an additional 2
hours for each EBC, if connected.
The batteries charge when the
UPS is connected to AC input
regardless of whether the UPS is
on or off.
Powering the UPS
NOTE: Do not start the UPS until
after the installation has been
finished.
1. Make sure the panel feeder
breaker supplying power to
the UPS is closed.
2. If EBCs are connected, close
the breakers on the rear of
each EBC.
3. When the UPS is first
connected start up
guidance screens will
appear. Use the Up, Down,
and Enter buttons to
confirm settings. Then,
press and hold the power
button to power the UPS on.
WIRING
Model
GXT5LI-1000LVRT2UXL
GXT5LI-1500LVRT2UXL
GXT5LI-2000LVRT2UXL
GXT5LI-3000LVRT2UXL

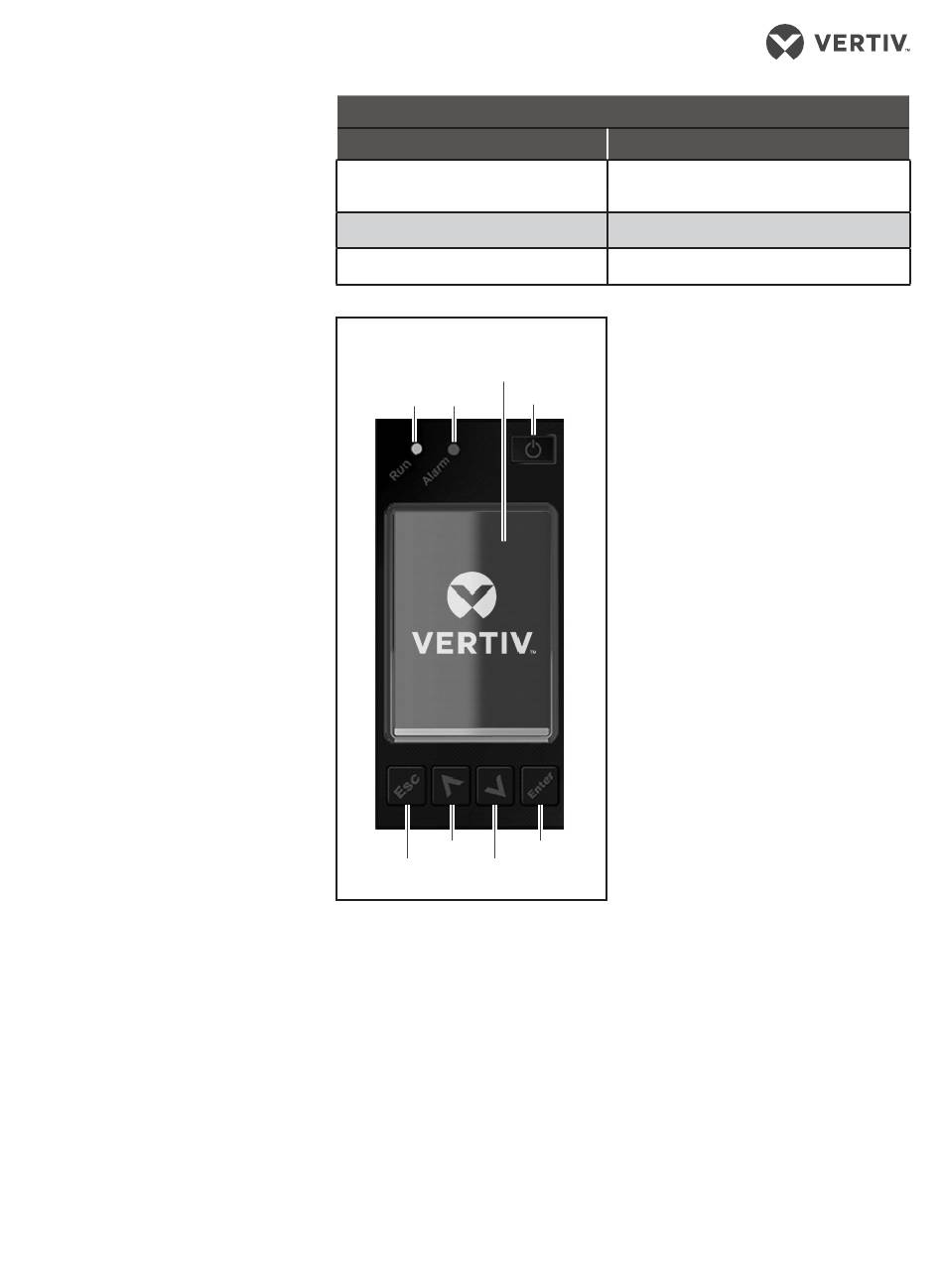

Operation and Display Panel
Display screen
Run Alarm
Up
Escape Down
NOTE: The UPS alarm will sound
when the output receptacles are
not powered. Press and hold the
ESC button for 2 seconds to
silence the alarm.
Recommended panel feeder breaker
15 A
20 A
30 A
Power
Enter
