4. Connections
Ground loop through shielding
Remote devices may have a slightly different ground potential. A shield connected on
both sides represents a second ground connection through which this potential differ-
ence is compensated. The resulting current flow can interfere with the data transfer.
Only connect the screen on one side to the common ground potential, e.g. on the

reader (WP variant: Shield is led out on reader side together with ground).
28 / 132
SR30HYS_F
SimonsVoss
SE
NRF
1 2 3 4 5
- -
A B +

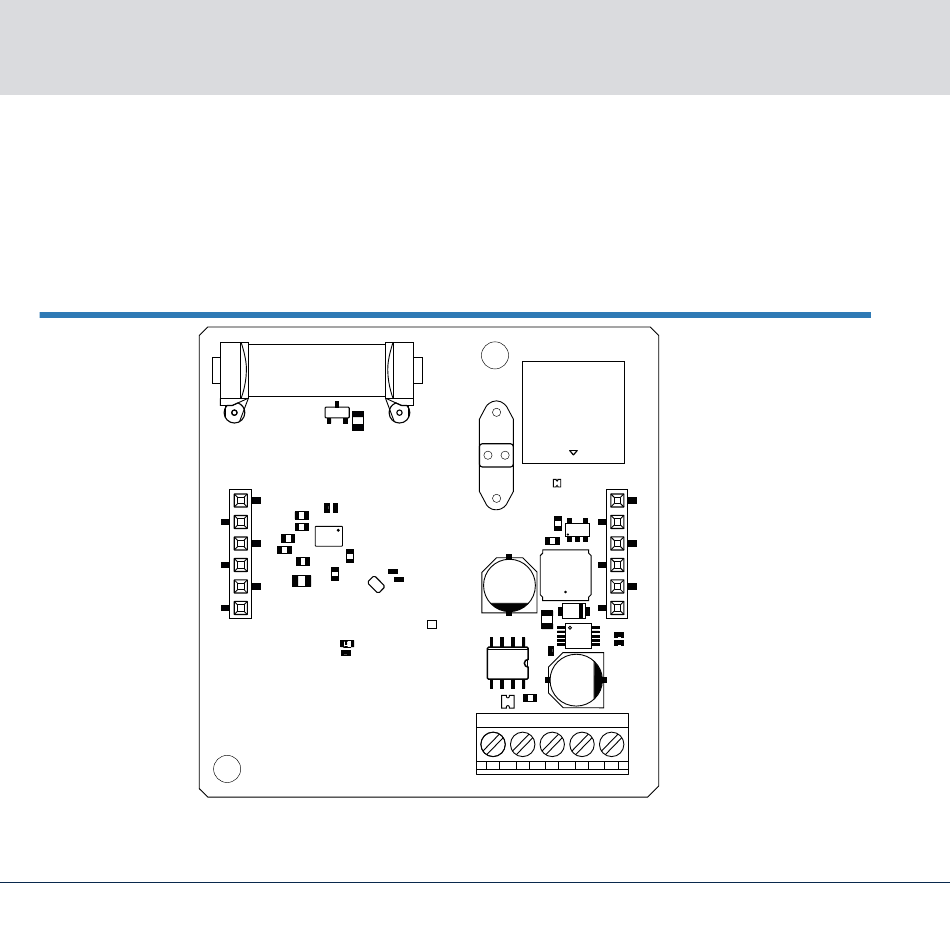

SmartRelay 3 reader
EN
