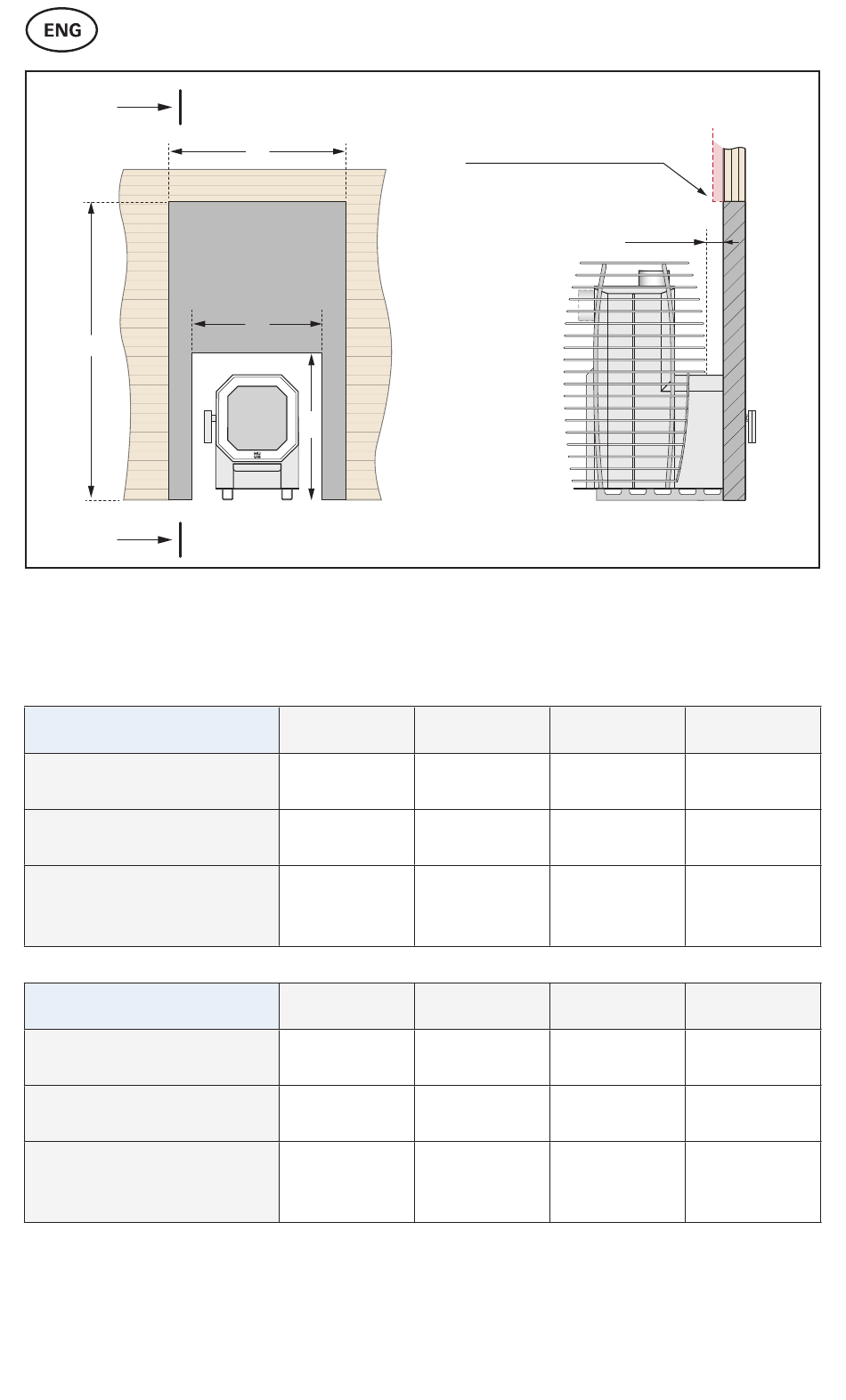

Figure 9. Installing HIVE Flow LS and Flow Mini LS sauna stoves through the wall.
The minimum dimensions for the non-combustible wall and the opening in the case of
HIVE Flow LS are provided in Table 2. For HIVE Flow Mini LS, see Table 3.
Table 2.
Sauna stove on the floor,
without mounting collar.
Sauna stove on the floor,
with HUUM mounting collar.
Sauna stove on protective
bedding, with HUUM
mounting collar.
Table 3.
Sauna stove on the floor,
with no mounting collar
Sauna stove on the floor,
with HUUM mounting collar.
Sauna stove on protective
bedding, with HUUM
mounting collar.
The protective bedding and mounting collar are accessories designed to simplify
installation and add finishing touches. These items are sold separately. The maximum
thickness of the non-combustible wall when using HUUM mounting collars is up to
150mm, and without it up to 100mm. Please refer to Appendix 5 for more details.
10
A
C
D
A
mm
650
650
650
A
mm
650
650
650
ATTENTION! Ensure that the
flammable material wall does
not protrude.
B C
mm mm
1050 320
1050 485
1100 485
B C
mm mm
1050 270
1050 435
1100 435
50mm
A - A
D
mm
470
560
615
D
mm
470
560
615
