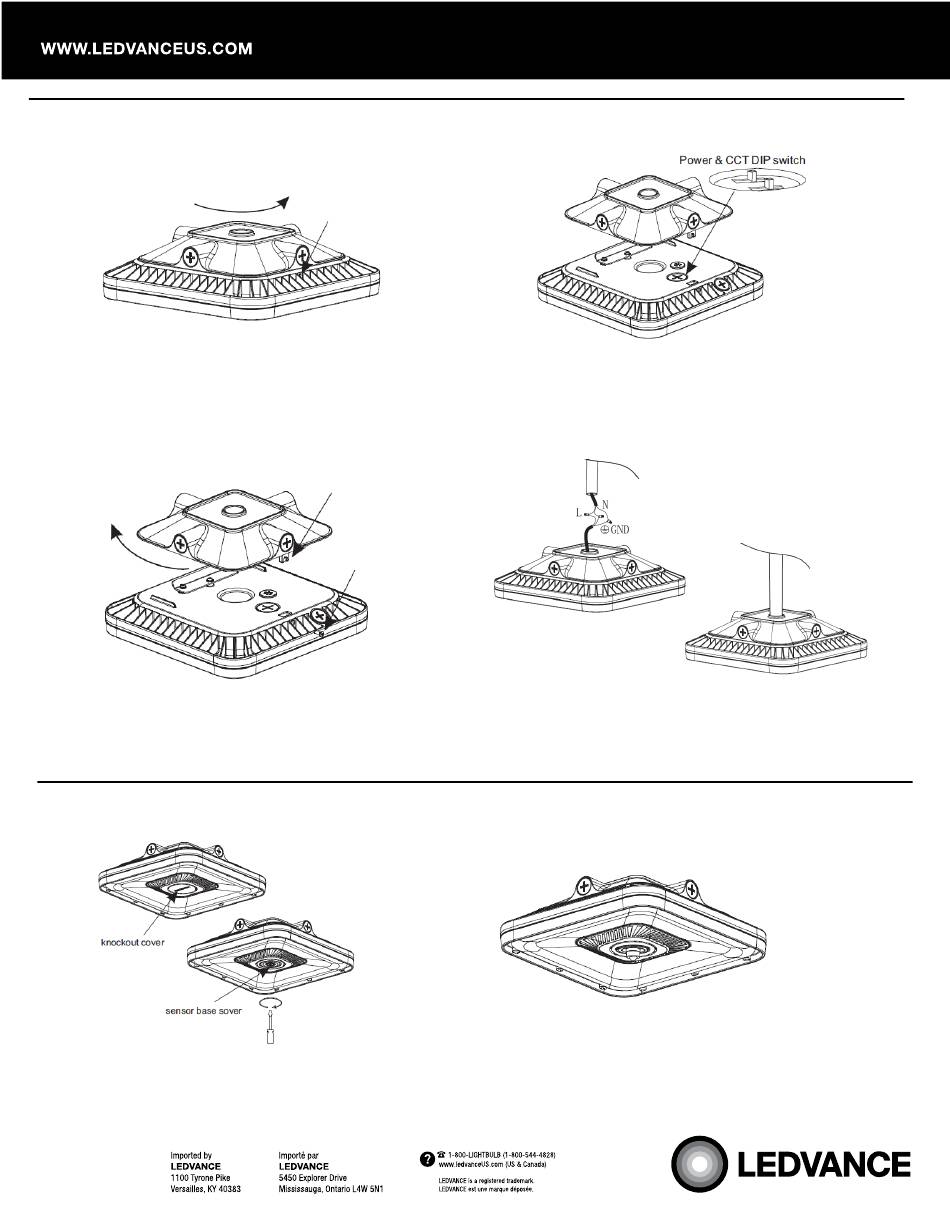

Installation: Pendant Mounting
1. Use a screwdriver to unscrew the limiting screw on the
side of the luminaire.
2. Rotate the top cover counterclockwise and detach it
from the luminaire.
6. Align the top cover limiting tabs with the luminaire's slot,
then rotate it counterclockwise.
7. Use the side limiting screw to secure the luminaire and
top cover in place.
Installation: Sensors (Optional Accessory)
1. Remove the knockout cover located at the front of
the luminaire by unscrewing it.
2. Use a screwdriver to unscrew the sensor base
cover
4270075
3. Use a screwdriver to open the knockout that covers the
wattage and CCT switches.
4. Select the desired CCT and wattage.
5. Screw the knockout cover back in its place.
8. Make the electrical connections according to the wiring
diagram provided.
9. Turn the luminaire clockwise to attach it to the ¾" NPT
pendant stem.
3. Insert the sensor into the 3-pin socket and
secure it by screwing it in place.
