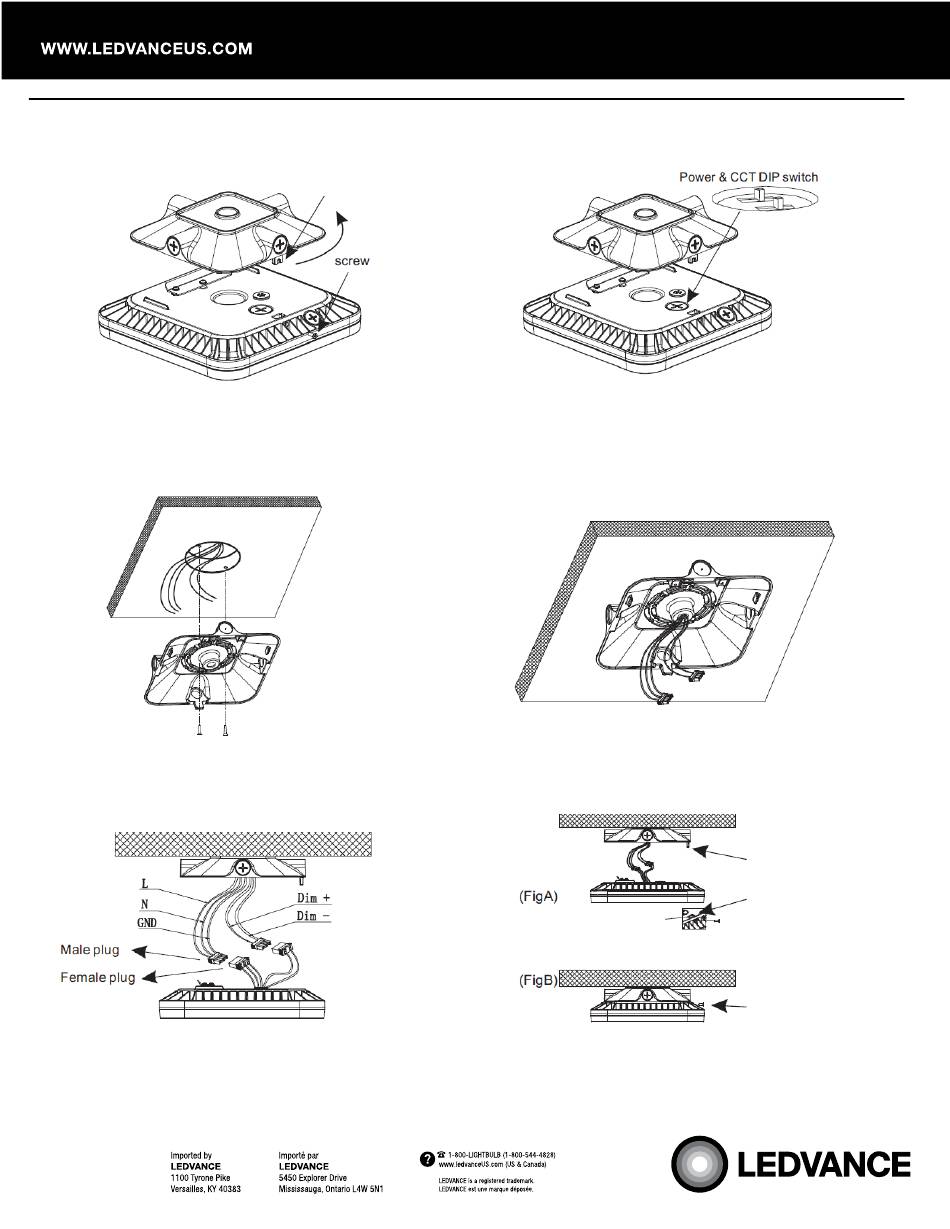

Installation: Surface Mounting
1. Use a screwdriver to unscrew the limiting screw on the
side of the luminaire.
2. Rotate the top cover and detach it from the luminaire.
6. Align the top cover with the junction box holes and open
the corresponding screw holes.
7. Make the electrical connection
9. Connect the quick connectors between the luminaire
and the top cover.
4270075
3. Use a screwdriver to open the knockout that covers the
wattage and CCT switches.
4. Select the desired CCT and wattage.
5. Screw the knockout cover back in its place.
8. Align the top cover with the junction box and secure with
screws. The top cover installation is complete.
10. Align the top cover limiting clips with the luminaire's slot
(Fig. A), then rotate it counterclockwise.
11. Use the side limiting screw to secure the luminaire in
place (Fig. B)
