1. Turn off the power before installation.
2. Remove the front of the light by
loosening the two screws (1) (Figure 1).
3. Drill two holes and insert the supplied
dowels (2). Use the mounting plate to mark
the exact position of the drill holes. Make
sure that the dowels are flush with the wall.
4. Pierce the rubber plug (3) and feed the
230 volt connection cable through the hole
that has now been created.
5. Mount the light on the wall using the
screws (5) supplied. To do this, insert the
supplied sealing rings between the
luminaire and the screws.
6. Connect your connection cable to the
luster terminal (4) as shown in Figure 2.
the output line in the same way.
7. Now close the housing and retighten the
screws (1).
8. Turn the power back on. The installation
is now complete.

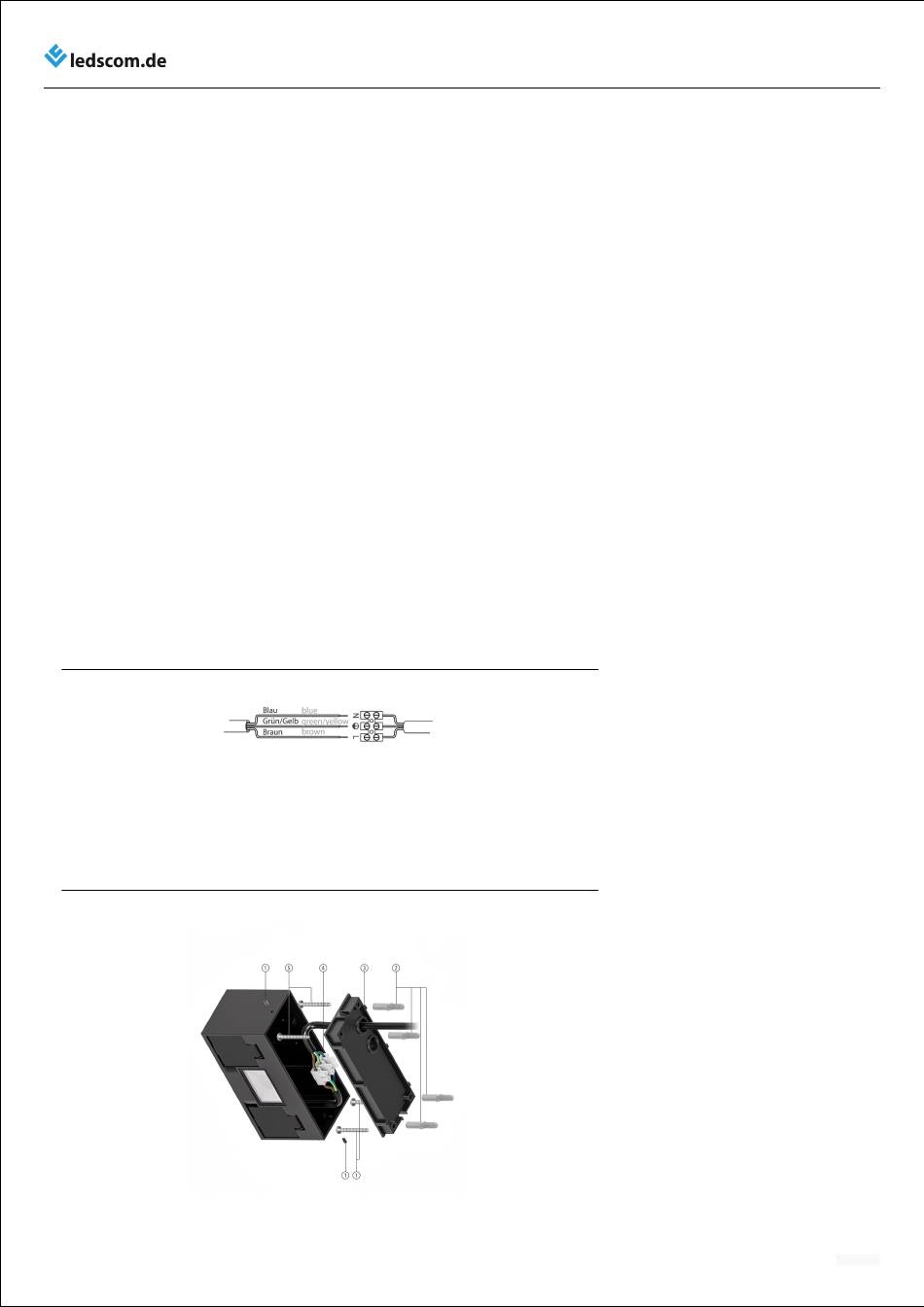

Figure 1
1: Screws
2: Dowel
3: Rubber plug
Figure 2
Subject to technical changes
English
4: Luster terminal
5: Screws
Socket (LC-L-401-WW) - Assembly instructions
05/2025
