Step 9: Add Legs
To add the Legs (v) first slide the Rubber Spacer (e) so it fits into the Aluminum Spacer (f). Take a M6 Bolt (d) and insert it through the
Side Panel (s,t), the Spacer Assembly and finally thread it into the Leg. Repeat this process for the remaining holes on each leg. Tighten
each M6 Bolt with the Allen Key (j). See Diagram 9 for assistance.
v
Step 10: Install Shelves
Insert a Shelf Pin Screw (l) through a Shelf Pin (k) and into the desired hole in the Side Panel (s,t). Tighten with a Phillips screw driver.
Repeat process until all 12 Shelf Pins are installed. See the Detailed View of Diagram 10 for assistance.
Place each Shelf (x) in cabinet so they fit on top of the Shelf Pins. Press down firmly until it locks into place. See Diagram 10 for
assistance.

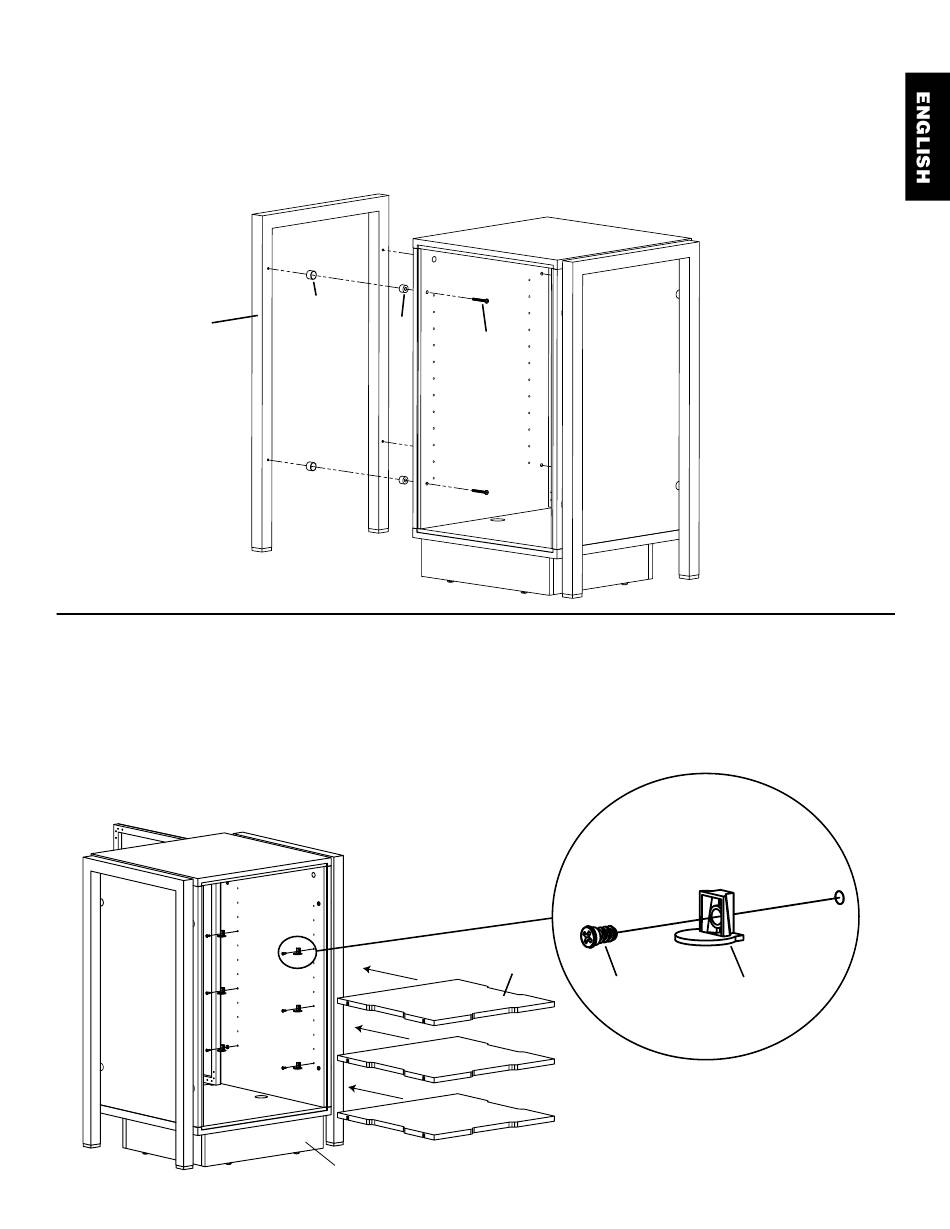

Diagram 9
f
e
d
Diagram 10
back of cabinet assembly
Detailed View
x
l
k
