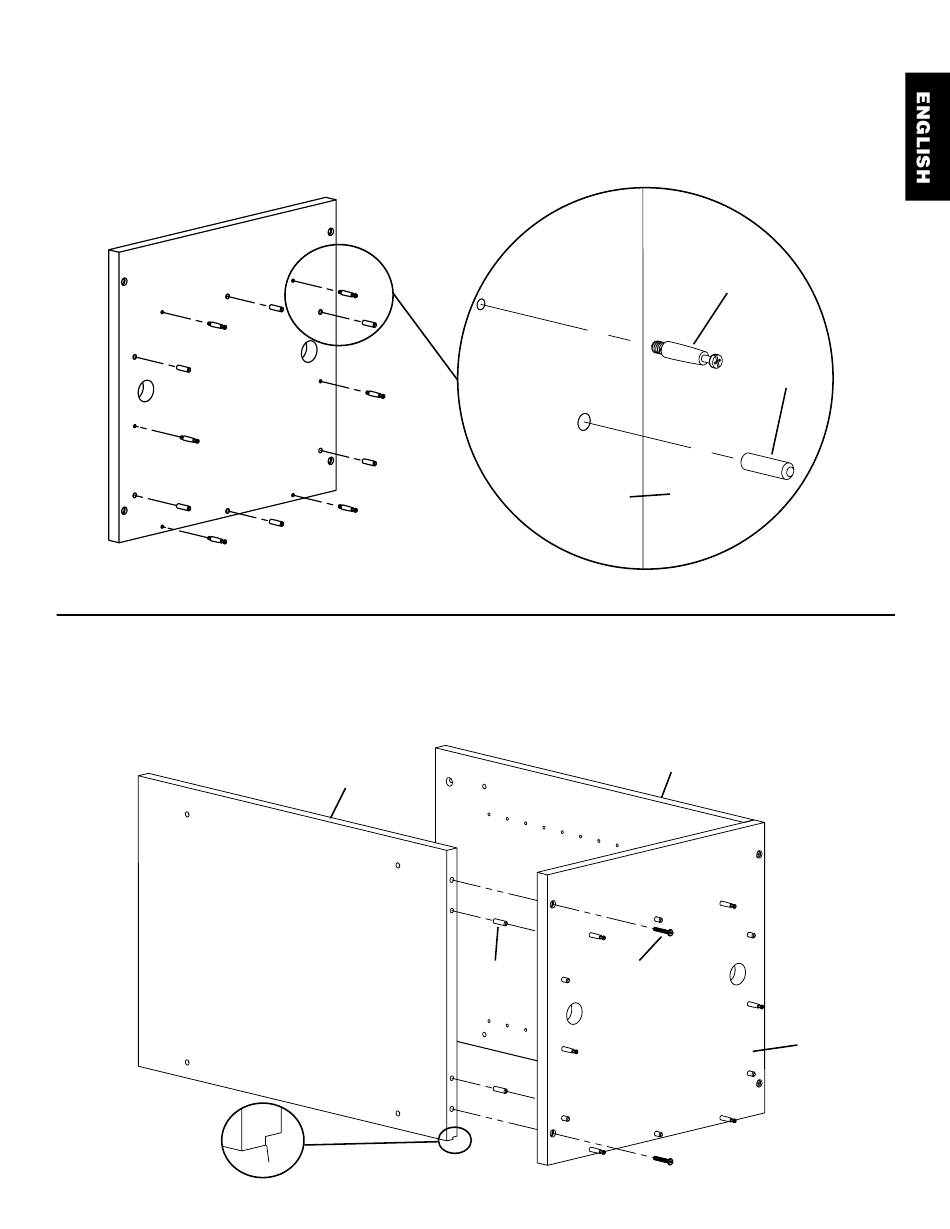

Step 1: Add Cam Pins and Dowels to Base
Thread a Cam Pin (b) into each threaded hole and insert a Dowel (c) into each adjacent hole in the Bottom (p). Tighten each with a
Phillips screw driver. See Diagram 1 for assistance.
Diagram 1
Step 2: Add Side Panels
Orient the Side Panels (s,t) so the notch is facing the ground and the shelf holes are facing each other. Insert a Dowel (c) into each hole
(closest to the center in the bottom of each Side Panel). Insert a Base Bolt (g) through the Bottom (p) and into each Side Panel. Tighten
each Base Bolt with the Allen Key (j). See Diagram 2 for Assistance.
s
notch
Detailed View
Diagram 2
c
g
b
c
p
t
p
