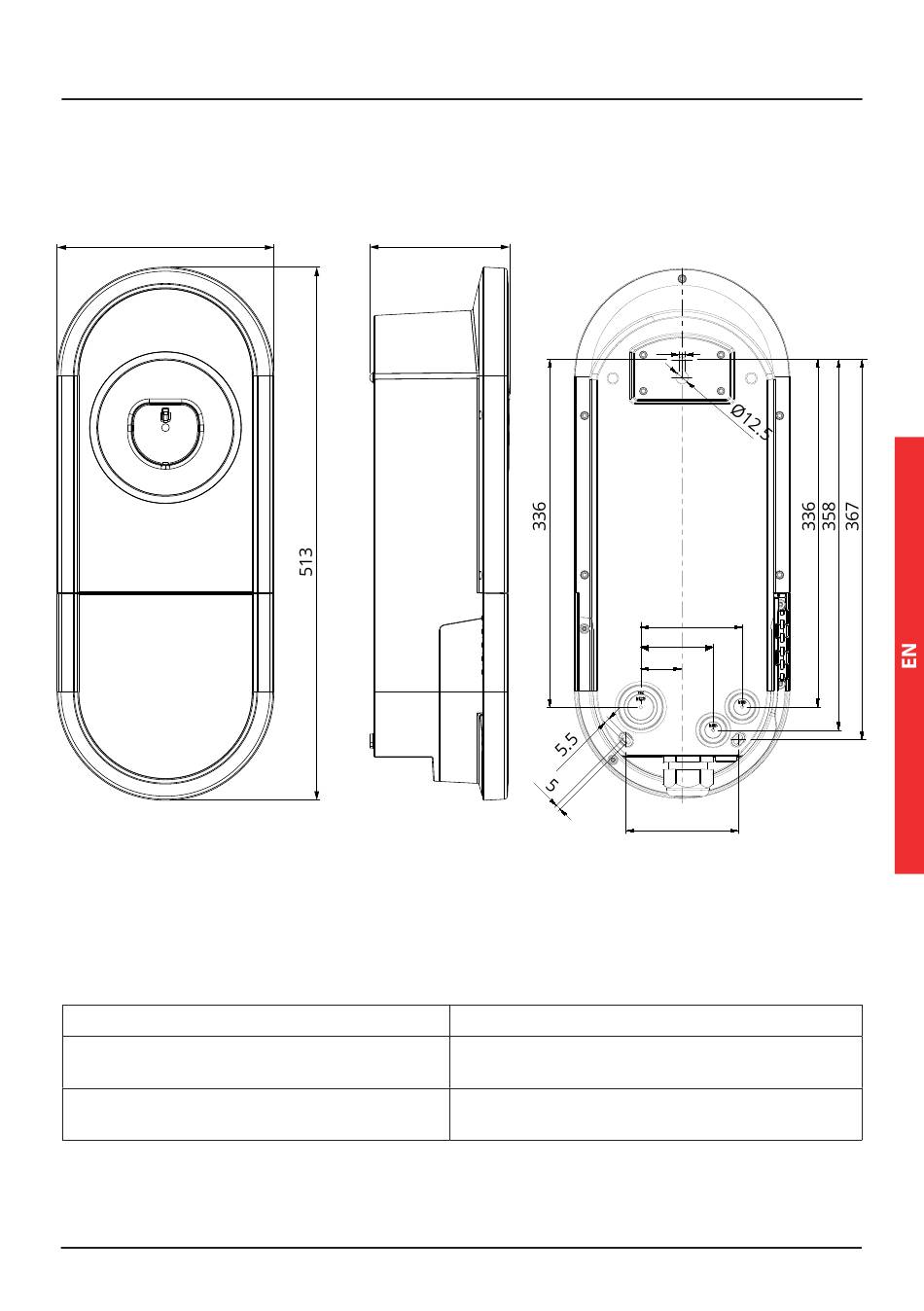

9. Dimension drawing

208

10. Troubleshooting

Charging station is off, no lights on
Issue
Mains voltage does not exist in supply connectors
(L1, L2, L3).
The circuit breaker QF1 is off
(0 570 11/ 0 570 13 / 0 570 15 / 0 570 17)
135
Make sure that the supply conductors are properly
connected. Make sure that there is power available.
Turn the QF1 on.
LERAK131B-FRENIT/20230502
EV Charging Station
5.5
98
70
40
109
Corrective action
43 / 68
