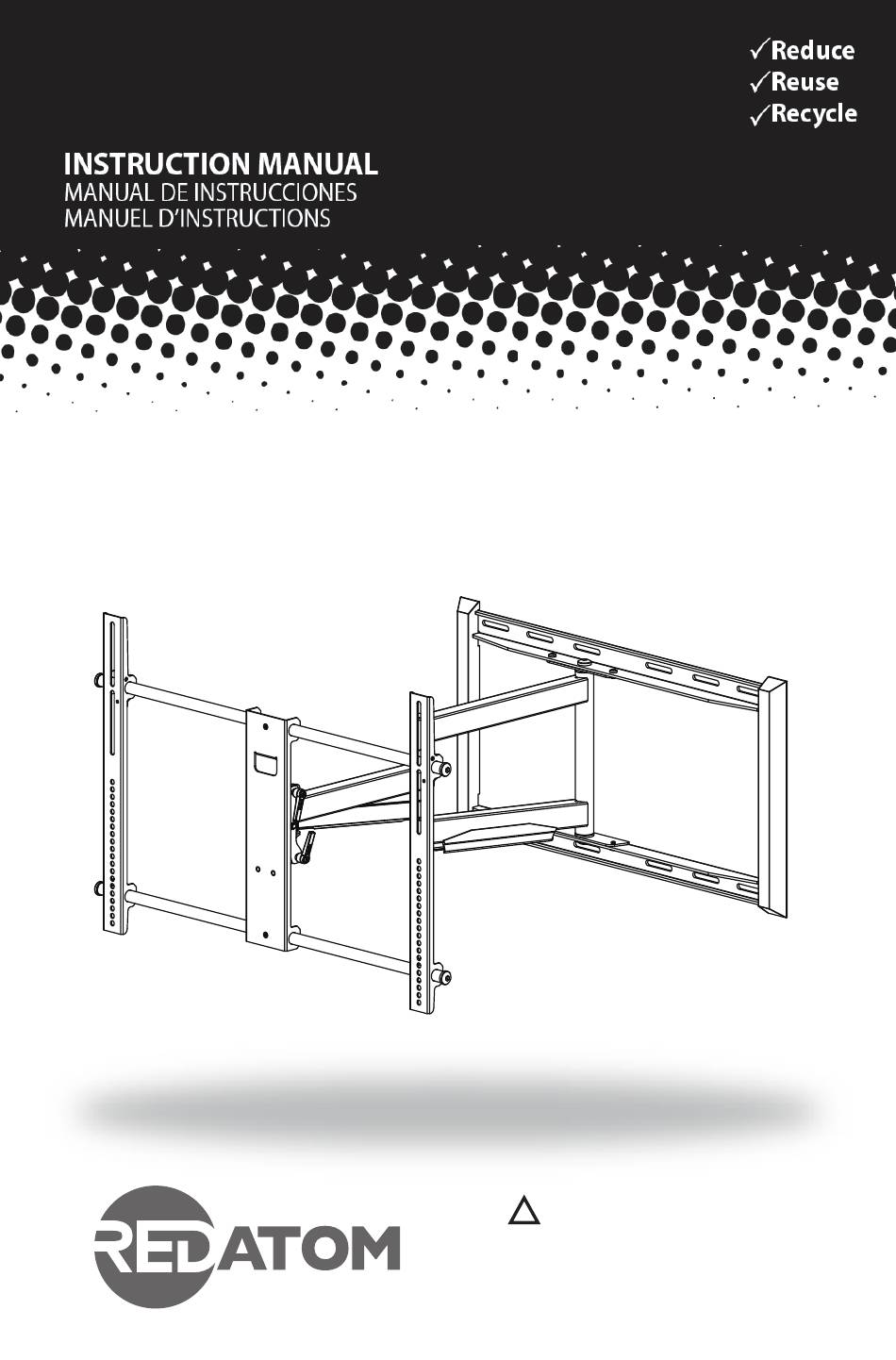

EXTRA LARGE FULL MOTION MOUNT
REDXC150
All manuals and user guides at all-guides.com
CAUTION: DO NOT EXCEED MAXIMU
LISTED WEIGHT CAPACITY. SERIOUS
!
CAUTION:
INJURY OR PROPERTY DAMAGE MAY
THE MAXIMUM LOADING WEIGHT
OCCUR!
IS 150 LBS. USE WITH PRODUCTS HEAVIER THAN
THE MAXIMUM WEIGHT INDICATED MAY RESULT IN
INSTABILITY AND POSSIBLE PERSONAL INJURY.
Extra Large Full Motion Mount
Max Screen Size: 80"
Max Screen Size: 90"
Max Weight: 150 LBS
V2
P 1
Publicité
Manuels Connexes pour REDATOM REDXC150
Sommaire des Matières pour REDATOM REDXC150
- Page 1 All manuals and user guides at all-guides.com EXTRA LARGE FULL MOTION MOUNT REDXC150 CAUTION: DO NOT EXCEED MAXIMU LISTED WEIGHT CAPACITY. SERIOUS CAUTION: INJURY OR PROPERTY DAMAGE MAY THE MAXIMUM LOADING WEIGHT OCCUR! IS 150 LBS. USE WITH PRODUCTS HEAVIER THAN THE MAXIMUM WEIGHT INDICATED MAY RESULT IN INSTABILITY AND POSSIBLE PERSONAL INJURY.
- Page 2 QUESTIONS? All manuals and user guides at all-guides.com NEED HELP? PLEASE CALL info@redatomproducts.com DISCLAIMER – WARNING INFORMATION Disclaimer –. RED ATOM has extended every effort to ensure to accuracy and completeness of this manual. However, RED ATOM does not claim that the information covers all installation and or operational variables.
- Page 3 HARDWARE PRODUCT NUMBERS All manuals and user guides at all-guides.com M6 x 30 M8 x 30 M4 x 30 SQUARE M8 x 15 M6 x 15 M4 x 12 SPACER WASHER M8 x 50 LAG BOLT LAG BOLT WALL STEEL 10mm ALLEN ANCHOR...
- Page 4 CORNER MOUNTING INFORMATION All manuals and user guides at all-guides.com The Extra Large Full Motion Mount can be installed in a corner location when needed. Prior to installing the Mount it is impor- tant to determine the approprite corner wall to install the mount.
- Page 5 STEP 1- FLAT BACK FLAT PANEL (UNIVERSAL MONITOR PLATE) All manuals and user guides at all-guides.com Connect Universal Monitor Plate to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur STEP 1- CURVED BACK FLAT PANEL (UNIVERSAL MONITOR PLATE) Connect Universal Monitor Plate to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur...
- Page 6 STEP 1- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT All manuals and user guides at all-guides.com ARE TOO LONG Diagrams show three options for using additional washers if hardware screws are too long to properly tighten into back of flat panel television.
- Page 7 STEP 3A- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 3B) All manuals and user guides at all-guides.com Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE DRILL BIT WITH INCLUDED...
- Page 8 STEP 3A – DRILL PILOT HOLE AND MOUNT WALL PLATE AND ARM ASSEMBLY All manuals and user guides at all-guides.com Mount wall plate Coloque la placa de pared Montez la plaque murale Secure lag bolts with steel washer to Wall Plate STEP 3B –...
- Page 9 STEP 3B- USE TEMPLATE TO MARK WALL FOR PILOT HOLES All manuals and user guides at all-guides.com STEP 3B – DRILL PILOT HOLES AND MOUNT WALL PLATE AND ARM ASSEMBLY Insert Wall Anchors into Concrete Wall Secure Lag Bolts to Wall Bracket...
- Page 10 STEP 4- ATTACH UNIVERSAL MOUNT BRACKET TO ARM ASSEMBLY & WALL All manuals and user guides at all-guides.com BRACKET Heavy, Assistance Required TRES LOURD ! Cette etape requiert deux personnes !PESADO! Necesitara ayuda para realizar esta operacion STEP 5- SECURE MONITOR PLATE TO ARM ASSEMBLY Secure Acorn Nut and Washer on Monitor Plate to...
- Page 11 STEP 6 - ADJUST TILT TENSION/ POST INSTALLATION LEVEL All manuals and user guides at all-guides.com Adjust tilt mechanism tension with ratchet handle lever Rotate ratchet a) Rotate handle clockwise as far as handle lever possible. clockwise for tensioning tilt b) Pull handle to side mechanism.
- Page 12 WARRANTY INFORMATION All manuals and user guides at all-guides.com This warranty applies to US Residents who purchase from an authorized RED ATOM Dealer. RED ATOM products are covered against defects in materials and workmanship for 5 years. RED ATOM will repair or replace the defective component or product, at its sole discretion. Failure to follow product care instructions from RED ATOM will result in void of warranty.
