REDATOM REDLC125 Manuel D'instructions

Masquer les pouces

Publicité

Liens rapides

Télécharger ce manuel
LARGE FULL MOTION MOUNT
REDLC125
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
CAUTION: DO NOT EXCEED MAXIMUM
LISTED WEIGHT CAPACITY. SERIOUS
!
CAUTION:
INJURY OR PROPERTY DAMAGE MAY
THE MAXIMUM LOADING WEIGHT
OCCUR!
IS 130 LBS. USE WITH PRODUCTS HEAVIER THAN
THE MAXIMUM WEIGHT INDICATED MAY RESULT IN
Large Full Motion Mount
INSTABILITY AND POSSIBLE PERSONAL INJURY.
Max Screen Size: 70"
Max Screen Size: 80"
Max weight: 125lbs
V4
V5

Publicité

loading

Manuels Connexes pour REDATOM REDLC125

Sommaire des Matières pour REDATOM REDLC125

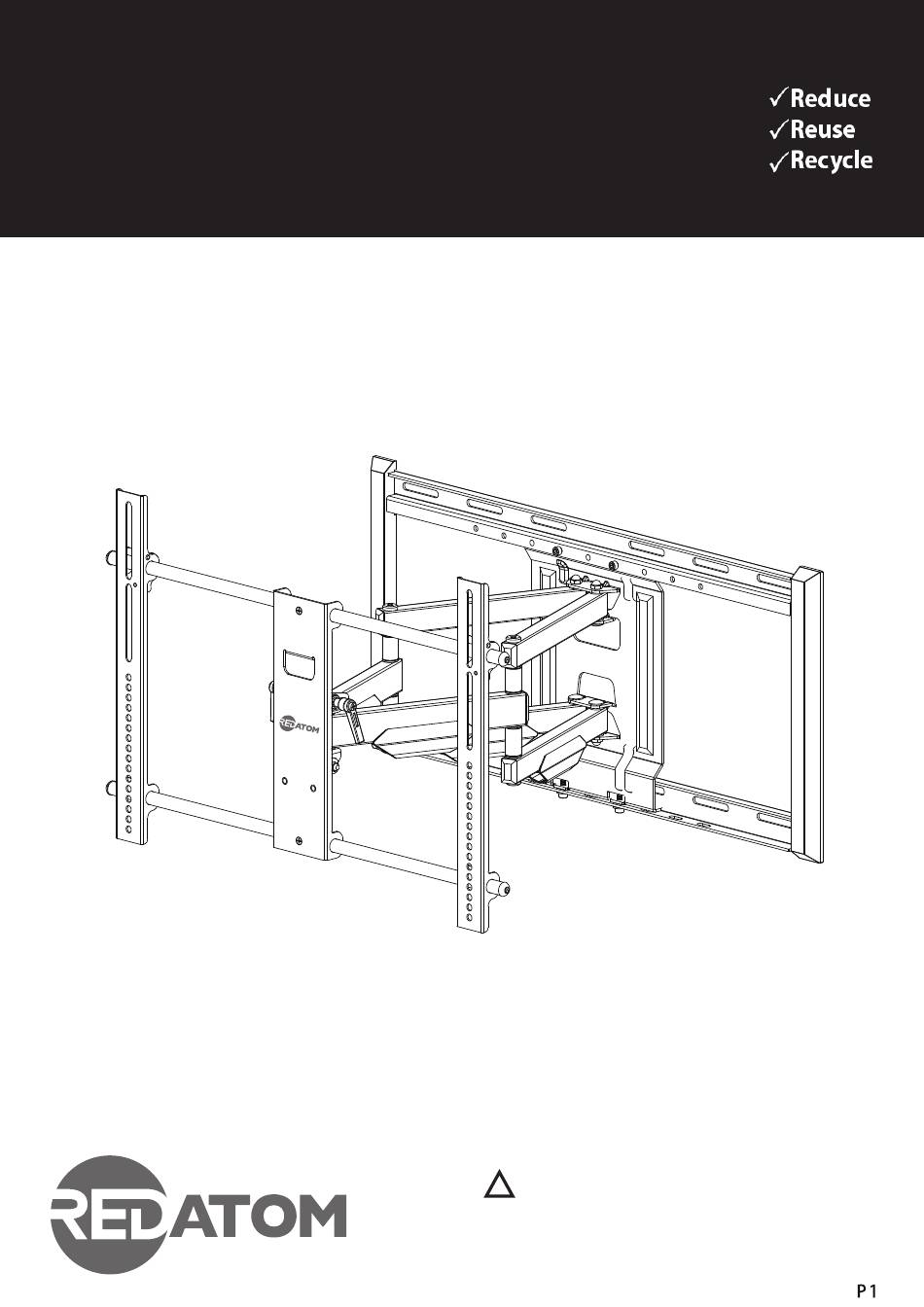

  • Page 1 LARGE FULL MOTION MOUNT REDLC125 INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUEL D’INSTRUCTIONS CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS CAUTION: INJURY OR PROPERTY DAMAGE MAY THE MAXIMUM LOADING WEIGHT OCCUR! IS 130 LBS. USE WITH PRODUCTS HEAVIER THAN...

  • Page 2: Need Help

    QUESTIONS? NEED HELP? info@redatomproducts.com DISCLAIMER – WARNING INFORMATION Disclaimer –. RED ATOM has extended every effort to ensure to accuracy and completeness of this manual. However, RED ATOM does not claim that the information covers all installation and or operational variables. The information contained in this document is subject to change without notice or obligation of any kind. Regarding the information contained herein, RED ATOM makes no representation of warranty, expressed or implied, and assumes no responsibility for accuracy, sufficiency, or completeness of the information contained in this document.
  • Page 3 SQUARE M8 x 30 M4 x 30 M6 x 30 M8 x 15 M6 x 15 M4 x 12 SPACER WASHER M8 x 50 WALL LAG BOLT LAG BOLT STEEL 10mm ALLEN LLEN WASHER ANCHOR 8mm x 65mm STEEL WASHER ACORN SPACER WASHER...
  • Page 6 STEP 1- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT ARE TOO LONG Diagrams show three options for using additional washers if hardware screws are too long to properly tighten into back of flat panel television. select the proper spacers or spacer suit as below if necessary STEP 2A...
  • Page 7 STEP 2B- SECURE UNIVERSAL MONITOR PLATE VERTICAL RAILS Secure vertical rails to horizontal chrome rod on Monitor Plate with pre-installed screws. STEP 2C - PRIOR TO EXTENDING ARMS REMOVE ARM ASSEMBLY FROM WALL PLATE Prior to extending arms： Remove 2 Inner Hex screws at top of Arm Assembly.
  • Page 8 STEP 3A- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO 3B) Find stud and mark edge and center locations Ubique el TV y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. LEVEL WALL PLATE DRILL BIT WITH INCLUDED...
  • Page 9 STEP 3B – SOLID CONCRETE INSTALLATION Solid Concrete Drill Bit Level Drill pilot hole Concreto sólido S. broca Nivelado Realice el agujero piloto Béton massif Foret Level Percez le trou de guidage DRILL BIT LEVEL WALL PLATE NOT INCLUDED WITH INCLUDED BUBBLE LEVEL AND MARK HOLES FOR DRILL BIT PILOT HOLE...

  • Page 10: Important

    STEP 4 - ATTACH MOUNT ASSEMBLY TO WALL PLATE Position Arm Assembly to desired lateral position on wall plate for optimum placement of TV. Secure Arm Assembly to Wall plate using screws removed from Step 2. IMPORTANT! Ensure that the top of the arm assembly tucks INSIDE the top of the wall plate.
  • Page 11 STEP 6 - SECURE MONITOR PLATE TO ARM ASSEMBY Secure Acorn Nut and Washer on Monitor Plate to Arm Assembly Allen Wrench M6 Washer M6 Acorn Nut STEP 7 - ADJUST TILT TENSION/ POST INSTALLATION LEVEL Built-in level feature for post installation Adjust tilt mechanism tension with ratchet handle levers (follow steps A-C with both handles) correction...

  • Page 12: Warranty Information

    WARRANTY INFORMATION This warranty applies to US Residents who purchase from an authorized RED ATOM Dealer. RED ATOM products are covered against defects in materials and workmanship for 5 years. RED ATOM will repair or replace the defective component or product, at its sole discretion. Failure to follow product care instructions from RED ATOM will result in void of warranty. To obtain warranty service, contact RED ATOM customer service at info@redatomproducts.com.
