Extra Large Fixed TV Mount
REDXLFOPEN175P
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
!
CAUTION:
THE MAXIMUM LOADING WEIGHT IS
175LBS. USE WITH PRODUCTS HEAVIER THAN THE
MAXIMUM WEIGHT INDICATED MAY RESULT IN
INSTABILITY AND POSSIBLE PERSONAL INJURY.
Max Screen Size: 90"
V4
V1
P1
Publicité
Manuels Connexes pour REDATOM REDXLFOPEN175P
Sommaire des Matières pour REDATOM REDXLFOPEN175P

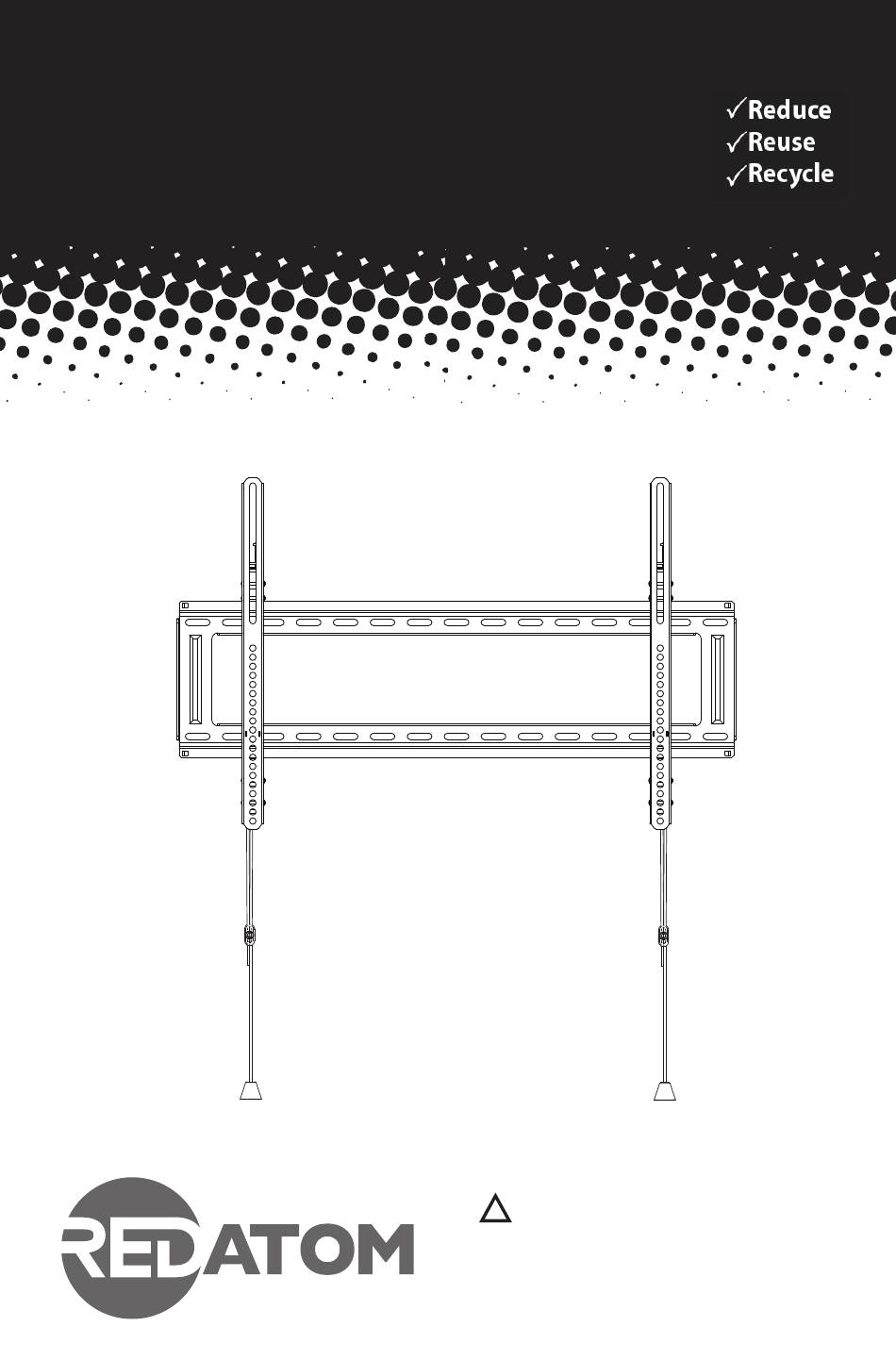

- Page 1 Extra Large Fixed TV Mount REDXLFOPEN175P INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES MANUEL D’INSTRUCTIONS CAUTION: THE MAXIMUM LOADING WEIGHT IS 175LBS. USE WITH PRODUCTS HEAVIER THAN THE MAXIMUM WEIGHT INDICATED MAY RESULT IN INSTABILITY AND POSSIBLE PERSONAL INJURY. Max Screen Size: 90”...
- Page 2 QUESTIONS? NEED HELP? PLEASE CALL info@redatomproducts.com DISCLAIMER – WARNING INFORMATION Disclaimer –. RED ATOM has extended every effort to ensure to accuracy and completeness of this manual. However, RED ATOM does not claim that the information covers all installation and or operational variables. The information contained in this document is subject to change without notice or obligation of any kind. Regarding the information contained herein, RED ATOM makes no representation of warranty, expressed or implied, and assumes no responsibility for accuracy, sufficiency, or completeness of the information contained in this document.
- Page 3 HARDWARE PRODUCT NUMBERS M4 x 30 M6 x 30 M8 x 30 M4 x 12 M6 x 15 M8 x 15 M8 x 45 LAG BOLT WALL SQUARE LAG BOLT 10mm STEEL 8mm x 65mm ANCHOR WASHER SPACER STEEL WASHER SPACER WASHER PRODUCT COMPONENT PARTS...
- Page 4 STEP 1A - FLAT BACK FLAT PANEL (VERTICAL RAILS) Connect Vertical Rails to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur STEP 1B - CURVED BACK FLAT PANEL (VERTICAL RAILS) Connect Vertical Rails to flat panel Conecte el adaptador al monitor Connectez l'adaptateur au moniteur Spacers can also be used to provide clearance for cables...
- Page 5 STEP 1- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT ARE TOO LONG Diagrams show three options for using additional washers if hardware screws are too long to properly tighten into back of flat panel television. select the proper spacers or spacer suit as below if necessary...
- Page 6 STEP 2- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO STEP 3) STEP 2- CENTER UNIVERSAL MONITOR PLATE Find stud and mark edge and center locations Ubique el panel y marque las ubicaciones de los bordes y el centro. Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre. ”) 60mm STEP 2A &...
- Page 7 STEP 2C- MOUNT WALL PLATE TO WALL Mount wall plate Coloque la placa de pared Montez la plaque murale Works with 16” or 24” stud spacing.
- Page 8 STEP 3 – SOLID CONCRETE INSTALLATION Use wall plate to mark mounting locations/ drill pilot holes Use la placa de pared para marcar el lugar donde se realizará la instalación Utilisez la plaque murale pour marquer l'emplacement de montage Level Solid Concrete Drill Bit Drill Pilot Hole...
- Page 9 STEP 3C- SOLID CONCRETE INSTALLATION. Mount wall plate Coloque la placa de pared Montez la plaque murale Insert wall Anchors gently into concrete wall with hammer if necessary Concrete Wall Concrete Wall Hammer...
- Page 10 STEP 4A- ATTACH PANELTO WALL PLATE & ADJUST TILT ANGLE Hang vertical rails with monitor attached Cuelgue con el monitor adherido. Accrochez avec le moniteur installé. Flat Panel Vertical Rails Pull spring lock cord down and gently push bottom of panel to wall and release spring lock.
- Page 11 STEP 4C- ADDITIONAL SECURITY FEATURE (OPTIONAL) Option Opcione Option Vertical Rails Flat Panel Wall Plate Vertical Rails have 7mm hole located at the bottom for placement of pad lock for additional theft) security (pad lock not included) STEP 4D - ADJUST STRAP LENGTH (OPTIONAL) Squeeze and hold control to adjust...
- Page 12 WARRANTY INFORMATION This warranty applies to US Residents who purchase from an authorized RED ATOM Dealer. RED ATOM products are covered against defects in materials and workmanship for 5 years. RED ATOM will repair or replace the defective component or product, at its sole discretion. Failure to follow product care instructions from RED ATOM will result in void of warranty.
