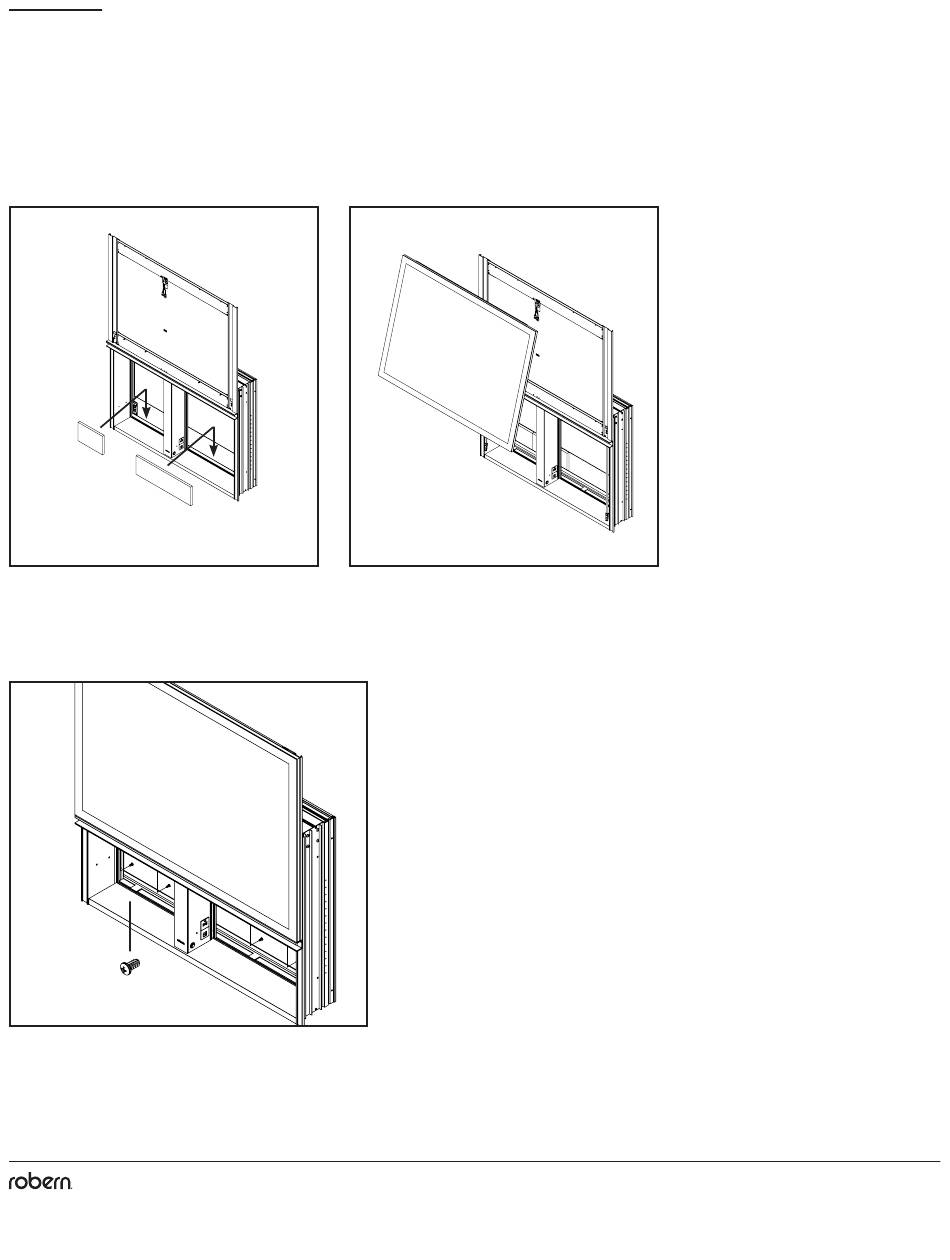

STEP 3 - FINAL ASSEMBLY
1. Raise door frame and install counterweight, (supplied with cabinets) in counterweight tray (inside rear of cabinet). Door should
remain open.
2. Carefully hang door mirror on door frame.
1
3. Make door electrical connections to door mirror (if equipped-depends on model).
4. Secure door mirror to door frame by installing 4 screws (203-1126) on the inside lower edge of door frame. Do not over tighten.
4
CB-SS136
QTY: 2
[203-1126]
CB-203-1126
QTY: 6
5a. Lower and raise door to check proper operation.
5b. Verify door can be opened partially and will stay when released.
6. Apply electrical power to cabinet and check all functions.
© 2019 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376
www.robern.com
Installation instructions
2
12
Part no. 209-1311-rA rev. 06/13/19
Uplift Tech Cabinet
