STEP 2 - ELECTRICAL CONNECTIONS

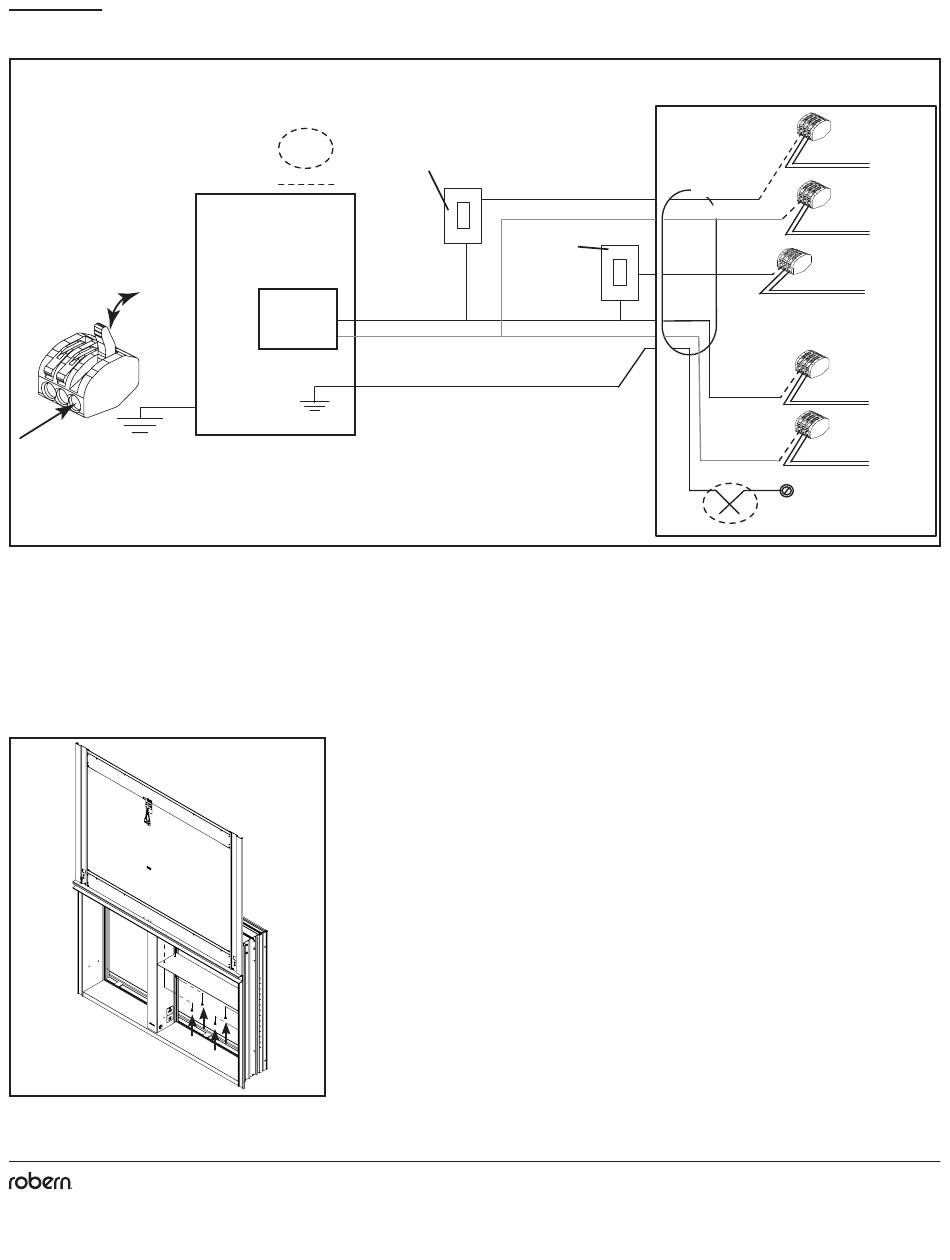

Connection for E2 and E4 - With Door Light and Manual Control Night Light
3. Reinstall the ceiling panel.
4. Return to the appropriate page and continue the correct mounting installation.
Recess Mounting on page 5, Surface Mounting on page 7, or Semi-Surface Mounting on page 9
3
© 2019 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376
www.robern.com
Installation instructions
Field Connection
Circuit Breaker
Black (L)
120 VAC
20A GFI
White (N)
Wall-mounted
Dimmer/switch
Black (L)
White (N)
Wall-
mounted
night light
switch
Black (L)
White (N)
Green (G)
11
Red (L)
Black (L)
Circuit
White (N)
White (N)
Yellow (L)
Black (L)
Black (L)
Cabinet
White (N)
White (N)
Ground (G)
Part no. 209-1311-rA rev. 06/13/19
Uplift Tech Cabinet
Door
Light
Night
Light
Circuit
Power
Circuit
