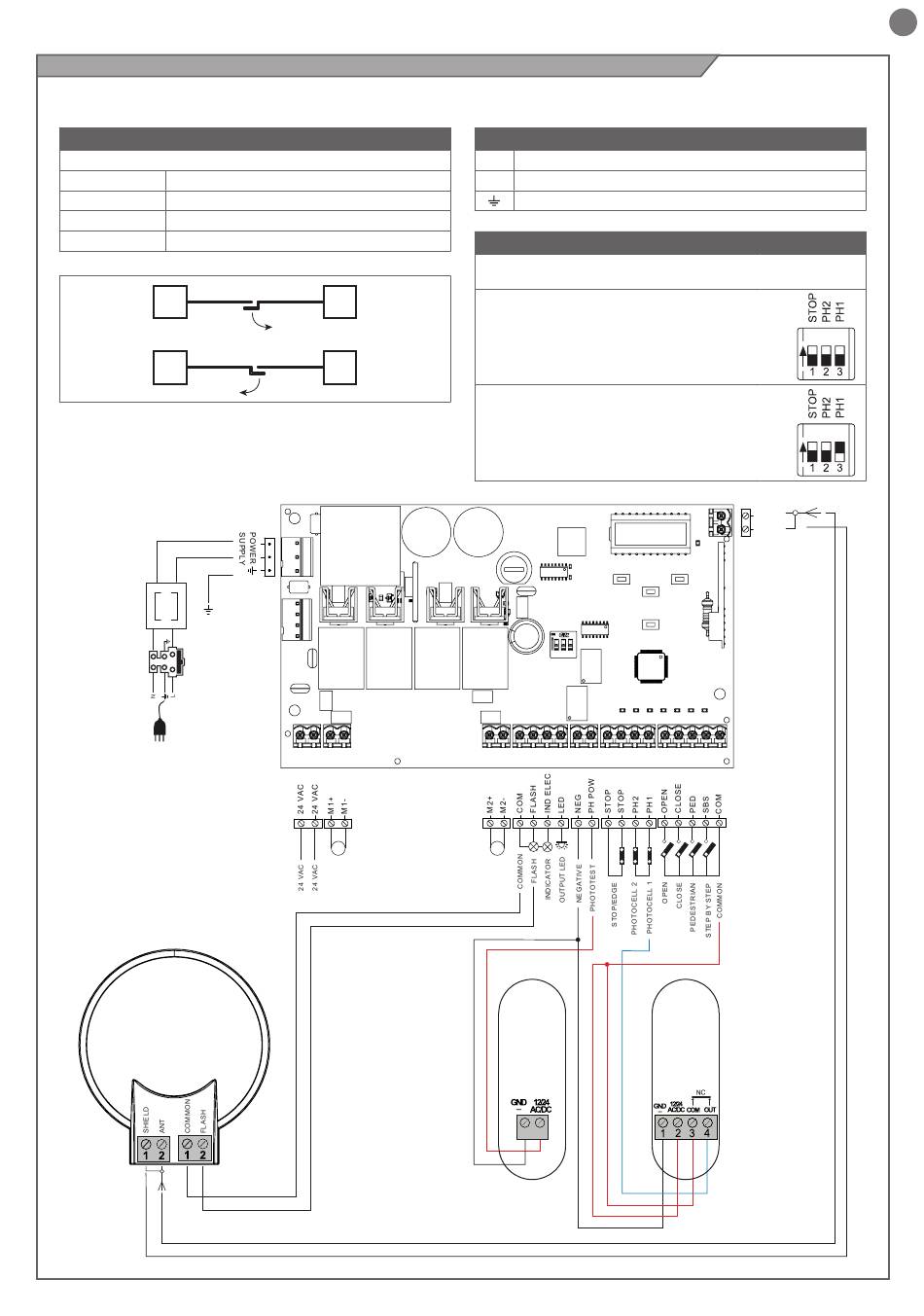

4.5 - Electrical connections
WARNING - Before making the connections, ensure that the control unit is not powered up.
MOTOR CONNECTION
Power supply connection terminal board
M1 +
Power supply of motor M1 +
M1 -
Power supply of motor M1 -
M2 +
Power supply of motor M2 +
M2 -
Power supply of motor M2 -
M2
M1
230Vac
50/60Hz
T1,6A
M1
M2
BATTERY
M1
COM
FLASH
POWER SUPPLY CONNECTOR
L
Power supply live 230 Vac (120 Vac) 50-60 Hz
N
Power supply neutral 230 Vac (120 Vac) 50-60 Hz
Earth
DIP SWITCH
Set on "ON" to disable inputs STOP, PH1, PH2
Eliminates the need to bridge the terminal board inputs.
WARNING - With the dip switch ON, the
safety devices are disabled
EXAMPLE: With only 1 photocell
connected set STOP and PH2 to ON
UP
+
MENU
SBS
M2
PH1
TX
1
2
ON
OFF
ON
OFF
ANT
SHIELD
DOWN
(RADIO)
-
PH1
RX
EN
33
