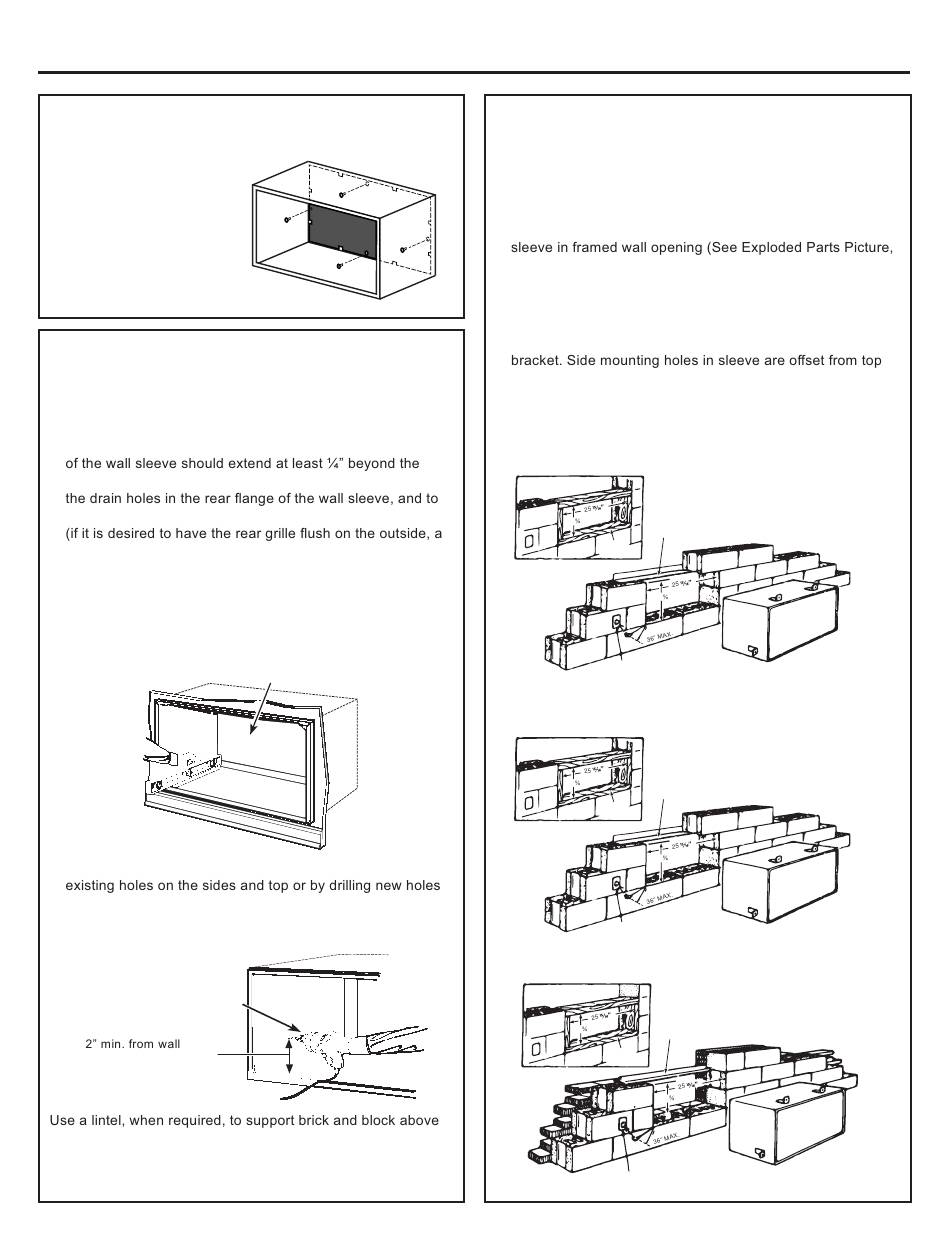

GE RAB24 Instructions D'installation page 3

INSTALLATON OF WEATHER BARRIER (cont)
3. Insert the push pins into the 4 holes in the weather
barrier.
* Remove weather barrier
prior to unit installation/
operation*
STEP 3: Installation of the wall sleeve in
the wall opening
OPTION 1
1. Position the wall sleeve into the wall. Refer to chart on
page 1 for roomside projection. The rear (outside) edge
outside wall to be able to caulk properly and prevent sealing
facilitate easy installation of an accessory drain, if desired.
drip rail must be installed under the wall sleeve and caulking
applied between the drip rail and wall sleeve.)
IMPORTANT:
Install wall sleeve level from side to side and with a slight
tilt from front to rear. Use a level; no more than a ¼ bub-
ble will be the correct wall sleeve slant to the outside.
2. Firmly secure the wall sleeve to the wall structure using the
in the appropriate location. Do NOT drill any holes in the
bottom of the wall sleeve. Use appropriate screws, lag
bolts, etc. to attach the wall sleeve to the wall structure.
Secure wall sleeve
Secure case through
through side and / or
side and/or top only
top only
2" min. from
sleeve bottom
case bottom
the wall sleeve.
NOTE: Do not drill any holes in the wall sleeve for electrical
connections.
Installation Instructions
Inside wall
Inside wall
STEP 3: Installation of the wall sleeve in
the wall opening (cont.)
OPTION 2
Installation of the wall sleeve into wall using
mounting brackets
1. Use Mounting Brackets provided for proper positioning of
Page 2). Select either front or rear set of 4 sleeve mounting
holes, which when aligned with one of the mounting bracket
holes, provides the desired projection of the sleeve into
room. Remove 4 plastic hole plugs from plastic bag of
the included parts. Fasten brackets to sleeve with screws
furnished, using same hole location in each mounting
mounting holes to give sleeve proper rearward slope to
outside. Install plastic hole plugs in empty holes.
Alternate applications using wall sleeve mounting brackets
Frame Construction and Brick Veneer
(Frame Opening Minimum Dimensions)
ALTERNATE OPENING
15 "
2 x 4
FRAMING
ELECTRICAL WALL
RECEPTACLE
Solid Masonary Construction - Block
(Frame Opening Minimum Dimensions)
ALTERNATE OPENING
15 "
2 x 4
FRAMING
ELECTRICAL WALL
RECEPTACLE
Solid Masonary Construction - Brick and Block
(Frame Opening Minimum Dimensions)
ALTERNATE OPENING
15 "
2 x 4
FRAMING
ELECTRICAL WALL
RECEPTACLE
3
LINTEL PURCHASED LOCALLY
15 "
SLEEVE
LINTEL PURCHASED LOCALLY
15 "
SLEEVE
LINTEL PURCHASED LOCALLY
15 "
SLEEVE
