Expansion card -DeviceNet-
Expansion card -DeviceNet-
This flyer describes the DeviceNet expansion card for S300/S600/S700.
Information on the range of functions and the software protocol can be found in the
manual "DeviceNet communication profile".
Fitting the expansion card
To fit the DeviceNet expansion card into a S300/S600/S700, proceed as follows:
l
Use a suitable screwdriver to lever off the cover of the option slot.
l
Take care that no small items (such as screws) fall into the open option slot.
l
Push the expansion card carefully into the guide rails that are provided, wit-
hout twisting it.
l
Press the expansion card firmly into the slot, until the front cover touches the
fixing lugs. This ensures that the connectors make good contact.
l
Screw the screws on the front cover into the threads in the fixing lugs.
Combined Module/Network Status LED
LED is
off
green
flashing
green
flashing
red
red

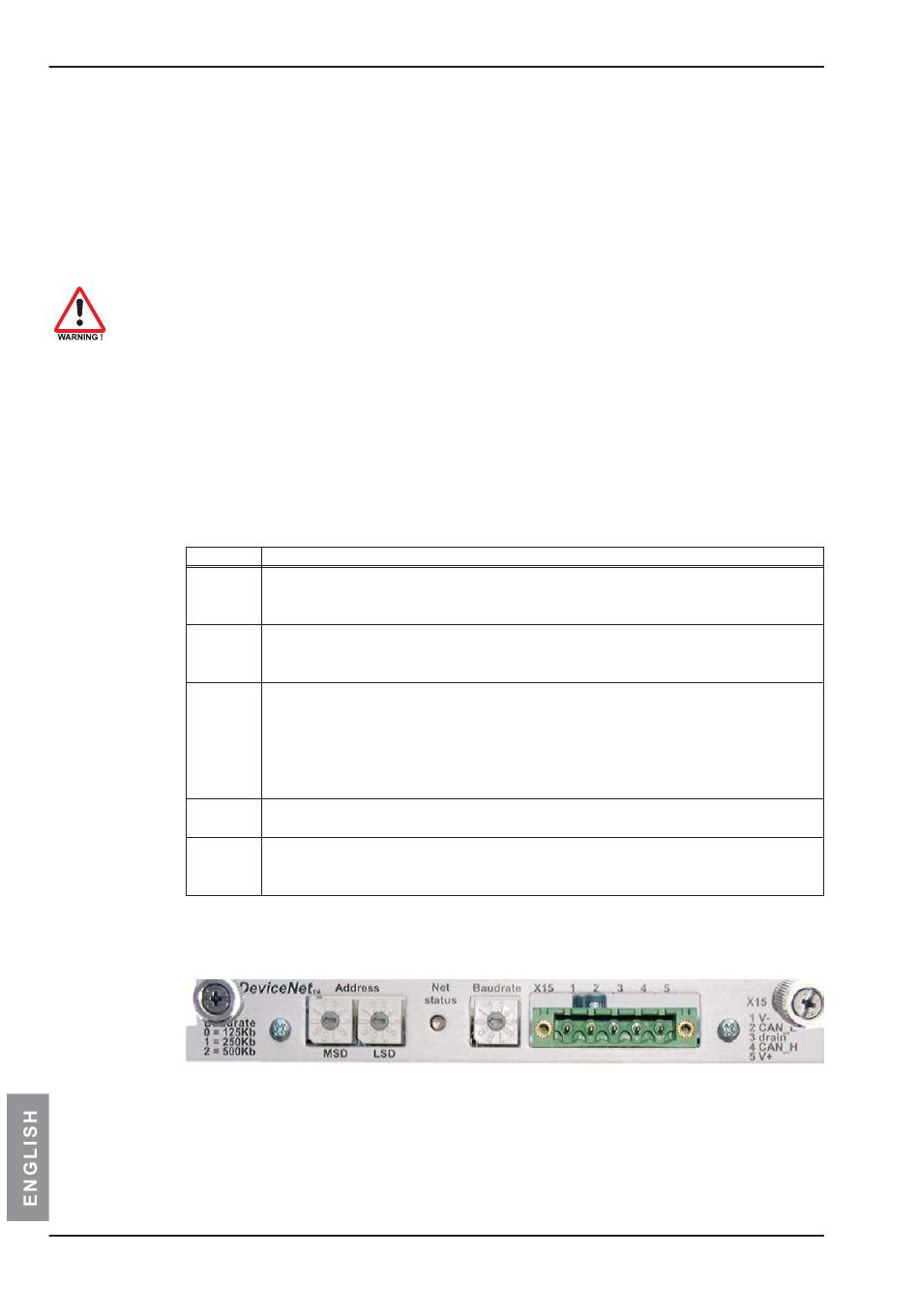

Front view
Connection technology
Cable selection, cable routing, shielding, bus connector, bus termination and transmis-
sion times are all described in the "DeviceNet specification, volumes I, II", published by
ODVA
6
04/2012
To indicate:
Device is not online.
-
The device has not completed the Dup_MAC_ID test yet.
-
The device may not be powered.
The device is operating in a normal condition and the device is online with connections
in the established state.
-
The device is allocated to a Master
The device is operating in a normal condition and the device is online with no connec-
tions in the established state.
-
The device has passed the Dup_MAC_ID test, is online, but has no established
connections to other nodes.
-
This device is not allocated to a master.
-
Configuration missing, incomplete or incorrect.
Recoverable fault and/or one or more I/O Connections are in the Timed–Out state.
-
The device has an unrecoverable fault; may need replacing.
-
Failed communication device. The device has detected an Error that has rendered
it incapable of communicating on the network (e.g. Duplicate MAC ID, or Bus–off).
Expansion Card for S300/S600/S700
