Legacy Levelwind Serie Mode D'emploi page 4

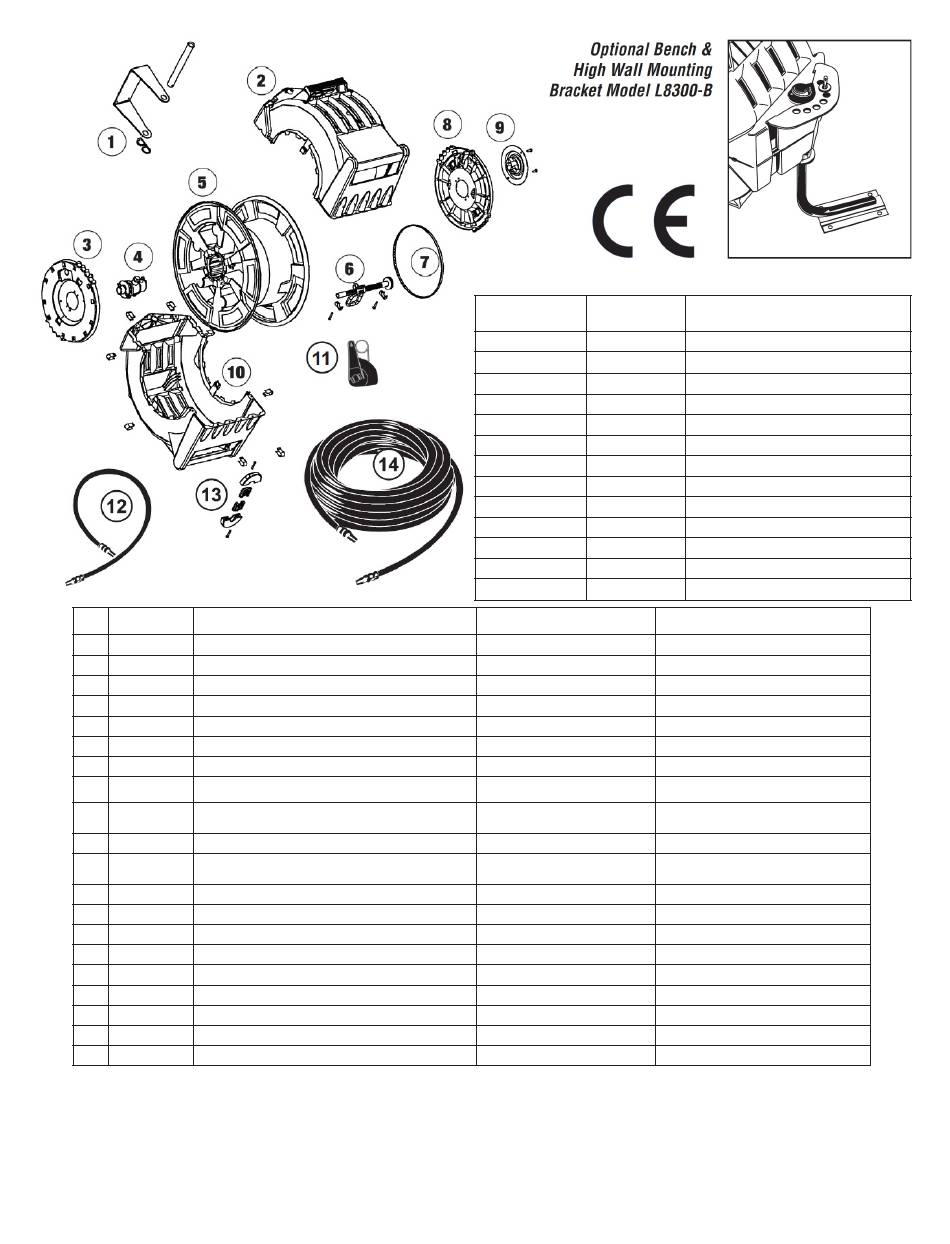

Levelwind Series Replacement Parts
TM
Ref.# Replacement Part# Description
1a L8300-W Wall / Overhead Mounting Bracket
1b L8300-B Bench / High Wall Mounting Bracket
2 RPOOSOOOBK Top Outer Housing Half w/ Trim Ring & Housing Clips - Black
3 RP005002BK Swivel Body Side Plate - Black
4 RP005007-xx Swivel Body - Based on hose inner diameter
5a RP005015 Internal Drum Assembly / Retraction Spring- 50' hose reels
5b RP005016 Internal Drum Assembly / Retraction Spring- 60', 75', 100' hose reels
6a RP005010-14 Layering Device Assembly
6b RP005010-20 Layering Device Assembly
7a RP005012-137 Layering Device Drive Belt
7b RP005012-140 Layering Device Drive Belt
8a RP005004BK Latch Switch Side Plate w/ Latch Spring & Pawl Mechanism- Black
8b RP005004GRNT Latch Switch Side Plate w/ Latch Spring & Pawl Mechanism- Granite
9 RP005003 Tension Cover
10 RPOOSOOlBK Bottom Outer Housing Half w/ Housing Clips - Black
11 RP005018 Latch Spring & Pawl Mechanism
12 Lead In Hoses Lead in or Supply Hose
13 Hose Stoppers Hose Stop
14 Hose Assembly Hose Assembly w/ Hose Stopper
RP005036 112" FNPT x 314"-11112 Male GHT Brass Adaptor
TWO YEAR LIMITED WARRANTY*
LEGACY MANUFACTURING COMPANY ("LEGACY") warrants that this equipment will be free from defects in material and workmanship for a period of two (2) year from the date of
purchase, under normal use. LEGACY'S sole obligation under this warranty is limited to replacing or repairing, free of charge, any equipment that proves to be defective under normal
conditions and use according to the recommendations of LEGACY. To obtain repair or replacement, the equipment must be shipped to a LEGACY authorized Warranty and Service Center
during the warranty period, transportation charges prepaid, with proof of date of purchase. In the event of repair or replacement, the warranty period shall not be extended beyond the
original warranty period.
* If this equipment contains a hose, the hose is warranted for ninety (90) days only. The remaining portions of this equipment are warranted for two (2) year, as described above. While
necessary maintenance or repairs on your Legacy equipment can be performed by any company, we recommend that you use only authorized Legacy service centers. Improper or
incorrectly performed maintenance or repair voids this warranty. Contact us at service@legacymfg.com or www.legacymfg.com for ordering, installation instructions.
WARNING: This product contains one or more chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after
handling.
All manuals and user guides at all-guides.com
Levelwind
Levelwlnd- Series
Model #
L8305 / L8306 / L8310
L8305 / L8306 / L8310
L8305FZ / L8306FZ
L8305N
L8305PU / L8306PU
L8335
L8335
L8335FZ
L8344 / L8346 / L8349
L8344 / L8346 / L8349
L8345 / L8350
L8347
L8347
Needs to be replaced If...
New mounting hardware is needed
An alternative mount is needed
The upper housing is damaged
The side plate is damaged
Internal leaking
The hose does not retract the hose at all
The hose does not retract the hose at all
The layering mechanism doesn't operate
The layering mechanism doesn't operate
The layering mechanism doesn't operate
The layering mechanism doesn't operate
The hose does not lock the desired length
The hose does not lock the desired length
The tension cover is cracked or damaged
The bottom housing is damaged
The hose does not lock the desired length
The hose is damaged or leaks
The hose stopper is not stopping the hose
The hose is damaged or leaks
A replacement water hose adaptor is needed
Series Replacement Lead-In Hoses
TM
Replacement Lead
Hose Part # Replacement Lead Hose Material, Size, & Type
L8305LI PVC 3/8" x 3' Air Hose- Lead In
L8305LI-10 PVC 3/8" x 10' Air Hose- Lead In
L8305FZLI Flexzilla® 3/8" x 5' Air Hose- Lead In
L8305NLI PVC 3/8" x 5' Nitrogen Hose- Lead In
L8305PULI Polyurethane 3/8" x 5' Air Hose- Lead In
L8335LI PVC 1/2" x 3' Air/Water Hose- Lead In
L8335LI-10 PVC 1/2" x 10' Air/Water Hose- Lead In
L8335FZLI Flexzilla® 1/2" x 5' Air/Water Hose- Lead In
L8349LI PVC 5/8" x 5' Cold Water Hose- Lead In
L8349LI-10 PVC 5/8" x 10' Cold Water Hose - Lead In
L8345LI-10 PVC 1/2" x 10' Potable Water Hose- Lead In
L8347LI PVC 5/8" x 5' Hot Water Hose- Lead In
L8347LI-10 PVC 5/8" x 10' Hot Water Hose - Lead In
Corresponding Levelwind
All Levelwind TM Models
All Levelwind Models
TM
All Levelwind Models
TM
All Levelwind Models
TM
See Rpcmt Swivel & Hose Stop Chart
50' Levelwind TM Models
60', 75', 100' Levelwind
L8335 - All Models / L8344 / L8346 / L834 7 / L8349
L8305 - All Models / L8306 - All Models / L8310 All -
Models / L8345 / L8350
L8335- All Models / L8344 / L8346 / L8347 / L8349
L8305 -All Models / L8306 -All Models / L8310 - All
Models I L8345 I L8350
All Levelwind Models
TM
All Levelwind Models
TM
All Levelwind Models
TM
All Levelwind Models
TM
All Levelwind Models
TM
See Replacement Lead Hose Chart
See Replacement Swivel & Hose Stop Chart
See Replacement Hose Assembly Chart
L8335 - All Models / L8344 / L8345 / L8346
TM Series Model #
TM Models
