Rear Panel Description

Inputs The input knobs are used to set up the speaker for use with different microphones and media
players. Start with all inputs turned all the way down. When using an input, turn up the knob until
the Input Overload starts flashing red and then turn it back down until it stops and continue turning
it down one more line.
Power The power switch is used to turn the speaker on and off. When plugged into an power outlet the
speaker will charge in either the on or off position.
AC Light The AC light glows red when the speaker is plugged into a power outlet. When this light is red no
battery power is being used. It is normal for the red AC light to remain on when the Power is in the
Off position.
On Light The On light glows green when the speaker is switched on and ready to be used.
Mic In The Mic In connector is used for plugging in a dynamic microphone. The knob directly above is
used to adapt the speaker for use with different microphones.
Aux In Media players such as CD or MP3 may be connected to the Aux In connectors. The knob directly
above is used to adapt the speaker for use with different music players. The Aux In may also be
connected to the output of a mixing console.
Rec/Line Out This output may be used to feed a recording device in order to record the same sound heard
coming out of the speaker.
PAS 100 Operating Manual

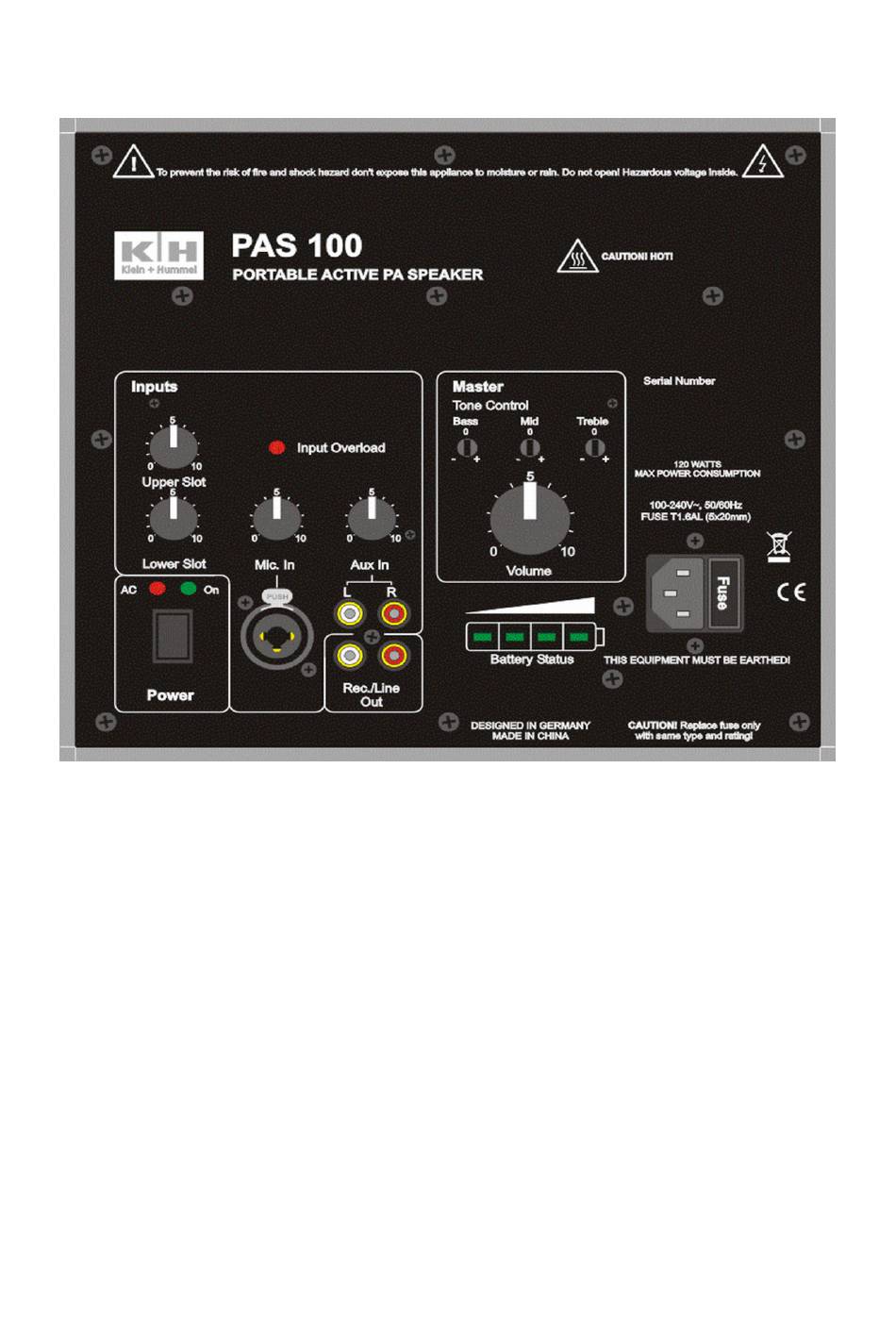

PAS 100 Rear Panel Controls
