Power Fist 8359747 Guide Rapide

FTRY
Electric Engraver
WARNING! Read and understand all instructions before using this tool. Failure to follow all instructions may result in electric
shock, fire and/or personal injury. Keep this manual for the safety warnings and precautions, operating, inspection and maintenance
instructions. When using this tool, basic precautions should always be followed to reduce the risk of personal injury and/or damage to
the equipment. Note that when this manual refers to a part number, it refers to the parts list included.
SPECIFICATIONS
Input power 13W
Power supply 120V / 60 Hz
No-load speed 7,200 RPM
Engraving tip Tungsten carbide tipped steel S2
Max. working time :
30 mins.

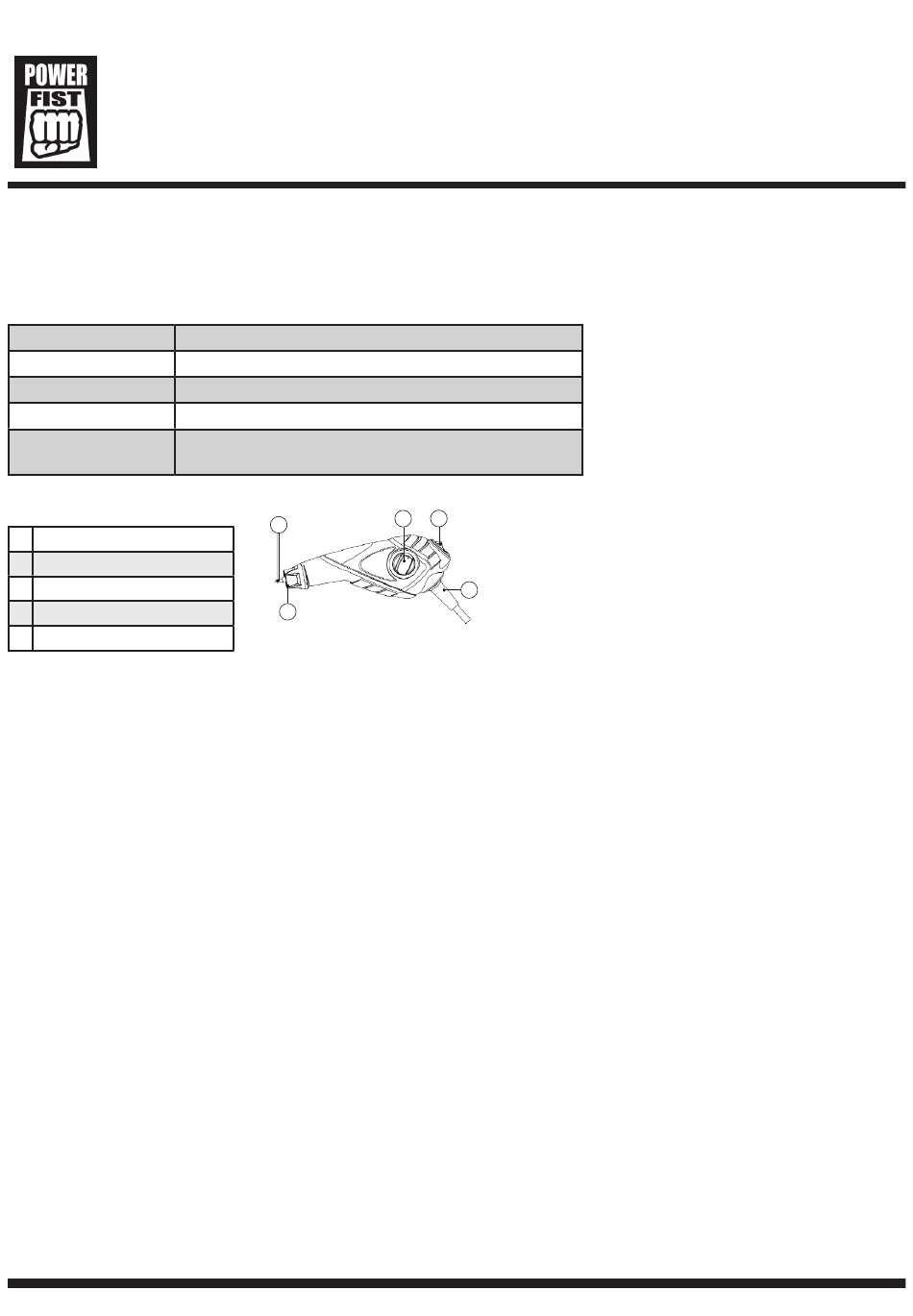

PARTS IDENTIFICATION
1 On/off switch
2 Engraving tip
3 Stroke adjustment dial
4 Tip release valve
5 Power cord
INSTALLING AN ENGRAVER TIP
WARNING: Disconnect the engraver from the power supply before any adjustments or maintenance procedures.
1. Loosen the tip release screw by turning it counter clockwise with a flat head screwdriver.
2. To fit the new engraving tip, insert the tip through the centre of the hole of the engraver, ensuring the tip fully enters the housing. A
new tip should protrude from the end of the housing by approximately 8.5 mm.
3. Tighten the tip release screw fully by rotating in a clockwise direction.
OPERATION
WARNING: Always wear safety glasses when using this tool.
The engraver can be used to permanently mark metal, glass, plastic, wood, ceramics and much more.
1. Before using the engraver you must ensure there is an engraving tip installed.
2. Connect the engraver plug to the power supply and while holding the engraver firmly, push up on the on/off switch with your
thumb.
NOTE:
To turn the tool on, press the small on/off Switch upwards to the (I) position. To turn the tool off, push the on/off Switch down to
the (O) position.
3. Hold the engraver at an angle, like you would hold a pen. Do not press down hard while engraving, use light pressure while
guiding the point over the work to be completed.
ADJUSTING THE DEPTH OF ENGRAVING
1. The stroke adjustment dial located on the side of the engraver controls the stroke length and therefore the
depth of engraving.
2. For a fine mark turn the stroke adjustment dial counter clockwise to position '1'.
3. For a deeper, thicker mark turn the stroke adjustment dial clockwise to position '5'
NOTE:
It is recommended that you practice on scrap material before you start.
For technical questions call: 1-800-665-8685
Indicates operating time at no more than 30 minutes at
rated load followed by a complete cool down of the tool.
2
4
3 1
5
