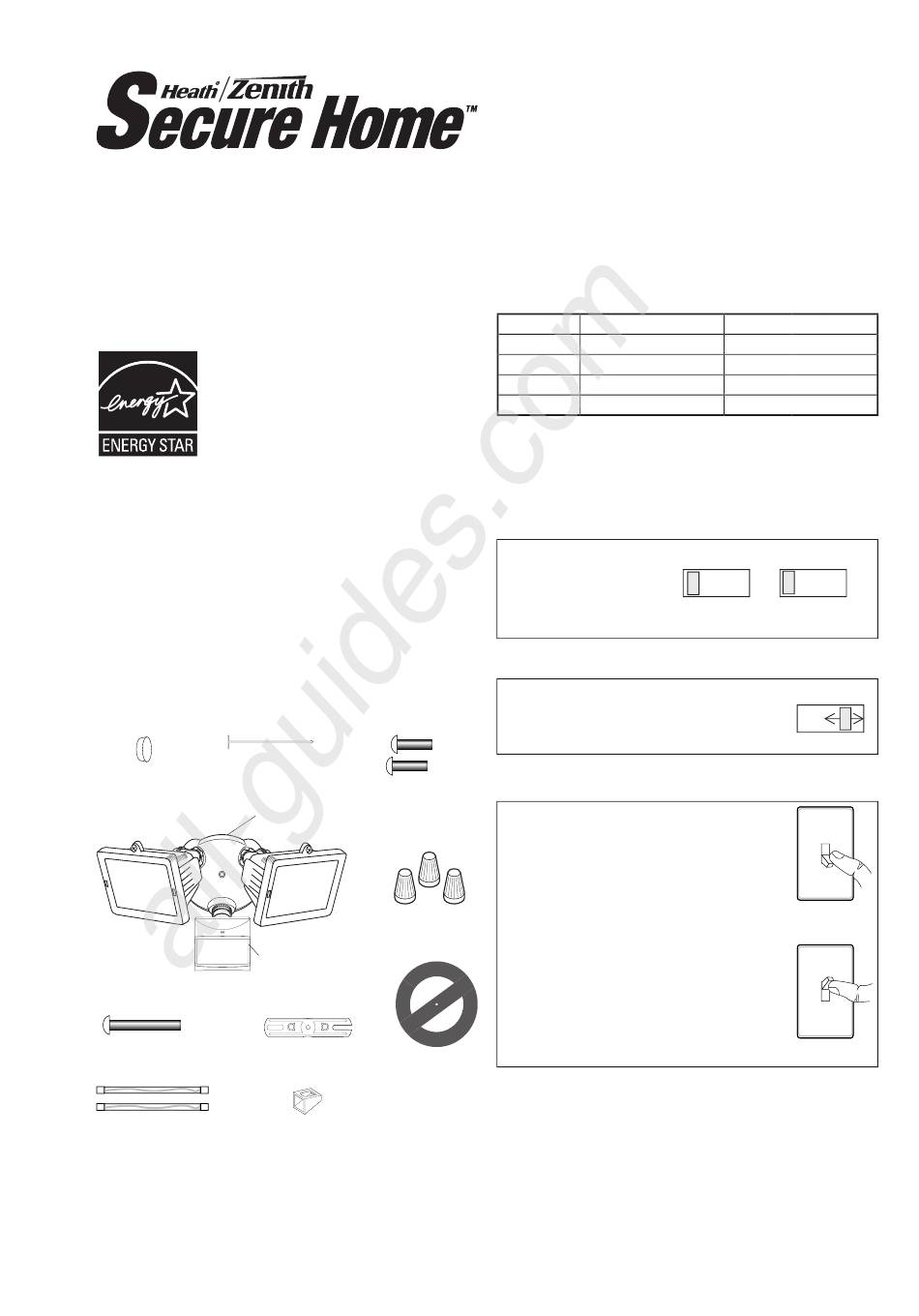

Heath Zenith Secure Home Dual Brite SH-5512 Mode D'emploi

D B Twin Halogen
®
ual rite
Motion Sensing Light
Model SH-5512
Meets the ENERGY STAR
when D
ON-TIME is 1 or 5 minutes and when
used with 120 W Max bulbs.
Features
• D Z ™ Technology.
ual one
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Bulb Saver™ - Extends bulb life by up to 4x standard
bulbs. Lights bulb to full bright in under 2 seconds.
• D B Timer.
®
ual rite
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).
Package Contents
Plastic Hanger
Rubber Plug
Cover
Plate
Sensor
Light Control
Mounting Bolt
Mounting Strap
2 Halogen Bulbs Light Shield
© 2008 HeathCo LLC
All manuals and user guides at all-guides.com
guidelines
®
B function is off and
®
ual rite
6 Mounting
Screws (3 sizes)
3 Wire
Connectors
Gasket
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
OPERATION
Mode: On-Time
Test
5 Seconds
Auto
1, 5, or 20 Min
Manual
To Dawn*
Accent
3, 6 Hr, to Dawn
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
TEST
Put ON-TIME switch
on the sensor bottom
to TEST and the D -
ual
B switch OFF.
®
rite
AUTO
Put the ON-TIME switch in the 1, 5,
or 20 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sensor
to AUTO.
Flip the light switch off for one second
then back on to toggle between AUTO
and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 20
position.
Works: Day Night
x x
x
x
x
/ minutes for
1
2
ON-TIME D B
®
ual rite
TEST 1 5 20 Off 3 6 Dusk to
Dawn
ON-TIME
TEST 1 5 20
1 Second OFF
then...
... back on.
