S+S Regeltechnik HYGRASGARD RPFTF 20 - Modbus - T3 Notice D'instruction page 8

G U
HYGRASGARD

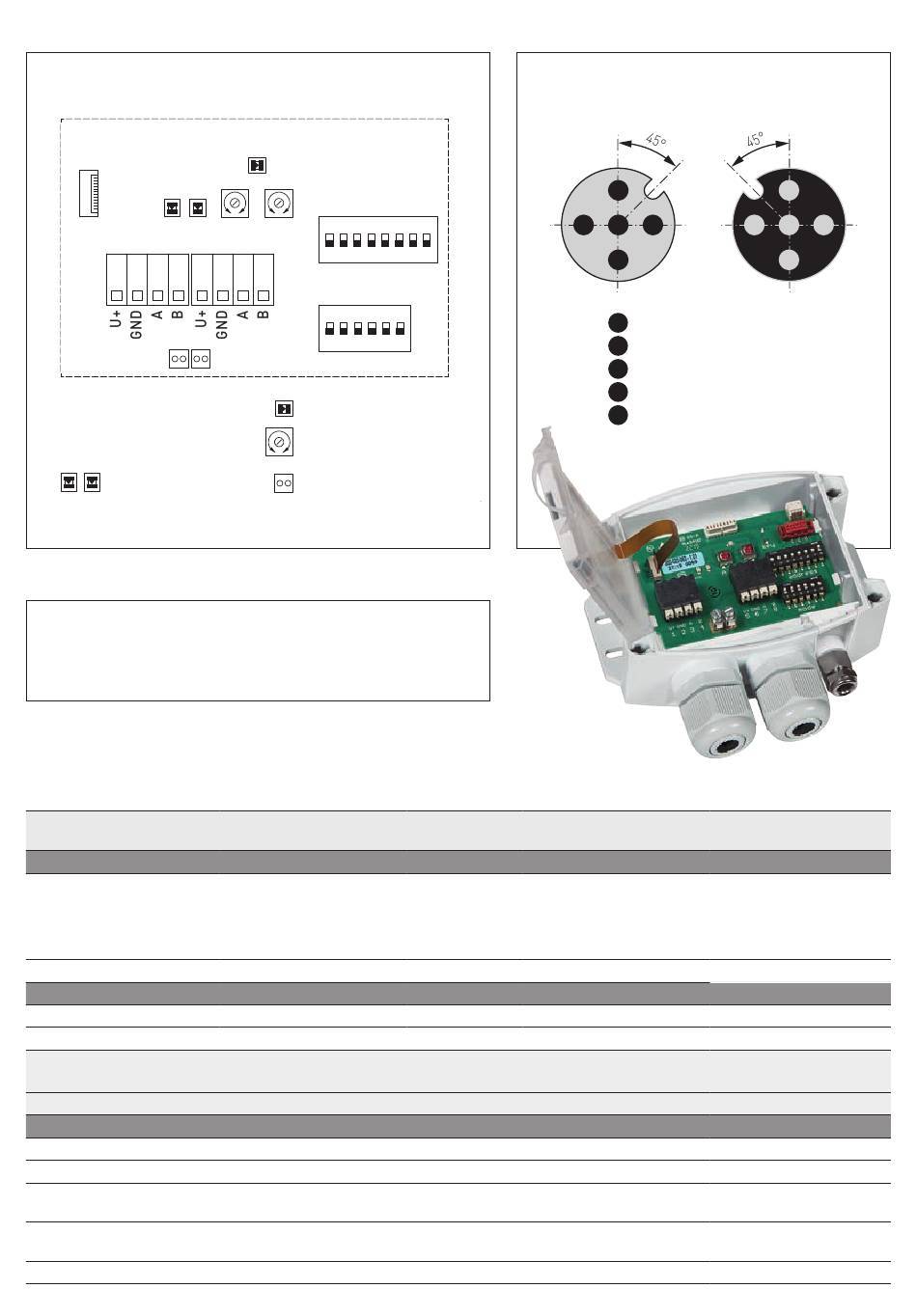

Schematic diagram
Plug for
display
1 2 3 4 5 6 7 8
SHD
DIP A: Bus address
DIP B: Bus parameters
(Baud rate, parity...)
Telegram indicator
Reception (LED green)
Error (LED red)
Manual offset adjustment
The sensors are pre-set and calibrated at the factory.
For subsequent adjustment of the measured value,
there are two offset potentiometers (A and B) available.
Range of adjustment approx. ± 5 °C ⁄ ± 9 °F (A) or ± 10 % RH (B).
Type ⁄ WG01
RPFTF - Modbus - T3
R P F T F - M o d b u s -T 3
R P F T F - M o d b u s -T 3 LCD
RPFTF 20 - Modbus - T3
R P F T F - 2 0 - M o d b u s -T 3
R P F T F - 2 0 - M o d b u s -T 3 LCD
Extra charge: per running metre of connecting lead (PVC)
Cable connection with M12 connector according to DIN EN 61076-2-101
Note: System of units SI (default) or imperial (can be changed via Modbus).
ACCESSORIES
KA2 -Modbus Communication adapter (USB/RS485) for system connection
LA -Modbus Line termination device (with terminating resistor) as an active bus termination
SF-M Metal sinter filter, Ø 16 mm / 0.63 in, L = 32 mm / 1.26 in, exchangeable,
stainless steel l V4A (1.4404)
SF-K Plastic sinter filter, Ø 16 mm / 0.63 in, L = 35 mm/ 1.38 in, exchangeable
(included in the scope of delivery)
MF-16-K Mounting flange plastic (optional)
®
RPFTF (20) - Modbus-T3
HYGRASGARD
ON
A offset B
1 2 3 4 5 6 7 8
address
ON
DIP B
1 2 3 4 5 6
mode
SHD
LED (internal status)
Offset correction
Shielding
Measuring Range ⁄ Readout
Humidity (switchable)
0...100 % RH (default)
0...80 g ⁄ kg (MV)
3
0...80 g ⁄ m (AH)
0...85 kJ ⁄ kg (ENT.)
0...+50 °C (DP)
(5 x as above )
(5 x as above )
(5 x as above )
® Pin assignment
xx - Modbus - T3
(M12)
DIP A
Output
Temperature
–35...+80 °C / Modbus
–31...+176 °F
(1 x as above ) Modbus
(1 x as above ) Modbus
(1 x as above ) Modbus
8
MALE
2
3 5 1
4
1
+UB
2
Modbus A
3
–UB GND
4
Modbus B
5
Shield
Item No.
Display
(± 2.0 %)
1201- 6246-1000 -000
■ 1201- 6246- 1400- 000
(± 1.8 %)
1201- 6246- 1000-001
■ 1201- 6246- 1400- 001
1906- 1200- 0000-100
1801-1211- 1101- 100
7000-005 0-2200- 100
7000- 0050- 2310- 000
7100- 0030-0000- 000
Rev. Data - V40
®
HYGRASGARD
xx - Modbus - T3
FEMALE
2
1 5 3
4
on request
on request
