Installation and Maintenance Instructions
1.8" (46 mm)
TO REMOVE COVER
1.8" (46 mm)
TO REMOVE COVER
5.
Drill holes at the scribed drill-position marks to accommodate the
1/2" diameter bolts.
6.
Secure the bracket to the mounting surface with the 1/2" diameter
hex-head bolts, lockwashers, and hex nuts.
7.
Reattach the speaker to the mounting bracket with the two
1/2"-13 hex-head bolts, flat washers, and lockwashers.
8.
Position the speaker to obtain the required sound coverage, then
tighten the bolts securely.
Models 304X and 314X Explosion-Proof Amplified Speakers
10

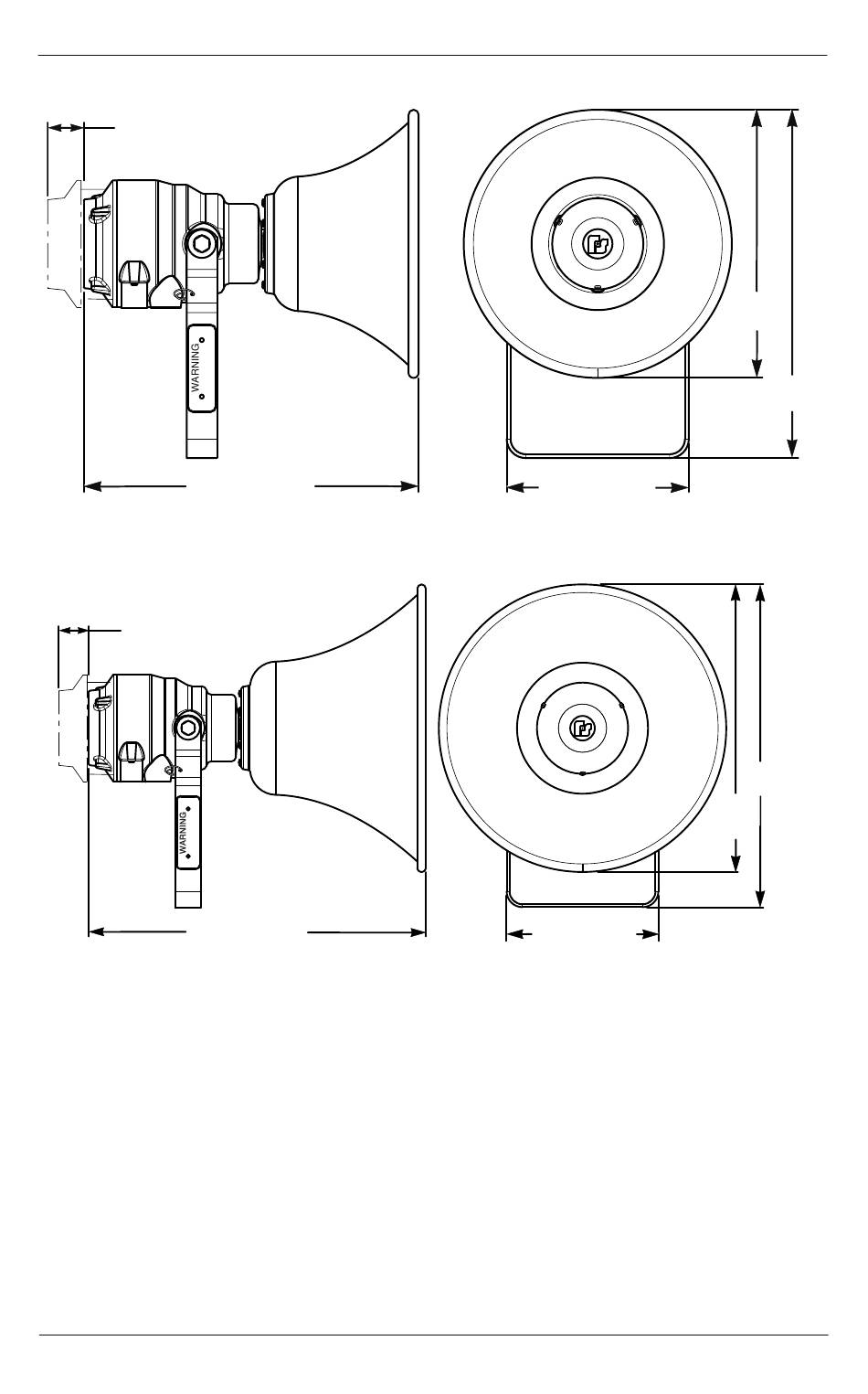

Figure 2 Dimensions of the Model 304X
16.3" (414 mm)
Figure 3 Dimensions of the Model 314X
19.5" (496 mm)
8.9" (226 mm)
(425 mm)
8.9" (226 mm)
13.1"
(333 mm)
17.0"
(432 mm)
290A5200
18.8"
(478 mm)
16.7"
290A5201
