Copper
Ethernet
3G/4G Modem
SIM card
access port
All Kona Gateway module interconnect is located on the bottom facing bulkhead. The RF
connectors are water proof while un-mated but all other connectors must be terminated with
mating connectors or covered with the supplied protective cap when not in use in order to be
water tight. Connector types and their mating connectors are listed in Table 2.
Table 2: Kona Macro Gateway Interface Connector Types
Interface Connector Type
LoRa Antenna
N-Type female
Ports
Kona Macro User Guide
TEKTELIC Communications Inc.

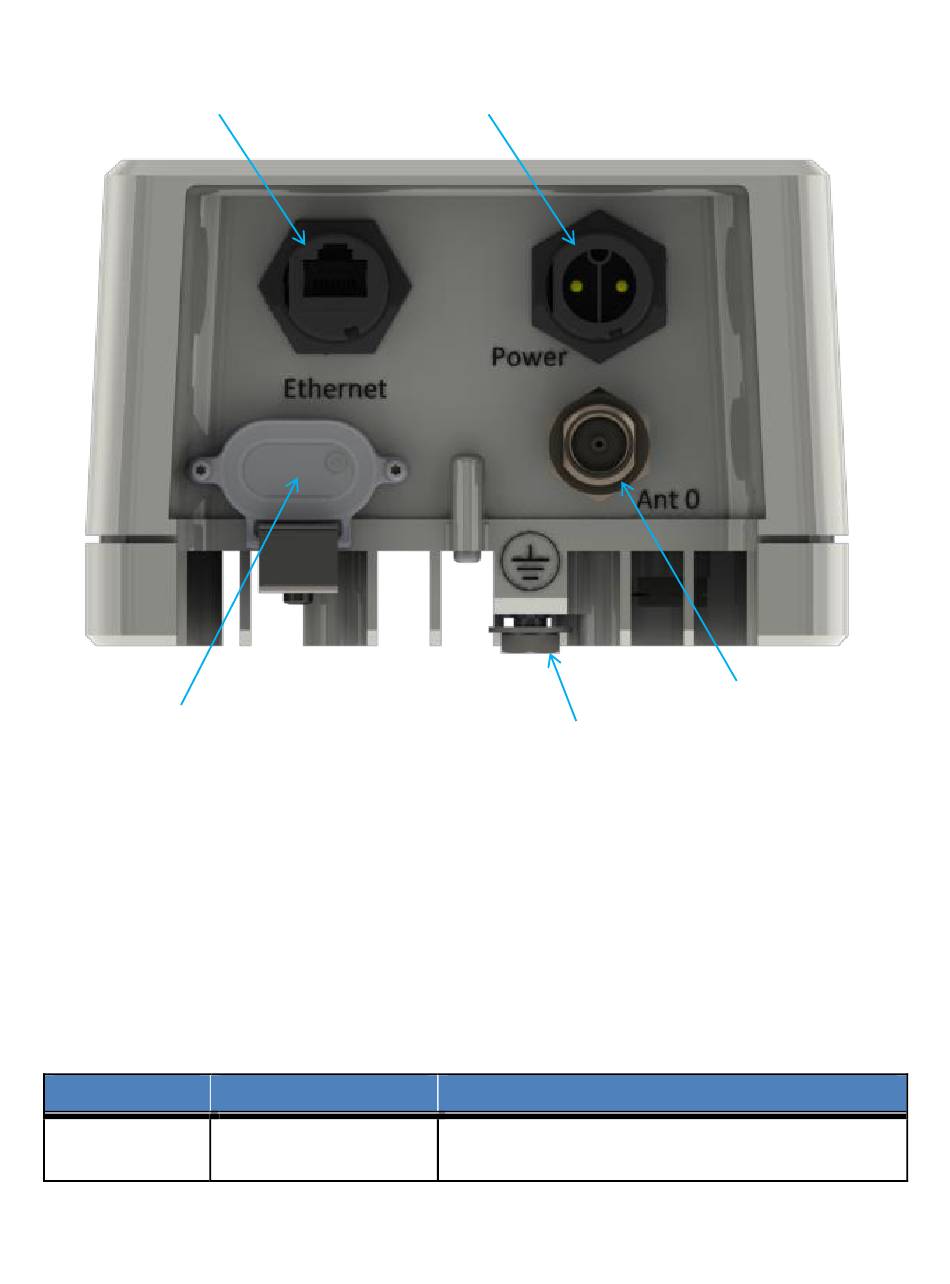

Figure 2: Kona Macro Gateway Bulkhead Layout
DC Power
2 pin CPC
Protective
Earth
Ground
Mating Connector
Industry standard N-Type male
T0005158_UG
Confidential
LoRa RF
Antenna
