Mounting
screw location
Mounting
screw location

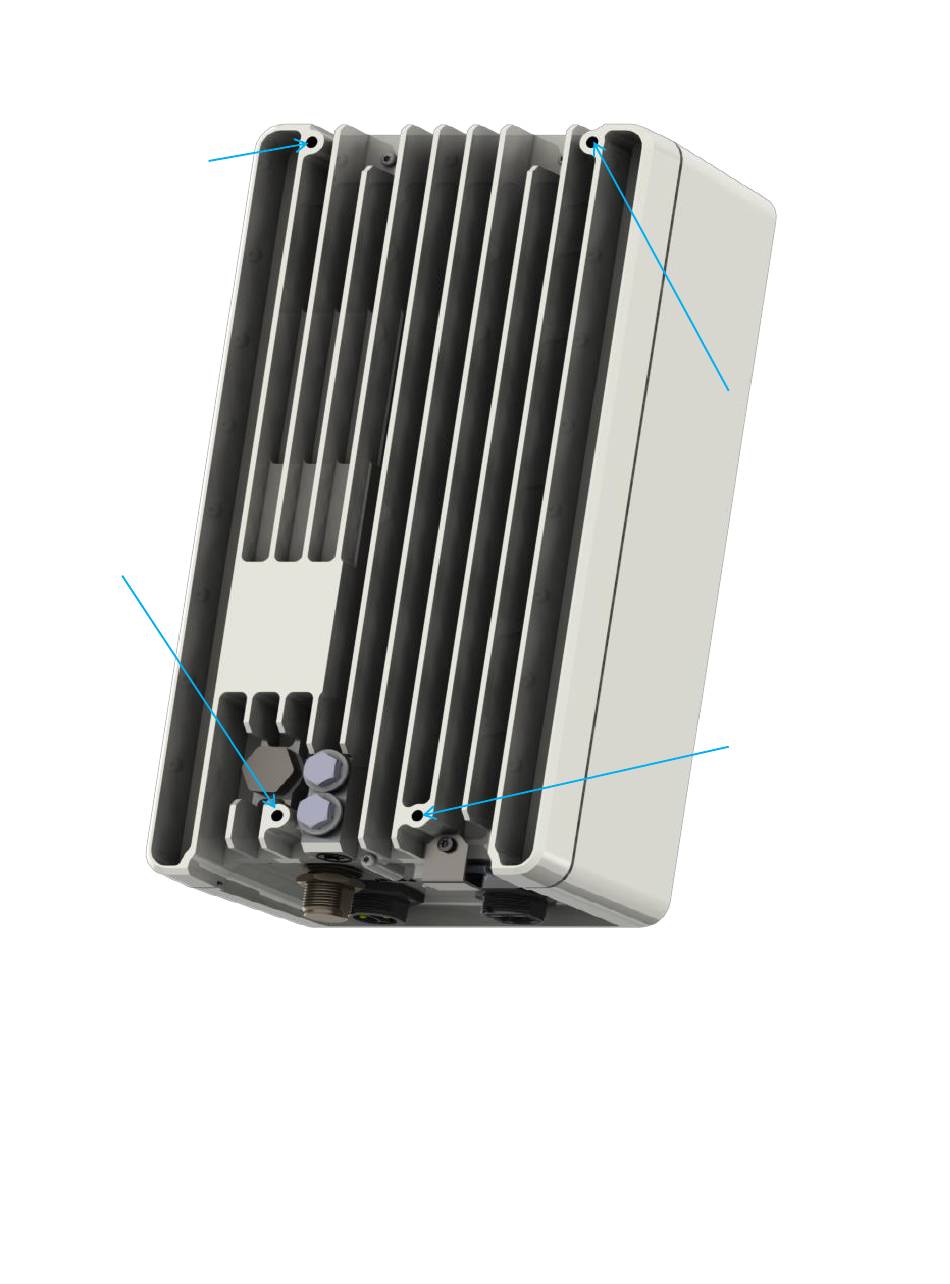

Figure 3: Kona Macro Gateway Mounting Bracket Attachment Screw Locations
The mounting bracket is a single part that bolts to the back surface of the Gateway using supplied
hardware (four M6x1.0 - 14 mm bolts with flat and star lock washers) as illustrated in Figure 4.
The Gateway module must be oriented with the connector bulkhead facing down, towards earth.
Kona Macro User Guide
TEKTELIC Communications Inc.
T0005158_UG
Confidential
Mounting
screw location
Mounting
screw location
