Steelcase media:scape Instructions De Montage page 8

®
3.

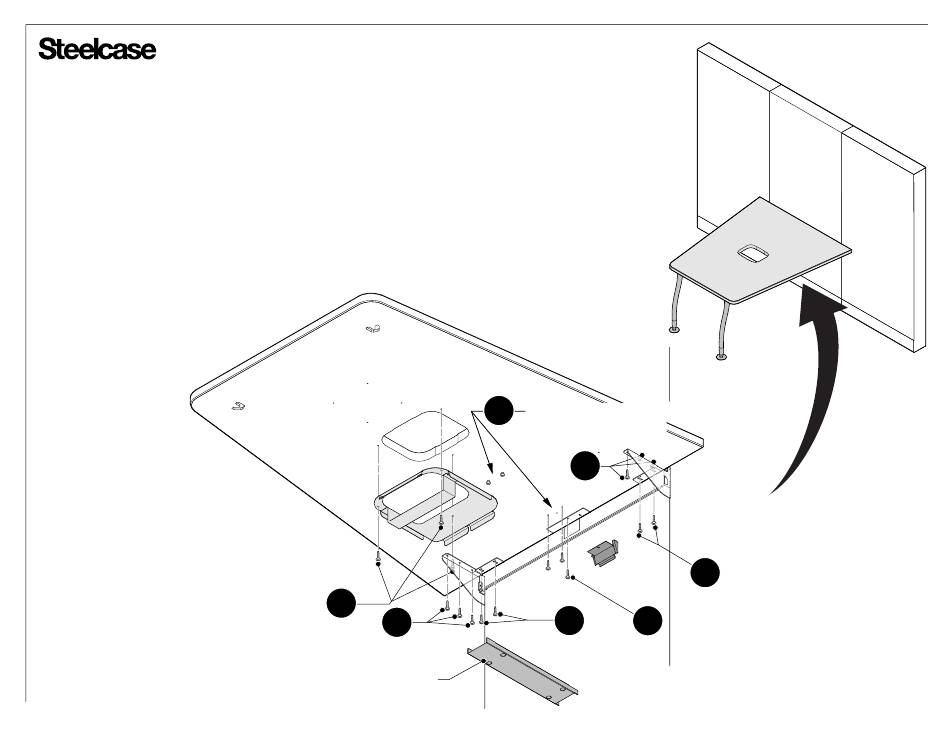

To ensure proper centering, install the first screw through
the center slotted opening on the support bracket into the pilot
hole provided in the worksurface (3a). Install (10) additional
screws as shown (3b).
4.
Install media well mounting bracket to the underside of
the worksurface using (3) screws into pilot holes provided (4a).
Install four (4) screws into pre-drilled holes under the
worksurface with screw heads protruding about ¼ inch for
securing the wireway channel (4b) later in step 17.
All manuals and user guides at all-guides.com
4a
3b
NOTE: Wireway cover will be
installed after cables are routed
(see step 17).
4b
Install so that heads protrude
¼ inch from worksurface.
3b
3b 3a
VIEW FROM UNDERNEATH
3b
Page 8 of 46
