• Loop Link is a communications interface that is needed for programming
PRetrans 6334.

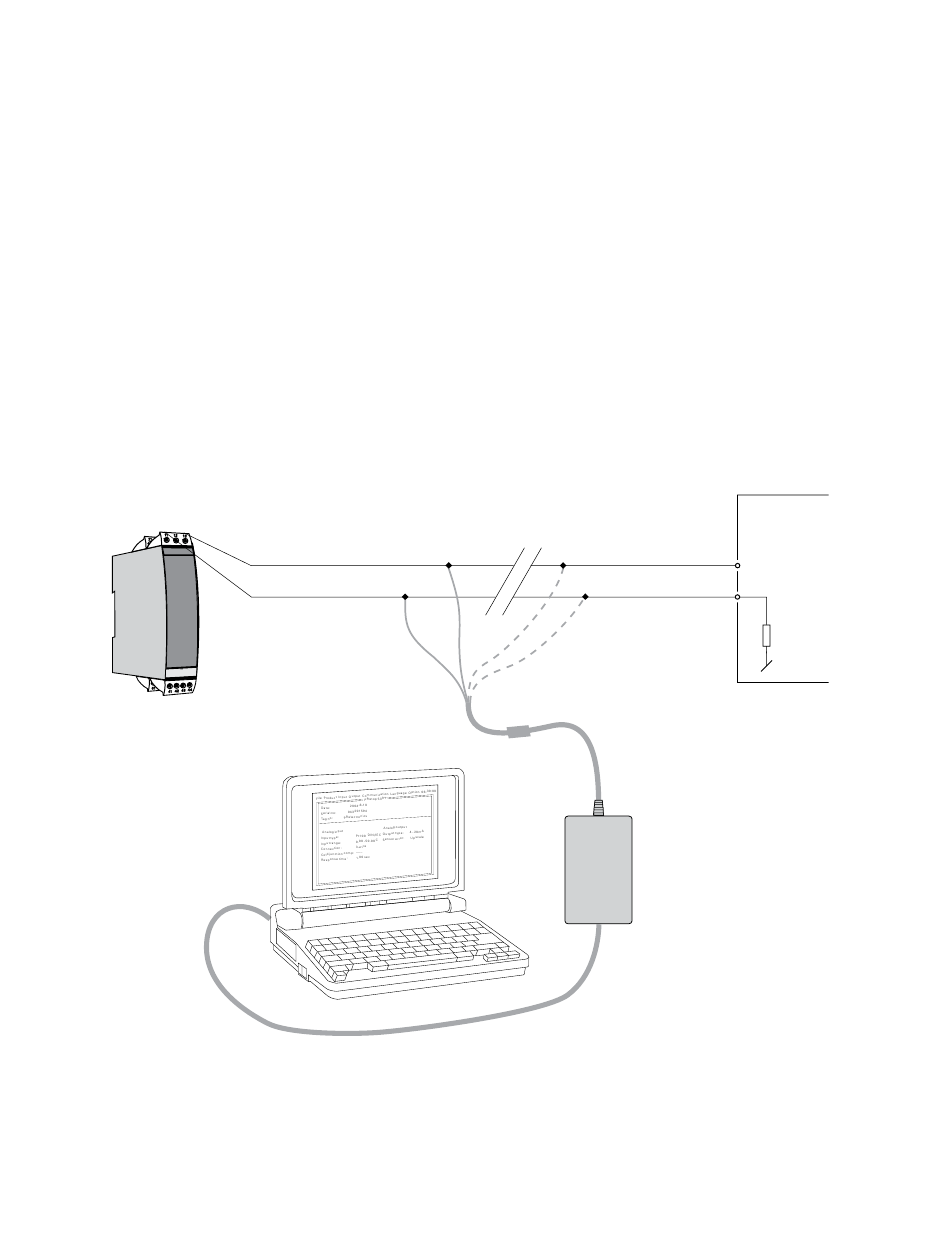

• For programming please refer to the drawing below and the help functions in
PReset.
• When communicating with non-installed modules, connectors 11, 12, 13
(channel 1) and 21, 22, 23 (channel 2) can be dismantled in the safe area to
connect the terminals of the communications interface to the pins.
• Loop link is not approved for communication with modules installed in
harzard ous (Ex) areas
Order: loop link
1 3 ( 2 3 )
1 1 ( 2 1 )
P R e t r a n s 6 3 3 4
All manuals and user guides at all-guides.com
PROGRAMMING
Red
Black
Connector
6334V105
Disconnect
Yellow
*
Green
*
Loop
5909 - USB
Link
5905 - RS232
Receiving
equipment
+Vsupply
Input
* Connected only for
on-line programming
23
