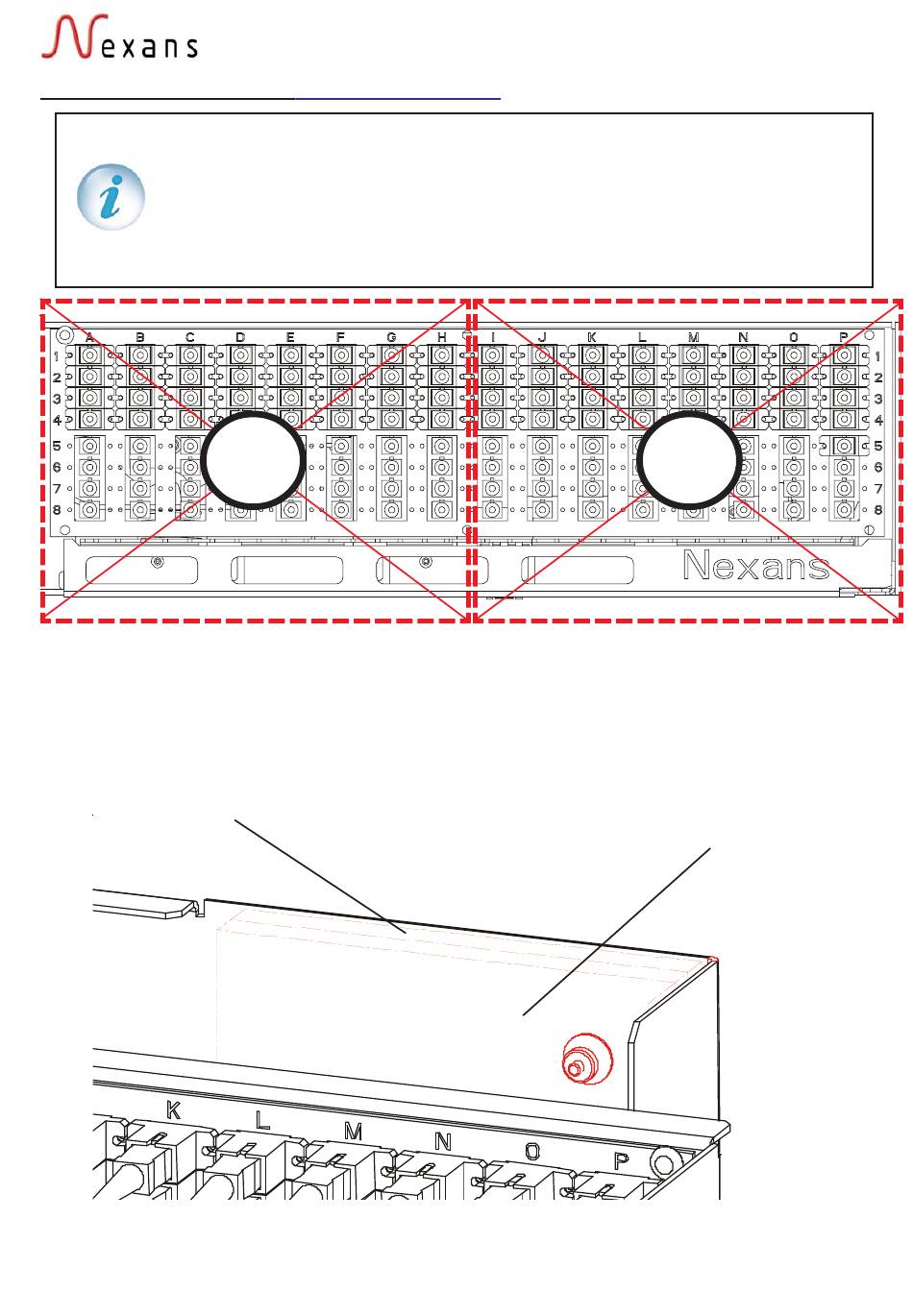

RÉPARTITION DES PIGTAILS /
Le MEC 128 peut recevoir jusqu'à 4 coupleurs d'un coefficient de couplage
de 32 au maximum.
Cette notice rend compte de l'utilisation d'un MEC 128 équipé avec deux
coupleurs 1 vers 64 chacun.
The MEC 128 can hold up to 4 couplers with a maximum coupler rate of 1 to 32.
This manual will use a MEC 128 tray equipped with 2 couplers, 1 to 64 each.
Les Pigtails A1 jusqu'à H8 inclus correspon-
dent aux branches du coupleur C1.
Pigtails A1 to H8 included connect to Coupler
Coupleur,
tronc C1
Coupler, Trunk
C1
20189982
25, avenue Jean Jaurès - BP 11 - 08330 - Vrigne-aux-Bois - FRANCE
Téléphone :+33 (0) 3.24.52.61.61
PIGTAIL ASSIGNEMENT
C1
C1.
NEXANS INTERFACE
Les Pigtails I1 jusqu'à P8 inclus correspon-
dent aux branches du coupleur C2.
Pigtails I1 to P8 included connect to Coupler
Fax : +33 (0) 3.24.52.61.66
MEC 128
C2
C2.
Coupleur
tronc, C2
Coupler, Trunk
C2
ABS1242
6/16
