Kohler K-792 Guide page 2

18"
(45.7 cm)
36"
(91.4 cm)
1-7/8"
(4.8 cm)
3-1/4"
(8.3 cm)

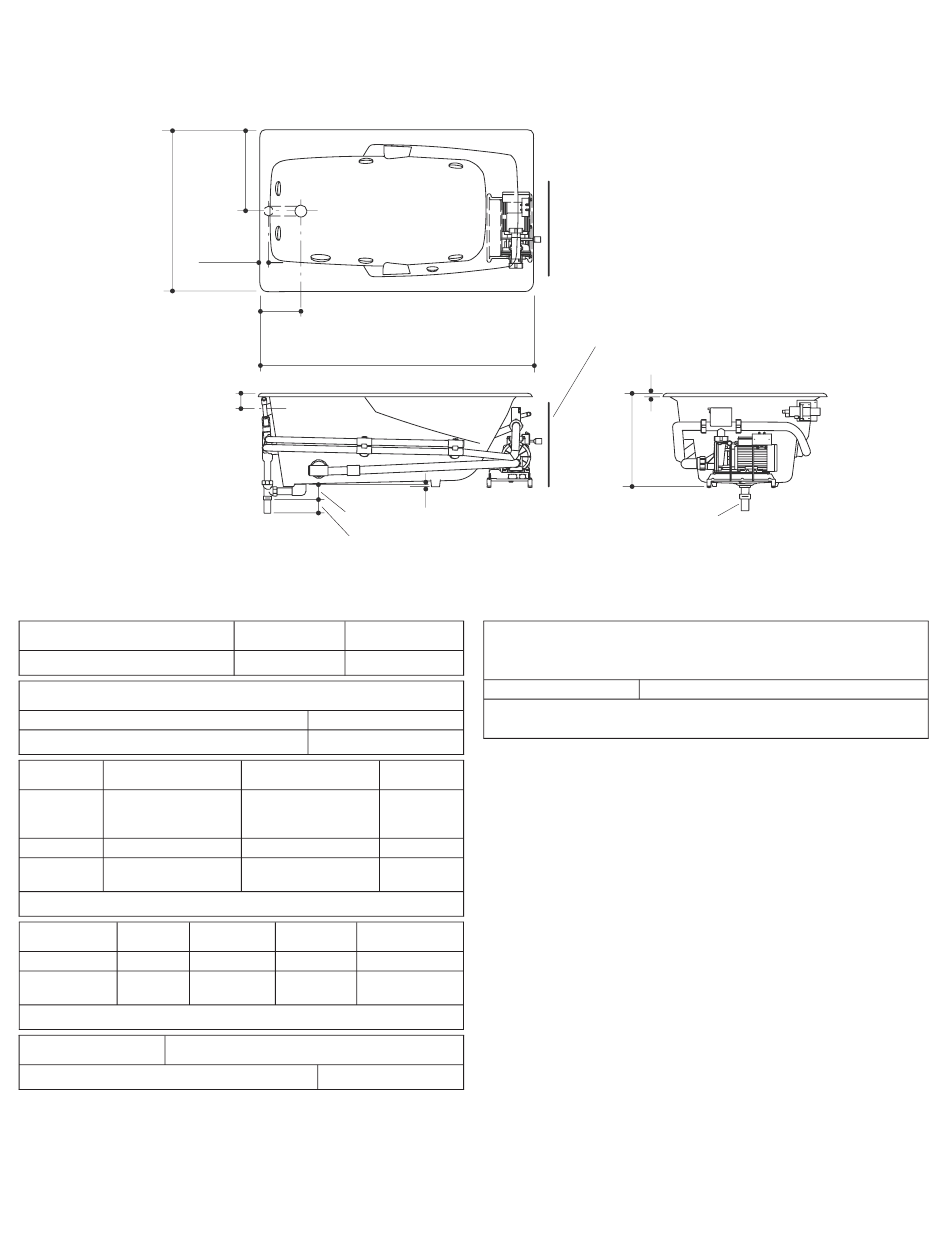

Product Information
With neck jets
Without neck jets
Required accessories:
Jet trim kit
Grip rails (pair)
Fixture*: Basin area
Bathing 43" (109.2 cm) x
well 19" (48.3 cm)
Water depth
To 15" (38.1 cm)
overflow
* Approximate measurements for comparison only.
Product Pump Heater
Neckjets 2 hp 1.5 kW
w/o 1.5 hp 1.5 kW
Neckjets
* Approximate measurements for comparison only.
Drop-in cut-out 58-1/2" (148.6 cm) x 34-1/2" (87.6 cm)
Cutout template
1018963-1-C
All manuals and user guides at all-guides.com
K-792-N1
8-7/8"
(22.5 cm)
60" (152.4 cm)
2-7/8" (7.3 cm)
3" (7.6 cm)
K-792-N1 shown
K-792-H2 not shown
K-9696
K-9623
Top area Weight
54" (137.2 cm) x 420 lbs
30" (76.2 cm) (109.5
kg)
Capacity
62 gal (234.7 L)
V A*
240 15
240 11
K-584 template
No change in measurements if connected with drain
illustrated. (K-7161-AF or K-7161M-AF)
Pump/Control Access
34" (86.4 cm) W x 15" (38.1 cm) H
20-3/8"
(51.8 cm)
1/4" (6 mm)
Required Electrical Service
Dedicated circuit required, protected with a Class A
Ground-Fault Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit-Breaker (ELCB):
Pump/control
Locate the outlet behind the whirlpool and within 24"
(61 cm) of the pump.
Installation Notes
Install this product according to the installation guide.
Cast iron whirlpools are extremely heavy, making some drop-in
installations difficult. Splitting the deck/surround is recommended
if installing into a deck.
Floor support under whirlpool must provide for a minimum of
1500 lbs (680.4 kg).
Fixture conforms to ASME Standard A112.19.1M. All dimensions
are nominal.
2
3/4" (1.9 cm)
1-1/2" OD
208-240 V, 20 A, 50/60 Hz
Kohler Co.
