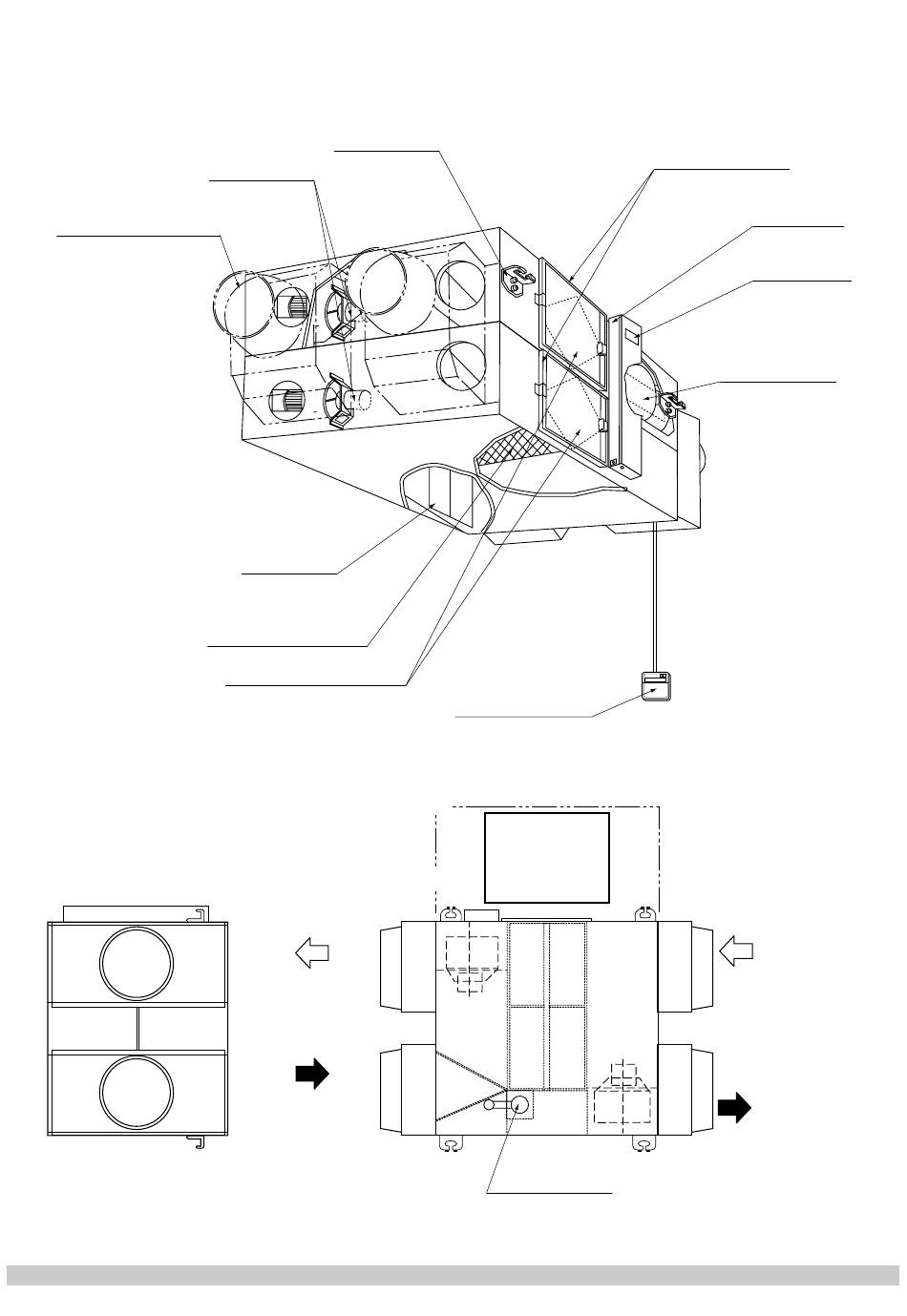

MODELS
(2)
Duct connection flange
2
VAM 1500F VAM 2000F
(1)
(3)
Exhaust fan
(5)
Damper
(4)
Air filter (Long life filter)
(8)
Heat exchange elements
(17)
SA
(Supply air)
[Feed air
to room]
(16)
RA
(Return air)
[Exhaust air
from room]
Ceiling hook
(11)
Remote controller
(Option parts)
(15)
Maintenance
space for the air
filters, the heat
exchange elements
and Switch box
(12)
Damper motor
(7)
Maintenance cover
(6)
Switch box
(9)
Name plate
(10)
Air supply fan
(14)
OA
(Outdoor air)
[Fresh air
from outdoor]
(13)
EA
(Exhaust air)
[Exhaust air
to outdoor]
