[31] RESET button
Enables the user to restart the instrument if there is any irregularity when
operating.
[32] External 12 V power supply input
[33] Loudspeaker
[34] Fan
[35] SCART connector
[36] Transport belt hook
Page 28
34
35
36

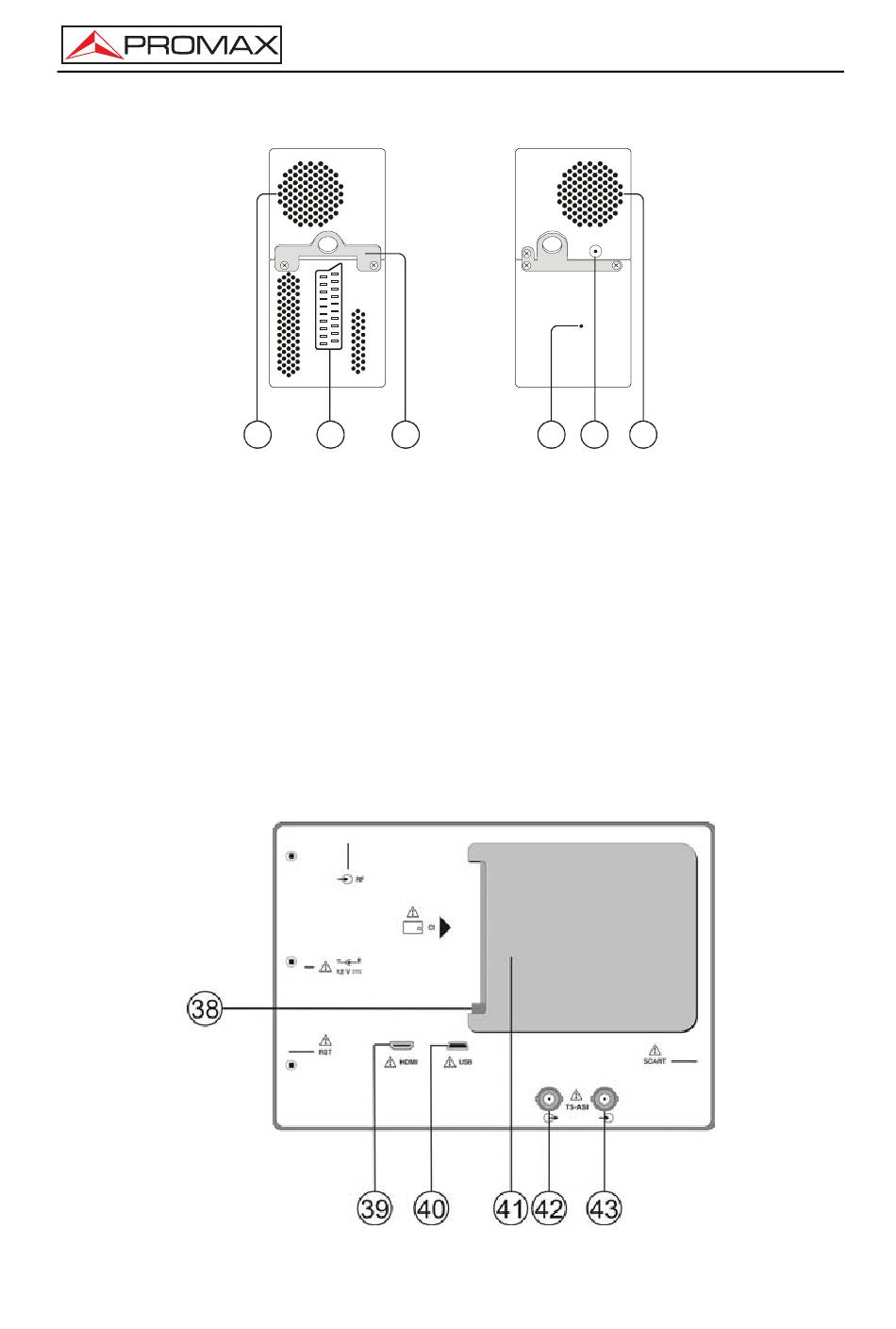

Figure 7.- Lateral panel elements.
Figure 8.- Rear panel view.
USER'S MANUAL. TV EXPLORER HD +
31
32
33
12/2011
