Other terminals

Audio output terminals
• Audio from the equipment connected to the audio input
terminals (COMPONENT/VIDEO) or PC audio input
terminal is output. Connect to the audio input terminals of
the connected equipment using a commercially available
audio cable (RCA).
• The audio output varies depending on the input mode
selection.
PC analog RGB output terminal
Video signals from the PC analog RGB input terminal or
the PC analog RGB input terminals (BNC) can be output
to external device. Use this terminal when you connect
multiple monitors in a daisy chain via PC analog signal cables
(commercially available). (See the description on the right.)
Video output terminal
Video signals from the composite video input terminals can be
output to external device. Connect to the equipment using a
commercially available video cable (BNC).
RS-232C input terminal
You can control the monitor from a PC by connecting a
commercially available RS-232 straight cable between this
terminal and the PC. (See Operation guide.)

Connecting external speakers

Be sure to use external speakers with an impedance of 6 to
8 Ω and a rated input of at least 7 W.
(1)
1. While pushing the tab, insert the tip of the cable.
2. Release the tab.
TIPS
• Be sure to connect the + and - terminals and the left and
right speakers properly.
• Avoid short circuiting the + and - terminals.
(2)
Connecting Peripheral Equipment

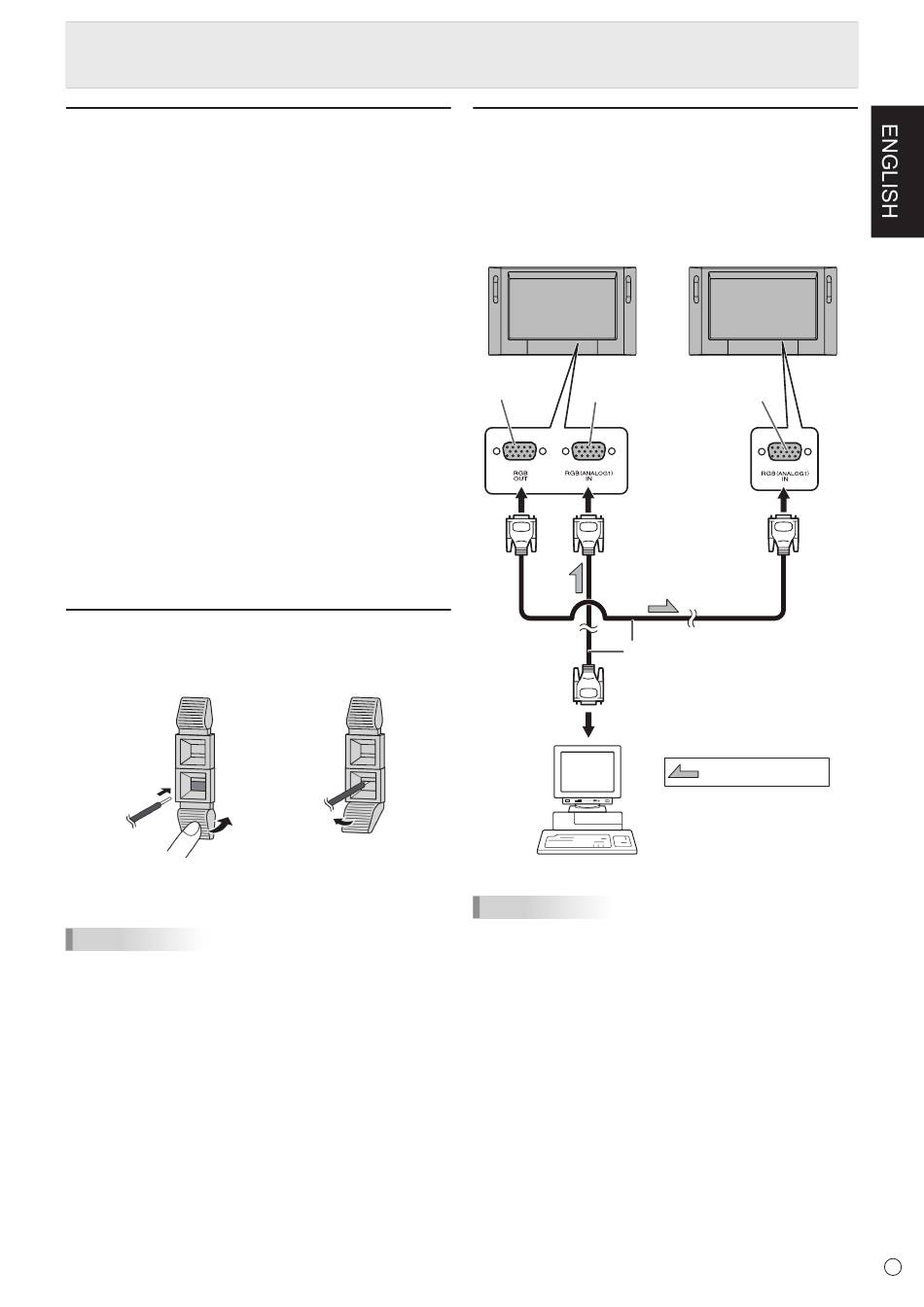

Connecting multiple monitors

You can connect multiple monitors (up to 4 monitors) in a
daisy chain by using the PC analog RGB input terminal or
the PC analog RGB input terminals (BNC) and the PC analog
RGB output terminal.
Connection example
First monitor
PC analog
PC analog
RGB output
RGB input
terminal
terminal
PC analog signal cables
(commercially available)
To PC analog RGB output terminal
TIPS
• Audio signals cannot be transmitted when multiple monitors
are connected in a daisy chain. Connect the audio output
terminals to an external audio amplifier (commercially
available).
• The length of the signal cables or surrounding environment
may affect the image quality.
Second monitor
PC analog
RGB input
terminal
shows the signal flow
