Product description
TRANSMITTER
4
5
6

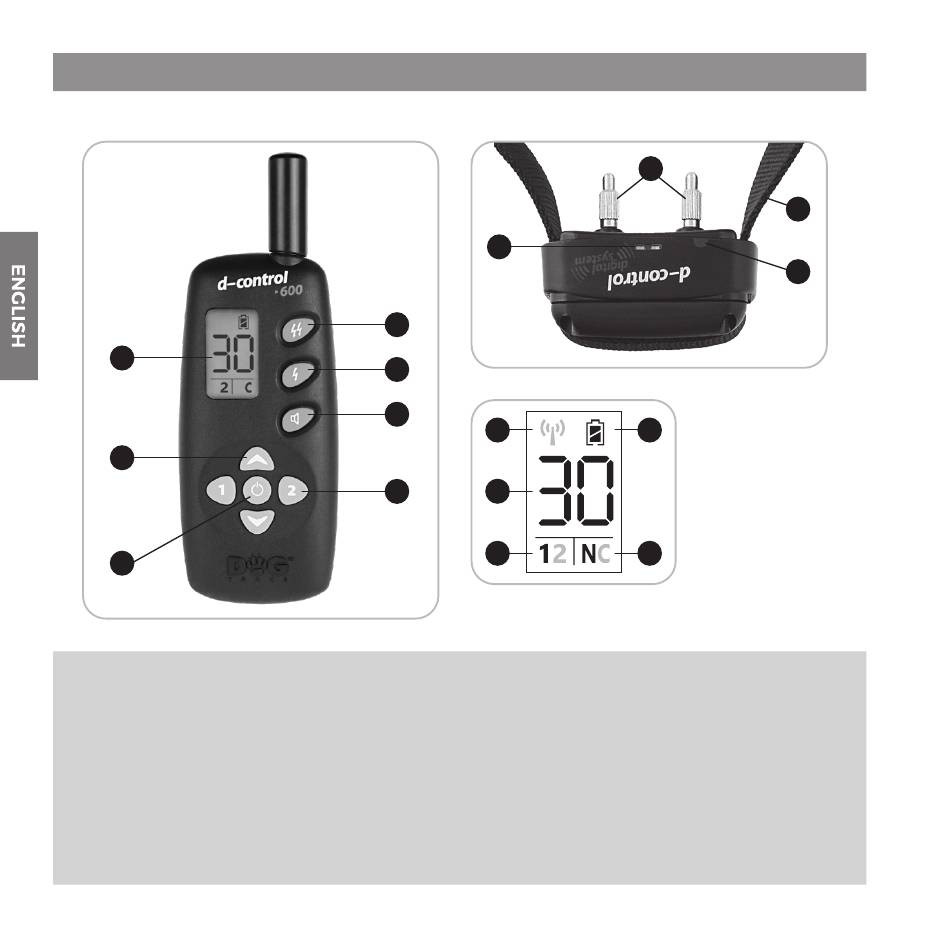

TRANSMITTER – 1 – button for booster, 2 – button for stimulation impulse, 3 – button for
audible beep tone, 4 – LCD panel, 5 – buttons for stimulation level selection, 6 – button for
power ON/OFF, 7 – buttons for dog selection 1 or 2
RECEIVER WITH THE STRAP – 1 – strap, 2 – contact points, 3 – LED indicators, 4 – target (half-
round red indicator)
LCD PANEL – DISPLAY – 1 – transmission indicator, 2 – battery power indicator, 3 – indicator
of stimulation level, 4 – indicator of dog selection 1 or 2, 5 – indicator of nick (N) or continuous
(C) stimulation impuls
